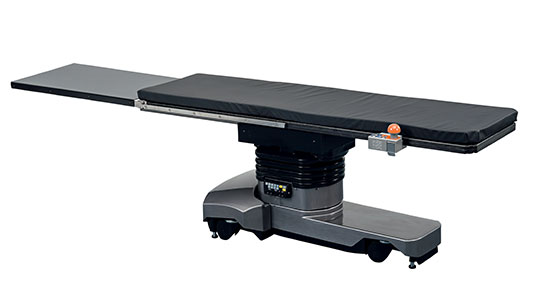

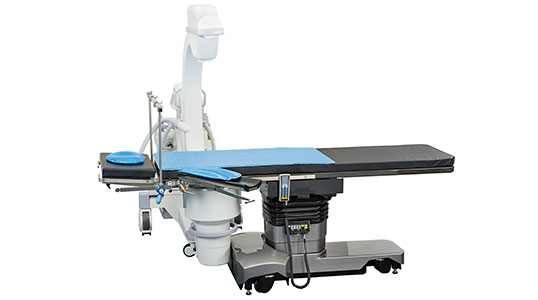

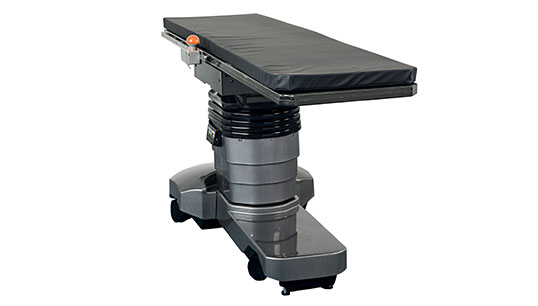

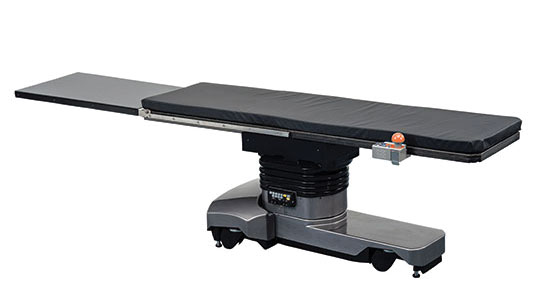

CMAX™ X-Ray Image-Guided Surgical Table

Large, unobstructed, 360° radiolucent imaging surface
Intuitive wireless control via Bluetooth-capable joystick control
Free-floating carbon fiber tabletop allows smooth, precise movements for fluoroscopy
Weight capacity up to 507 lbs (230 kg) accommodates a growing patient population
Easy adaptation of table extensions and specialty accessories for more effortless patient positioning

REQUEST A QUOTE

Shop Now

Product Overview

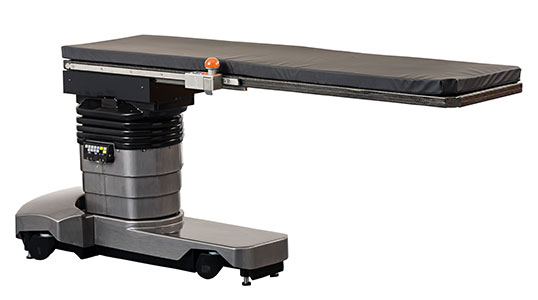

The CMAX X-Ray Image-Guided surgical table is Hybrid Operating Room (OR) technology for the General OR, and is a premier choice for hospital and ambulatory surgery centers looking to expand image-guided and navigational capabilities. It is well suited for vascular & endovascular surgery, cardiac and thoracic surgery, but is also a highly desirable solution for neuro and neuro-spine surgery, ENT, orthopedics and ortho-spine, pain management, and other image-guided and surgical navigation procedures.

How the CMAX X-Ray Image-Guided Surgical Table Works

The CMAX X-Ray is a mobile, non-integrated surgical table that brings the capabilities of image guidance and surgical navigation from a hybrid OR to the general OR. The table offers superior flexibility and convenience for surgeons and staff, to meet the increasing demand for image-guided surgeries and expectations of surgeons versed in image-guided surgical approaches.

The CMAX X-Ray table has an array of leading features that sets it apart from others on the market. View the Table Specifications section below for further electrical and mechanical details.

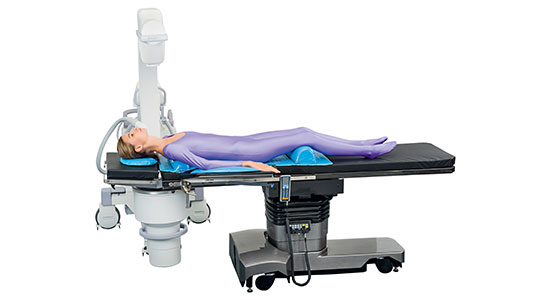

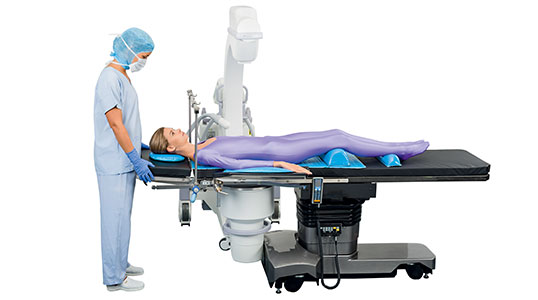

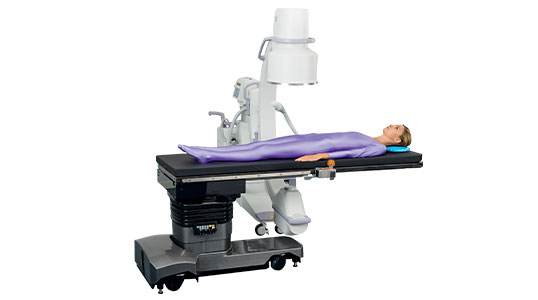

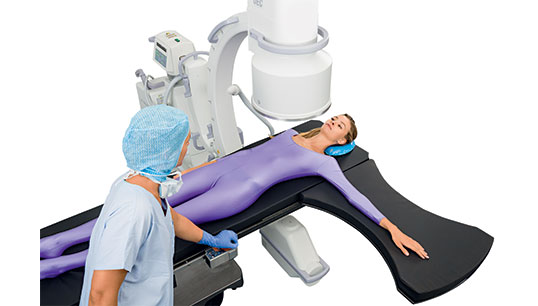

Greater imaging access: A small table base and column allows C-arm to be positioned close which results in a large anatomical imaging window. Excellent longitudinal, lateral, and diagonal tabletop stroke provides freedom in patient positioning and maximizes the imaging window.
Simple movement: One-piece, carbon fiber tabletop equipped with a ‘free-float’ allows the tabletop to be positioned quickly and intuitively.
Carbon fiber imaging surface: Large, unobstructed 360° imaging platform that can be expanded with tabletop extensions to accommodate taller patients.
Low tabletop height: Improved surgical staff ergonomics resulting from 26” minimum tabletop height – the lowest on the market.
Easy mobility: Lightweight design, large rotating wheels, and motorized table drive functionality makes for easier mobility of the table throughout the perioperative environment.
Damage resistant: Table base and column coverings made from ABS Plastic are designed to withstand frequent impact from imaging devices.

Why the CMAX X-Ray Image-Guided Surgical Table?

The free float tabletop means the surgeon has uninhibited control over direction and speed of the float, which is different than air-compressed float systems which can have vibrations that interfere with surgical intervention. The CMAX X-Ray also has a wireless Bluetooth control for use without interference of a cord and allows the surgeon to use it from behind x-ray shielding, lowering radiation exposure. Beyond its imaging capabilities, CMAX X-Ray offers versatility for multiple procedures giving hospitals and surgical centers one table for nearly every type of surgery.

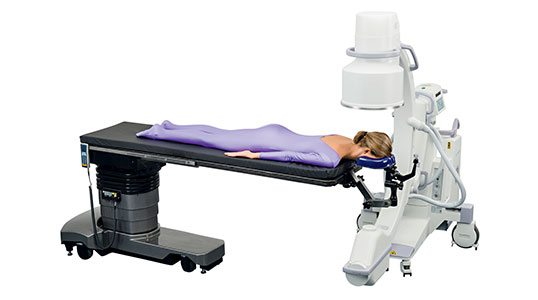

Vascular

Vascular and Cartoid

Gynecology and Urology

Cardio-thoracic

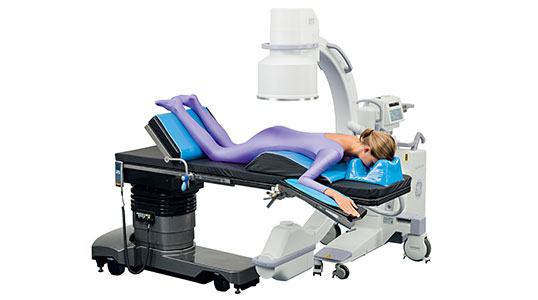

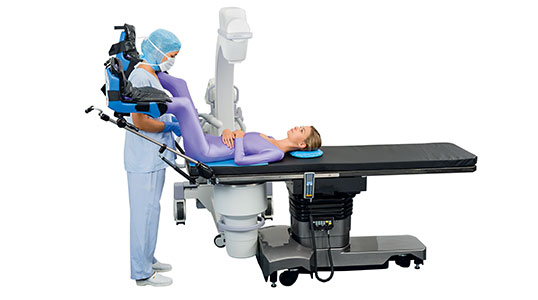

neuro and spinal procedures on the CMAX surgical table

Neurosurgical and Spinal

Neurosurgical and ENT

REQUEST A QUOTE

Table Specifications

Electrical Characteristics

Feature	Description
Main	100-240 VAC / 50-60 Hz / 420 VA Max 1
Protection	Class 1 Type B
Batteries	2 x 12V 24ah Lead Sealed
Standalone Operation	1-2 weeks
Maximum Charge Time	12 hours
Charge/Discharge Indicator	Mobile Base Bargraph & Hand Control
Liquid Ingress Rating	IPX4

Mechanical Characteristics

Feature	Description

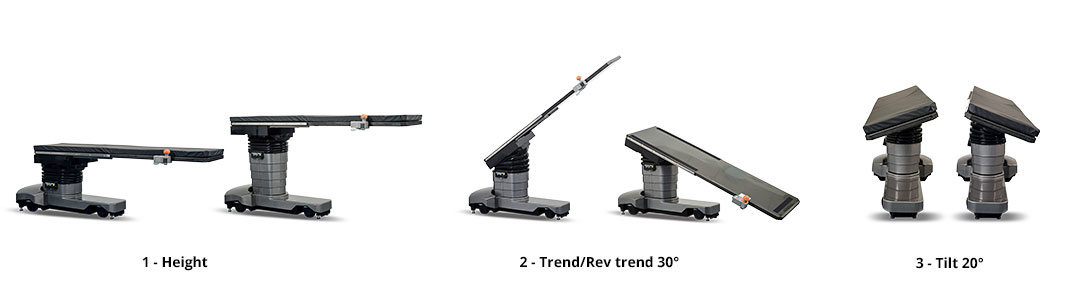

Up/Down	41”/26” (stroke 14”) (1040 mm/660 mm/stroke 360 mm)
Left Tilt/Right Tilt	20° / 20 °
Trend/Rev Trend	30° / 30 °
Longitudinal Slide	0-27.5” (0-700 mm)
Lateral Slide	10” total; +5”/-5” (260mm total; +130mm/-130 mm)
Tabletop Length	79” (2000 mm) (excluding extensions)
Tabletop Width	20.4” (520 mm) 22” (560 including rails)
Off-load Table Weight	727.5 lbs (330 kg)
Patient Weight Capacity	507 lbs (230 kg)
Imaging Window (with extensions)	72” (1820 mm) total; 52” (1330 mm) allows 360° imaging
Imaging Window (without extensions)	59” (1500 mm) total; 39” (1000 mm) allows 360° imaging
Floor Clearance/Wheel Diameter	0.6” (16 mm)/3.9” (100 mm)

CMAX X-Ray Accessories

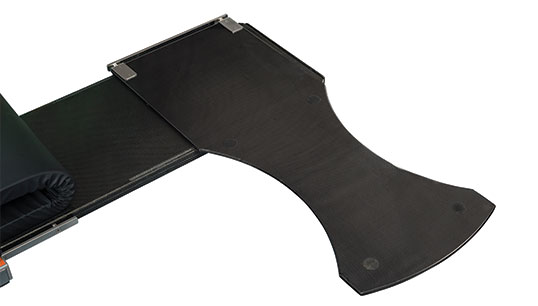

Radial AV Fistula Board – CMAX X-Ray

Constructed using carbon fiber to provide radiolucency
Uninterrupted fluoroscopic scan capabilities from the radial AV fistula to vena cava
Designed specifically for use with the CMAX X-Ray Image-Guided Surgical Table
Supports a weight capacity of 660 lbs.

CMAX^® Catheter Extension

Convenient, translucent platform for catheter placement
Attaches to the CMAX X-Ray Table siderail via gravity latch
Does not support patient weight
Supports a Weight Capacity of 17.5 lbs

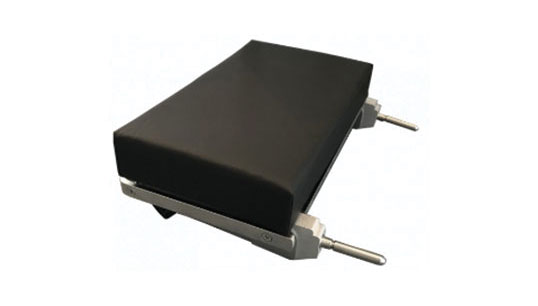

Head Rest Extension - CMAX X-Ray

Attachable headrest for the CMAX X-Ray Image-Guided Surgical Table
Tilts +90° / -90°
Increases the tabletop length of CMAX X-Ray by an additional 12”; up to 91” tabletop length

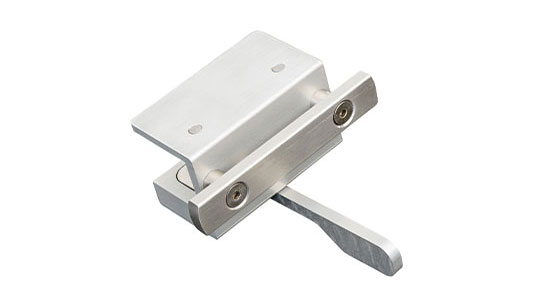

Siderail Adaptor – CMAX X-Ray

Converts metal-free, carbon fiber tabletop to accept accessory attachment
Removable and repositionable along the length of the CMAX X-Ray Image-Guided Surgical Table
Creates an on-demand North American-standard side rail
Sold as a single unit

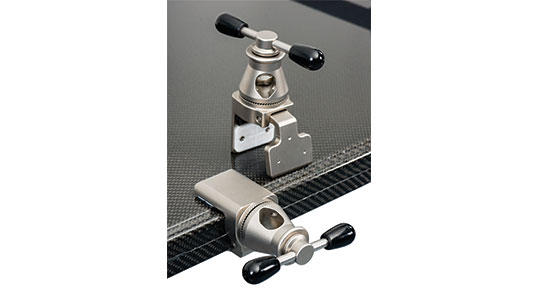

Rotary Socket - CMAX X-Ray

A socket clamp designed for attaching accessories with round posts up to ¾” diameter
Single lever for simple, quick attachment and removal
Designed specifically for use with the CMAX X-Ray Image-Guided Surgical Table
Attaches directly to the carbon fiber tabletop. Does not attach via side rail.

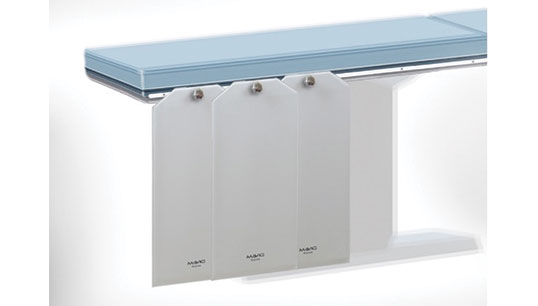

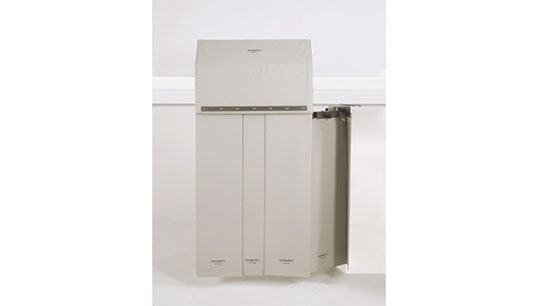

Lower Body X-ray Protection Shields

Lower sway panels self-adjust to table inclinations of up to 15°
All protective shields have a lead equivalent of Pb 0.50 mm
Fitted with a universal adapter that can be mounted to a wide range of table siderails
Solid construction and rounded edges reduce the risk of injuries

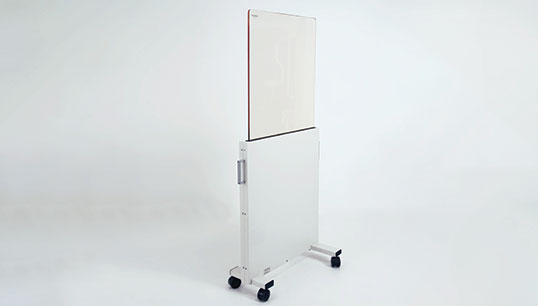

Mobile X-ray Protection Screen

Height-adjustable, lead acrylic panel for x-ray protection
Quick and easy positioning around the surgical table
Special base design that requires minimal space while still providing tip-resistance
Panel is fixed on a mobile cart with locking casters

X-Ray Protection Panels (Kit of 3)

Protective panels for the lower-body X-ray applications
Panels are universally adaptable and can be combined individually
Lead equivalent of Pb 0.50 mm
Solid construction and rounded edges reduce the risk of injuries

Hand Control – CMAX X-Ray

Hand Control for the CMAX X-Ray Image-Guided Surgical Table
Ergonomic design and easy-to-read LCD display
Durable, lightweight construction for easy handling and dependable performance
Includes cable

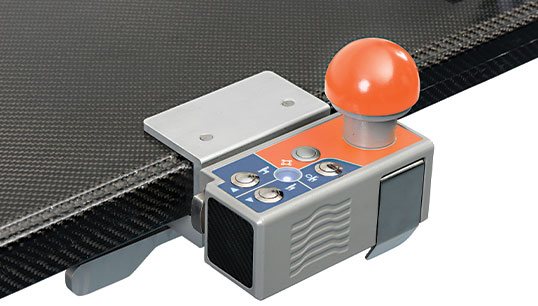

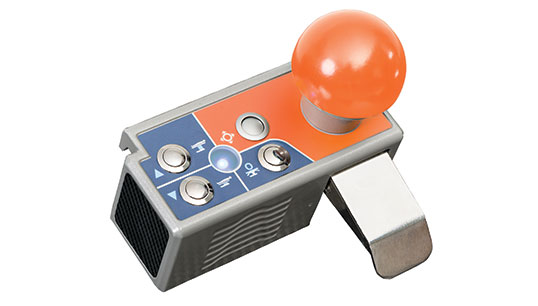

Joystick Control – CMAX X-Ray

Palm control is usable as wireless (Bluetooth^®) or wired
Can be mounted anywhere along the perimeter of the table (On siderail or with the Siderail Adaptor)
Designed specifically for use with the CMAX X-Ray Image-Guided Surgical Table
Controls Float, Height Up/Down, and features an Auto-Level button

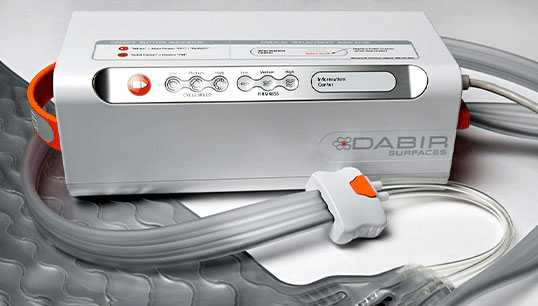

Specialty Accessories for patient Positioning & Pressure Management

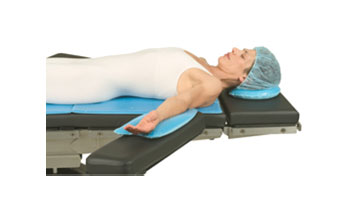

Gel Patient Positioners

STERIS offers a variety of gel positioners to be used in supplement with tabletop pads for promotion of proper patient positioning. In addition, the gel positioners provide stability of the patient's anatomy and pressure management at the patient’s skin surface interface.

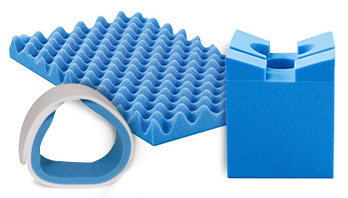

Disposable Surgical Accessories

STERIS's portfolio of disposable surgical accessories are designed to be used during a surgical procedure, and disposed of following the procedure. These single-use disposable accessories range from perineal posts and disposable face masks to head and chin restrain straps for orthopedic procedures.

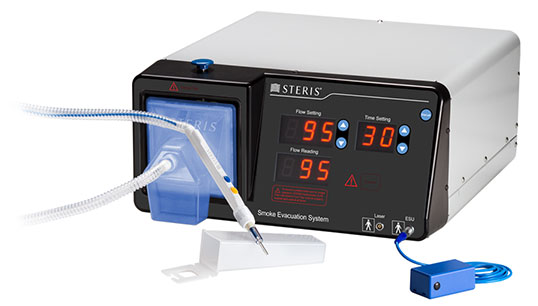

Environment and Procedure Aids for Staff

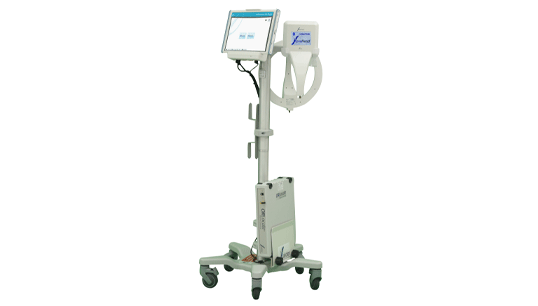

ORLocate™ Surgical Counting and Detection System

Leverages radio frequency identification (RFID) technology to enhance surgical counting protocols before, during, and after surgical procedures
Helps to reduce the risk of unintentionally retained surgical items (RSIs) and eliminate the need for potentially costly X-Rays
Adheres to AORN guidelines for the use of technology as part of surgical counts
Improves the accuracy of manual surgical counts in the operating room (OR)

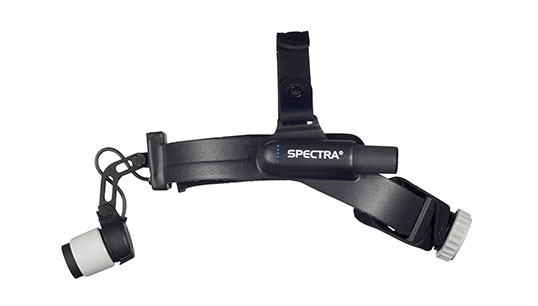

MedLED Spectra^® Surgical Headlight

Lightweight, cordless surgical headlight with two rechargeable batteries integrated on the head strap
Fast-charging lithium batteries deliver a longer life than other LED headlights and can be changed without the light turning off
Available in three light options allowing you to choose which headlight best fits your needs
Patented padding system and both hard or velcro-top options offer optimal comfort and customization
