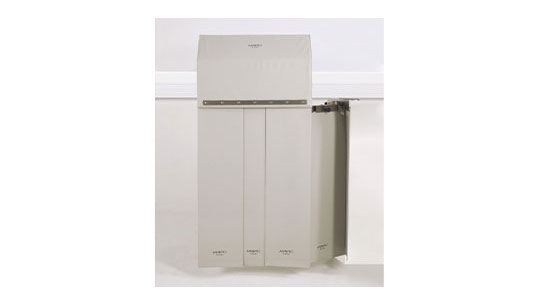

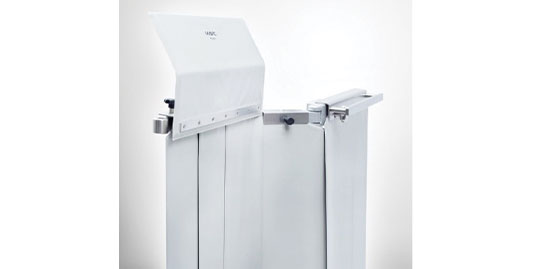

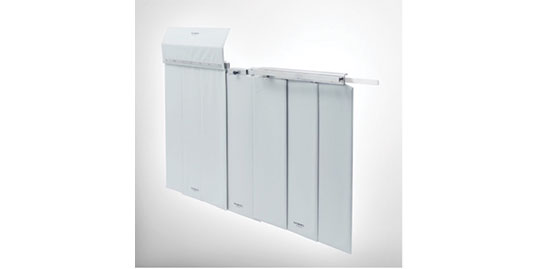

Lower Body X-Ray Protection Shields

  • Lower sway panels self-adjust to table inclinations of up to 15°
  • All protective shields have a lead equivalent of Pb 0.50 mm
  • Fitted with a universal adapter that can be mounted to a wide range of table siderails
  • Solid construction and rounded edges reduce the risk of injuries

REQUEST A QUOTE

This system is comprised of multiple, table-mounted x-ray protection shields for lower scattered radiation. These panels are an indispensable safety tool for the physician and staff and have long been an established standard in interventional radiology.

How the Lower Body X-Ray Protection Shields Work

These Lower Body X-Ray Protection Shields (BF793) have rounded edges for low injury risks and a large protection zone against x-ray radiation scattering for the examiner and the assistant. Fitted with a universal adapter that can be mounted to table siderails ranging in dimension from 0.275” x 1” (7 x 25 mm) to 0.39” x 1.2” (10 x 30 mm)

Why the Lower Body X-Ray Protection Shields?

  • Cleanability – Optimized design for thorough and time saving cleaning/disinfection
  • Intuitive Design – Individual soft lead rubber panels for better movement of the C-arm, improved physician comfort, and easier part replacement
  • Flexibility – Double joint adapter with additional protective panel for increased flexibility and enhanced positioning
  • Versatility – 18” (460 mm) long accessory rail for mounting additional devices such as control panels up to a max weight of 33 lbs. (15 kg)

Table Compatibility: CMAX X-Ray Image-Guided Surgical Table

Dimensions: L x W

  • Upper shield to floor: 47.6” (1210 mm) x 43.3” (1100 mm)
  • Rail to floor: 47.6” (1210mm) x 33.5” (850 mm)
  • Accessory Rail: 0.275” x 1” (7 x 25 mm) to 0.39” x 1.2” (10 x 30 mm) x 18” (460 mm) L

Patient Weight capacity (Accessory Rail): Capable of mounting accessories up to a max weight of 33 lbs. (15 kg)

Lead (Pb) equivalent of Pb 0.50 mm

CMAX™ X-Ray Image-Guided Surgical Table

  • Large, unobstructed, 360° radiolucent imaging surface
  • Intuitive wireless control via Bluetooth-capable joystick control

CMAX Catheter Extension (BF789)

  • Convenient, translucent platform for catheter placement
  • Attaches to the CMAX X-Ray Table siderail via gravity latch

X-Ray Protection Panels - Kit of 3 (BF792)

  • Protective panels for the lower-body X-ray applications
  • Panels are universally adaptable and can be combined individually

Mobile X-Ray Protection Screen (BF793)

  • Height-adjustable, lead acrylic panel for x-ray protection
  • Quick and easy positioning around the surgical table
