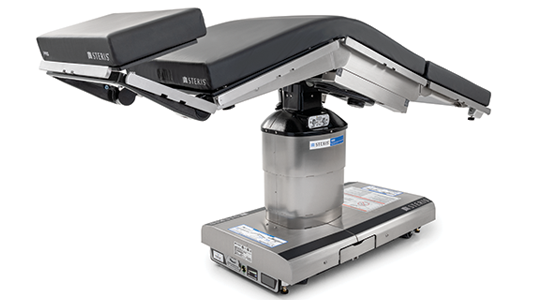

STERIS® 4095 General Surgical Table

  • Optional, Integrated STERIS Patient Warming System warms patients before, during or after the procedure
  • Large imaging window of 86" allows for easy C-arm access
  • Dual-articulating headrest enables more versatile positioning for anesthesia care providers
  • Flush side rail design eliminates exposed screws where microbes and bioburden can reside

The STERIS 4095 General Surgical Table raises the standard for surgical tables in the modern Operating Room (OR). This radiolucent table offers superior imaging capability, adequate weight and articulation capacity, and ease of mobility for surgical staff. The STERIS 4095 General Surgical Table's design gives the surgical team the flexibility, control and convenience they need for today's patients and procedures.

How the STERIS 4095 General Surgical Table Works

The STERIS 4095 General Surgical Table's large imaging window of 86" allows for easy C-arm access while the 18" of tabletop slide allows for easy positioning for any type of surgical specialty such as cardiothoracic, orthopedic or neurosurgical procedures. Instead of turning the table around and re-configuring for certain cases like with other surgical tables, simply slide the 4095 Surgical Table to the desired position.

The dual-articulating headrest on the 4095 Surgical Table enables more versatile positioning for anesthesia care providers. Tilt & height capability of the headrest facilitates improved patient airway management and simplifies lateral patient surgical positioning.

Why the STERIS 4095 General Surgical Table?

The 4095 Surgical Table's design gives the surgical team the flexibility, control and convenience they need for today's patients and procedures.

  • Anesthesia Care – The multi-position headrest enables versatile positioning for anesthesia care and facilitates improved airway management while intubating patients.
  • Imaging and Access – The 86" imaging window allows for easy C-arm access for surgical staff, while the 18" tabletop slide allows for easy surgical positioning, including positions like Fowler's, Prone, Sims, and Jackknife. Additionally, the modular, 24" removable leg section's carbon fiber construction makes it strong and ideal for imaging.
  • Patient Experience - Integrated in the optional table pads of the 4095 Surgical Table, the STERIS Patient Warming System provides additional valuable conductive warming at times before, during or after procedures in the operating room. The STERIS Patient Warming System provides patients with warmth during times along their surgical journey where patient core temperatures typically drop, such as during induction, prep and draping, and after the surgical case closes.
  • Infection Prevention – This radiolucent table promotes infection prevention in the OR with a flush side rail design that eliminates exposed screws where microbes and bioburden can reside. Hook-and-loop-free surgical table pads make the tabletop and pads easier to clean and further reduce areas where infectious diseases persist.

4085 Femoro Popliteal Bypass

Femoro-Popliteal

CMAX to Head Table Positioning

Cardiovascular

4085 Cystoscopy

Cystoscopy / Urology / GYN

4085 Endourology

Endourology

4095 Table Positioning

Ophthalmic/ENT

Bariatric Table Positioning

Bariatric/Split Leg

CMAX Kidney Thoracic Table Positioning

Kidney & Thoracic

4085 Orthopedic Extension

Orthopedic

Shoulder Chair Table Positioning

Shoulder Chair

4085 Total Hip

Total Hip

CMAX Prone Neuro Table Positioning

Prone Neurosurgery

4085 Spinal Neurosurgery

Spinal Neurosurgery

4085 Lateral Neurosurgery

Lateral Neurosurgery

4085 kneeling neurosurgery

Kneeling Neurosurgery

4085 Lithotomy Nisson Fundoplication

Nisson Fundoplication

4085 Gall Bladder and Thoracic

Gall Bladder and Thoracic

4085 Endovascular

Endovascular

4095 General Surgical Table Positioning - Gynecology

Gynecology

FEATURE DESCRIPTION

Table Length

81" (2057 mm)

Table Width

20" (508 mm) / 22"  (547 mm) with side rails

Table Height Range

26" to 45" (675mm - 1136 mm)

Table Slide Range

9" (227 mm) to head, 9" to foot

Patient Weight Capacity*

1,100 lb. (499 kg) patient support, including raise/lower (centered on the column)*

1,000 lb (454 kg) full table articulation (centered on the column)*

600 lbs (272 kg) full table articulation, including slide in Normal Orientation, and slide ONLY toward the feet in Reverse Orientation

575 lb. (261 kg) full table articulation, including slide toward the head in Reverse Orientation

Table Shipping Weight

560 lbs. (254 kg)

Trendelenburg / Reverse

30° / 30°

Lateral Tilt (left/right)

20° / 20°

Head Section

+90° / -90°

Back Section

+80° / -40°

Leg Section

0° / -105° (removable)

Flex/Reflex

140° / 100°

Manual Override

Yes

Perneal Cut-out

Yes

Kidney Elevator

4" powered radiolucent

*Patient in Normal or Reverse Orientation







Part number is required



By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.

surgical table accessories

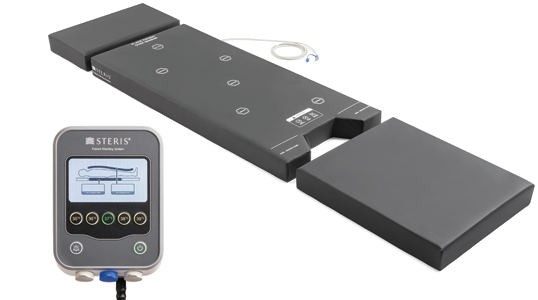

STERIS Patient Warming System

  • Provides heat to the patient before, during or after procedures in the operating room
  • Uses conductive, not convective, heat transfer through direct contact between the patient and the surgical table

Anesthesia Armboard

  • Lightweight, carbon fiber design
  • Distal end trigger for full horizontal rotation

Power-Lift Stirrups

  • Ergonomic, pneumatic lift-assist for safe patient handling
  • Single handle action for full articulation and range of motion

9 inch Urology Extension

  • Lightweight, radiolucent construction
  • Provides additional imaging length for kidney, ureter and bladder

Patient Transfer Boards

  • Patient Transfer Boards support patient's legs during transfer to and from table, and fit into access holes in sacral area

Clamps & Sockets

  • STERIS offers a variety of durable accessory clamps to attach and position surgical table accessories to surgical tables with standard siderails as well as orthopedic spars and imaging extensions without siderails.

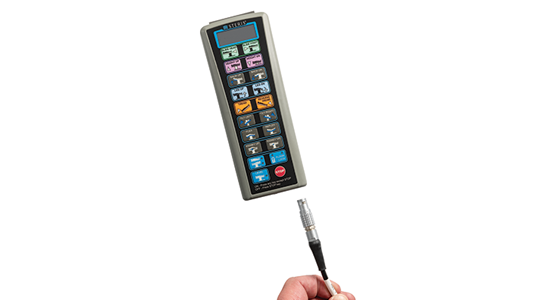

Universal Hand Control 2.0

  • New colored buttons offer quick and confident identification of the most frequently used functions
  • Detachable cable for easy replacement

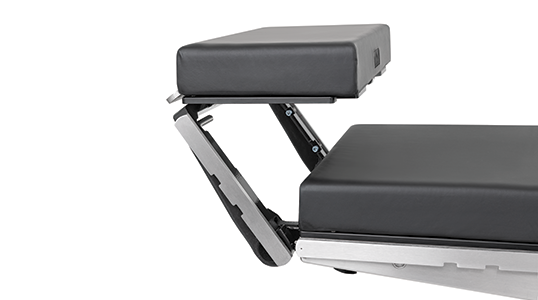

Dual Articulating Headrest

  • Enables versatile positioning for anesthesia providers and surgical team
  • Offers built-in tilt and height capability
