The Radial AV Fistula Board (BF716) is designed specifically for the CMAX X-Ray NA Image-Guided Surgical Table and offers a convenient, large platform for fistula repair. 2” mattress pad included.
How the CMAX Radial AV Fistula Board Works

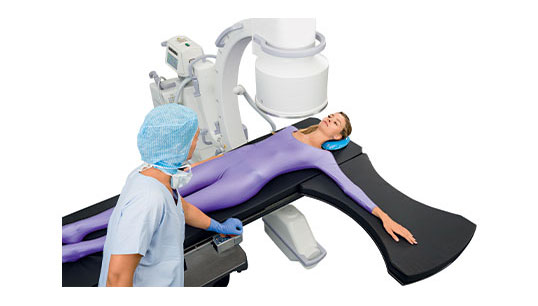

This fistula arm board is installed beneath the table pads and spans across the surgical table. Installation is done by simply removing the pads and placing the board on the tabletop while simultaneously hooking the accessory around the other side of the table. This fistula board is secured via 2 locking knobs located on the accessory. No additional rail clamps are needed for installation.
Why the CMAX Radial AV Fistula Board?

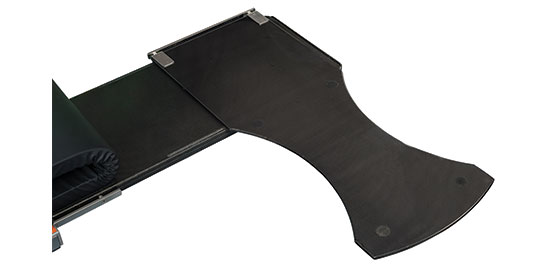

This fistula board is constructed from radiolucent carbon fiber offering uninterrupted fluoroscopic scanning capabilities of the entire arm. Additionally, the edge of the board on the non-operative limb side of the table comes with a pre-installed siderail for additional accessory attachment (e.g., Anesthesia Armboard).
Model #: BF716
Dimensions: 53.94” (1370 mm) x 20.47” (520 mm) x 5.51” (140 mm)
Weight: 11.24 lbs. (5.1 kg)
Patient Weight Capacity:
Do not exceed the stated weight capacity of 660 lbs. (300 kg). Please reference the accessory IFU for details. Additionally, the accessory weight may need to be included when calculating total permissible patient load for this surgical table.
Special Note(s): Comes with hook-and-loop fastener installed.
Replacement Pad(s):
CMAX™ X-Ray Image-Guided Surgical Table
CMAX Catheter Extension (BF789)
Rotary Socket - CMAX X-Ray (BF788)
|
