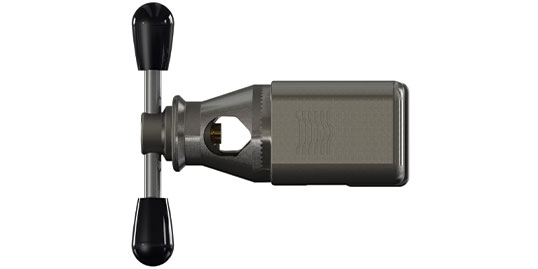

Rotary Socket - CMAX X-Ray

  • A socket clamp designed for attaching accessories with round posts up to ¾” diameter
  • Single lever for simple, quick attachment and removal
  • Designed specifically for use with the CMAX X-Ray Image-Guided Surgical Table
  • Attaches directly to the carbon fiber tabletop. Does not attach via side rail.

REQUEST A QUOTE

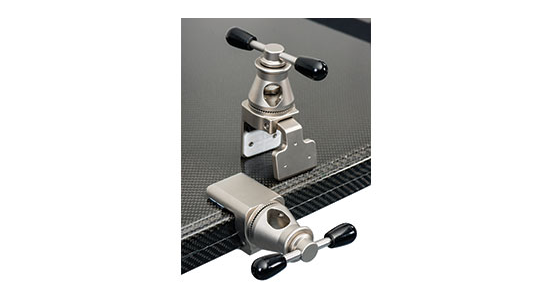

The Rotary Socket (BF788) for the CMAX X-Ray Image-Guided Surgical Table is ideal for mounting accessories with round posts up to ¾” diameter anywhere along the table’s perimeter where there is no siderail.

How the Rotary Socket Works

The Rotary Socket secures accessories to the siderail and provides height and angle control with one handle.

Why the Rotary Socket?

The single lever simplifies attachment and quick removal of accessories. The socket adjustment permits multi-planer accessories to be installed and secured at any angle (Ex. Multi-Axis Armboard).

Model #: BF788

Dimensions: 4.13” (105mm) x 2.56” (65mm) x 2.17” (55mm)

Fits Round Posts from 1/2” diameter up to ¾” diameter

Weight: 2.2 lbs (0.5 kg)

Patient Weight Capacity:

The weight capacity of this accessory is the same as the surgical table it connects to.

CMAX™ X-Ray Image-Guided Surgical Table

  • Large, unobstructed, 360° radiolucent imaging surface
  • Intuitive wireless control via Bluetooth-capable joystick control

Siderail Adaptor (BF787)

  • Converts metal-free, carbon fiber tabletop to accept accessory attachment
  • Removable and repositionable along the length of the CMAX X-Ray Image-Guided Surgical Table

CMAX Catheter Extension (BF789)

  • Convenient, translucent platform for catheter placement
  • Attaches to the CMAX X-Ray Table siderail via gravity latch

CMAX Radial AV Fistula Board (BF716)

  • Constructed using carbon fiber to provide radiolucency
  • Uninterrupted fluoroscopic scan capabilities from the radial AV fistula to vena cava
