Instrument Cleaning Brushes

  • Efficient cleaning with the right brush for your device
  • Nylon bristles are embedded with a preservative antimicrobial agent that inhibits growth of bacteria, mold and yeast on the surface of the bristles
  • Safe for technicians with allergies – not made with natural rubber latex

REQUEST A QUOTE

Harness the cleaning power of a focused technician using the right tool to get the job done. Instrument Cleaning Brushes deliver powerful manual cleaning results for surgical instruments and endoscopic devices.

How the Instrument Cleaning Brushes Work

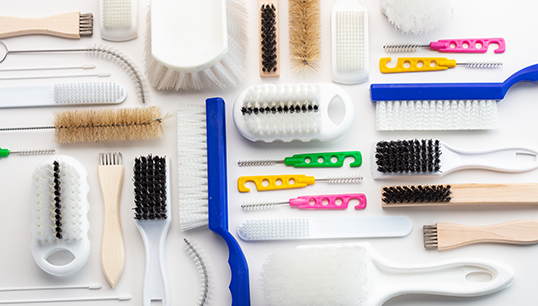

Burr, channel, general and toothbrush style brush configurations help clean surfaces, lumens and crevices of surgical instruments during processing. A variety of brush styles available at manual cleaning provides the right tools for a successful process. Instrument Cleaning Brushes are designed for cleaning instruments your Sterile Processing Department (SPD) sees every day including:

  • Burr Style – Designed to clean the surfaces of burrs, rasps, files and saws
  • Channel Style – Used to clean instruments and devices with a lumen or a channel
  • General Style – For cleaning of larger surfaces of instruments such as retractors and instruments with box locks
  • Toothbrush Style – Designed to reach fine surfaces of devices such as the teeth of Weitlaner Retractors and the textured surfaces of forceps

    Not sure which brushes you need?
    Use the Instrument Cleaning Brush Selector here.

Why Instrument Cleaning Brushes?

Regulating bodies provide specific guidelines around proper brush usage in the manual cleaning process:

"If reusable brushes are used, they should be decontaminated at least daily and when visibly soiled to ensure they are not a source of contamination"

  • Source: IAHCSMM Central Service Technical Manual, Eight Edition, page 137

"When decontaminating devices with lumens, personnel should soak and flush the lumen according to the manufacturer's written IFU ... brush the lumen with a brush that is the correct size (diameter and length) and bristle type and material for the lumen, then rinse it."

  • ANSI/AAMI ST79; 2017, section 7.6.2

Instrument Cleaning Brushes offer a range of bristle materials and configurations ensuring that you have the correct brushes to clean your instrument inventory.

Not sure which brushes you need? Use the Instrument Cleaning Brush Selector.

FIND BRUSHES

3 Pack 60 Count Case Product Description Brush Length
1B033B3 1B0337H 3 Row, Stainless Steel 6.5"

Not sure which brushes you need? Use the Instrument Cleaning Brush Selector.

FIND BRUSHES

3 Pack 60 Count Case Product Description Brush Length Bristle Diameter
1B17B3 1B177H Nylon 7" 1 mm
1B039B3 1B0397H Nylon 18" 1 mm
1B062B3 1B0627H Nylon 18" 1.58 mm
1B18B3 1B187H Nylon 8" 1.6 mm
1B070B3 1B0707H Nylon 18" 1.78 mm
1B10B3 1B107H Nylon 9" 2 mm
1B19B3 1B197H Nylon 12" 2 mm
1B087B3 1B0877H Nylon 18" 2.2 mm
1B11B3 1B117H Nylon 9" 2.3 mm
1B28B3 1B287H Nylon 24" 2.5 mm
1B12B3 1B127H Nylon 9" 2.6 mm
1B105B3 1B1057H Nylon 18" 2.67 mm
1B118B3 1B1187H Nylon 8" 3 mm
1B13B3 1B137H Nylon 9" 3 mm
1B20B3 1B207H Nylon 12" 3 mm
1B125B3 1B1257H Nylon 18" 3.18 mm
1B14B3 1B147H Nylon 9" 3.3 mm
1B15B3 1B157H Nylon 9" 3.6 mm
1B158B3 1B1587H Nylon 8" 4 mm
1B16B3 1B167H Nylon 9" 4 mm
1B21B3 1B217H Nylon 12" 4 mm
1B22B3 1B227H Nylon 12" 5 mm
1B24B3 1B247H Nylon 16" 5 mm
1B197B3 1B1977H Nylon 18" 5 mm
1B29B3 1B297H Nylon 24" 5 mm
1B23B3 1B237H Nylon 12" 6 mm
1B623B3 1B6237H Nylon 16" 6 mm
1B236B3 1B2367H Nylon 8" 6.35 mm
1BA25B3 1BA257H Nylon 18" 6.35 mm
1BB25B3 1BB257H Acrylic Tip with Nylon 18" 6.35 mm
1B25B3 1B257H Nylon 16" 7 mm
1B30B3 1B307H Nylon 24" 7 mm
1B312B3 1B3127H Nylon 24" 8 mm
1B26B3 1B267H Nylon 16" 10 mm
1B31B3 1B317H Nylon 24" 10 mm
1B440B3 1B4407H Nylon 24" 11.18 mm
1B443B3 1B4437H Nylon 24" 11.25 mm
1B27B3 1B277H Nylon 16" 12 mm
1B50B3 1B507H Fan Tip with Nylon 18" 12.7 mm
1B591B3 1B5917H Nylon 18" 15 mm
1B787B3 1B7877H Nylon 16" 20 mm
1B808B3 1B8087H Nylon 18" 22.35 mm
1B880B3 1B8807H Nylon 24" 22.35 mm

Not sure which brushes you need? Use the Instrument Cleaning Brush Selector.

FIND BRUSHES

3 Pack 60 Count Case Product Description Brush Length
1B32B3 1B327H Laparoscopic Trumpet Valve, Nylon 5"
1B33B3 1B337H Laparoscopic Double-Ended, Nylon 7"
1B300B3 1B3007H Nylon 7"
1B40B3 1B407H Nylon 7.25"

Not sure which brushes you need? Use the Instrument Cleaning Brush Selector.

FIND BRUSHES

3 Pack 60 Count Case Product Description Brush Length
1B43B3 1B437H Nylon 7.2"
1B38B3 1B387H Stainless Steel 7.2"
1B100B3 1B1007H Brass 7"




Manual Instrument Cleaning Chemistries

Prolystica HP Enzymatic Manual Cleaner

  • Formula specifically designed for manual instrument cleaning
  • Provides exceptional cleaning for difficult-to-remove surgical and endoscopy soils

Prolystica® HP Neutral Manual Cleaner

  • For use in manual cleaning and in automated washer/disinfector and ultrasonic cleaners

  • Broad spectrum substrate compatibility with stainless steel, plastic, aluminum and soft metals

Prolystica® HP Alkaline Manual Cleaner

  • Superior instrument and capital protection capabilities using specially formulated corrosion inhibitors

  • Broad spectrum substrate compatibility, including select soft metals


Decontamination Sinks

AMSCO® 30 and 50 Reprocessing Sinks

  • Easily wash longer tools, such as laparoscopic and robotic instruments, in 30" length bays

  • Increased ergonomics with height adjustable configurations

AMSCO® 70 Series Reprocessing Sinks

  • Continuous temperature monitoring and recording

  • Electronic height-adjusted counter promotes ergonomics

BROCHURE
Document # Document Title
INSTRUMENT CLEANING BRUSHES CATALOG
SDS
Document # Document Title
LAPAROSCOPIC CLEANING BRUSH
CHANNEL CLEANING BRUSH
