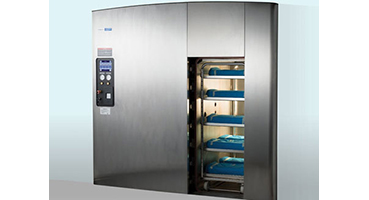

AMSCO Evolution Floor Loader - Large Steam Sterilizer - Large Autoclave

With the highest capacity in its class, the AMSCO Evolution Floor Loader steam sterilizer (autoclave) provides unparalleled throughput. This large autoclave’s chamber is wide enough to accommodate larger instrument sets and can process up to 625 pounds per cycle in the 72" model.

How Does the AMSCO Evolution Floor Loader Work?

These large steam sterilizers are configured for prevacuum sterilization of heat and moisture-stable materials used in healthcare facilities. These units are equipped with prevacuum, gravity, liquid, Dart (Bowie-Dick) and vacuum leak test cycles. Optional Steam Flush Pressure Pulse (SFPP) cycle can be added. All plumbing components of the large autoclave are mounted to a freestanding, modular rack which connects to the core sterilizer assembly during installation.

Why Choose the AMSCO Evolution Floor Loader Steam Sterilizer?

The Evolution Floor Loader's unique design promotes efficiency, with a fully jacketed chamber promotes even chamber heating to minimize condensation. The 26" wide chamber facilitates easy loading and unloading. The Evolution's control displays crystal clear, high-resolution graphics to keep the reprocessing team aware of the steam sterilization cycle progress. The autoclave is Ethernet-enabled allowing one touch operation to run cycles, review cycle data performance, or to custom configure the system

Additional features of the AMSCO Evolution Floor Loader are:

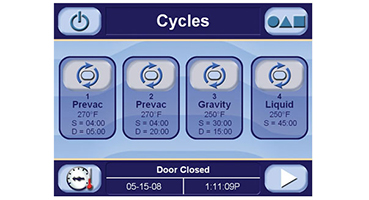

12 Programmable Cycles - Gravity, Prevacuum, Liquid and optional Steam Flush Pressure Pulse (SFPP)

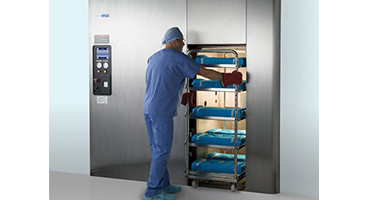

Easy loading equipment enhances ergonomics and supports staff safety

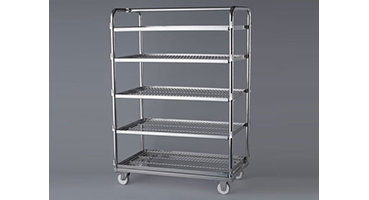

A single cart processes up to 15, 25 pound trays; double cart system processes up to 25, 25 pound trays
Available in copper/brass piping or stainless steel to support clean steam
Automated horizontal sliding door with auto-stop safety feature
Industry's only 2 Year warranty on the non-lubricated, steam activated gasket

Sterilizer Water Consumption with STERI-Green^®
Water Re-Circulation System

Add STERI-Green^® or STERI-Green^® Plus water recirculating systems to the Evolution Steam Sterilizers and dramatically cut water usage.

STERI-Green: Reduces Water Consumption up to 35%*
STERI-Green Plus: Reduces water consumption up to 99%*
Supports LEED certification for your facility
Recycled water never comes in contact
with processed sterile goods
Fits within the frame of the sterilizer

^{*Compared to processing a 500-lb. load in a standard AMSCO Evolution Steam Sterilizer}

Electronic Record Management with ConnectAssure™ Technology

Seamlessly connect and get immediate results from the AMSCO Evolution Steam Sterilizer and Celerity™ STEAM Incubator with ConnectAssure Technology.

Whether data is sent to your facility's tracking system such as SPM Surgical Asset Tracking Software or the ConnectAssure application, your cycle information is available with the click of a mouse for essential compliance reporting.

Sterilizer Chamber Size and Volume

Contact Us to discuss specifics about your project.

MODEL NUMBER	CHAMBER DIMENSIONS	CUBIC INCHES	CUBIC FEET	LITERS
HC2000	26 x 61 x 49"D (660 x 1550 x 1245mm)	77,714	45.0	1,273.63
HC3000	26 x 61 x 72"D (660 x 1550 x 1850mm)	144,192	66.1	1,892.55

Steam Sterilizer Utility Requirements

For complete autoclave utility requirements including amperage, psig for feed water, and drain requirements please see the Tech Data sheet on the Literature Tab.

REQUEST A QUOTE

Biological Indicators and Challenge Packs

VERIFY^® Assert™ Self-Contained Biological Indicator

Provides final read within 40 minutes of incubation

VERIFY^® Assert™ STEAM Process Challenge Device

For routine monitoring, qualification, and load monitoring of dynamic air removal cycles (LCB032/LCB033) and gravity cycles (LCB043)

View all Biological Indicators and Challenge Packs

Reusable Test Packs

Link to VERIFY All-In-One STEAM Reusable Test Pack

VERIFY^® All-In-One STEAM Reusable Test Pack

Designed to challenge vacuum assisted steam sterilizers operating at 270°F for a 4-minute exposure

View all Reusable Test Packs

Air Removal Tests

VERIFY^® Bowie-Dick Test Pack

Unique failure patterns of the test can point out potential issues, helping to get your sterilizer up and running quickly

Dart^® Daily Air Removal Test

Best-in-class and sensitive Air Removal test (Bowie Dick Test) to detect residual air

View all Air Removal Tests

Chemical Indicators and Challenge Packs

VERIFY^® STEAM Integrating Indicator

Incorporates three critical variables of steam sterilization – steam, time and temperature
Reduces risk of releasing a non-sterile load before the corresponding BI result is known

VERIFY^® STEAM Integrating Indicator 5CM

Reduces risk of releasing a non-sterile load before the corresponding biological indicator result is known

View all Chemical Indicators and Challenge Packs

Chemical Indicator Tape

VERIFY^® Steam and EO Tapes

Verify steam and ethylene oxide (EO) tapes adhere to both natural and synthetic materials commonly used in sterile processing.

Genuine Steris Parts for Your Steris Steam Sterilizers

Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.

VIEW SERVICE PARTS

Steam Sterilization CE Courses and Educational Resources

STERIS University CE Courses

Knowledge Center Articles

Published CE Articles

Online In-Service Training

Sterility Assurance and Monitoring

VERIFY^® Assert™ Self-Contained Biological Indicator

Provides final read within 40 minutes of incubation
For routine monitoring, qualification and load monitoring

VERIFY^® STEAM Integrating Indicator

Incorporates three critical variables of steam sterilization - steam, time and temperature
Reduces risk of releasing a non-sterile load before the corresponding BI result is known

VERIFY^® Bowie-Dick Test Pack

Consists of a series of air removal and steam penetration barriers

Advanced technology in thermochromic ink formulation can aid in the detection of steam quality issues

Printer Paper and Ink

Printer Paper Rolls

Box of 3 printer paper rolls

Printer Paper Rolls

Box of 5 printer paper rolls

Printer Ribbon

Box of 2 cartridges

Other Steam Sterilizers

AMSCO^® C Series Certified Pre-Owned Small Steam Sterilizer

Certified, Preowned
Available in Prevacuum or SFPP configuration

Link to Replacement Parts for Steam Sterilizers

AMSCO^® 400 Small Steam Sterilizer

Validated for 25 lb. sets
Accommodates larger bariatric and orthopedic devices

AMSCO^® 400 Medium Steam Sterilizer

Processes up to 375 lbs. of instruments
AAMI ST-8:2008 compliant

AMSCO^®Evolution^® Medium Steam Sterilizer

Processes up to 500 lbs of instruments
Elliptical chamber accommodates today's larger instrument containers

Sterile Processing Department Equipment

Sterile Processing Department Accessories

Prep and pack tables
Steam sterilizer loading equipment

Washing and Decontamination Systems

Washer/disinfectors
Ultrasonic cleaners

V-PRO^® Low Temperature Sterilization Systems

For terminal sterilization of heat- and moisture-sensitive devices
Plasma-free process allows maximum use of chamber volume

SYSTEM 1E^® Liquid Chemical Sterilant Processing System

For safe and effective reprocessing of heat-sensitive critical and semi-critical devices
Rapid 23-minute cycle

TECHNICAL BULLETINS
Document #	Document Title
M2826EN	STERIS STEAM STERILIZATION CLEANING PROCEDURE

BROCHURE
Document #	Document Title
M3444EN	AUTOMATED LOAD AND UNLOAD SYSTEM FOR AMSCO EVOLUTION MEDIUM STEAM STERILIZERS (ALUS)
M3444EN-CA	AUTOMATED LOAD AND UNLOAD SYSTEM FOR AMSCO EVOLUTION MEDIUM STEAM STERILIZERS (ALUS)
M3444FR	AUTOMATED LOAD AND UNLOAD SYSTEM FOR AMSCO EVOLUTION MEDIUM STEAM STERILIZERS (ALUS)
M4045EN	AMSCO STEAM STERILIZER FAMILY BROCHURE
M4045EN-CA	AMSCO STEAM STERILIZER FAMILY BROCHURE
M4045FR	AMSCO STEAM STERILIZER FAMILY BROCHURE
M4368EN	AMSCO EVOLUTION FLOORLOADING STEAM STERILIZER (.PDF ONLY)
M4368EN-CA	AMSCO EVOLUTION FLOORLOADING STEAM STERILIZER (.PDF ONLY)
M4368FR	AMSCO EVOLUTION FLOORLOADING STEAM STERILIZER (.PDF ONLY)

WALL CHARTS
Document #	Document Title
M3450EN	ROUTINE CHECKLIST FOR ALL AMSCO SMALL, MEDIUM AND FLOORLOADER STEAM STERILIZERS
M3450EN-CA	ROUTINE CHECKLIST FOR ALL AMSCO SMALL, MEDIUM AND FLOORLOADER STEAM STERILIZERS
M3450FR	ROUTINE CHECKLIST FOR ALL AMSCO SMALL, MEDIUM AND FLOORLOADER STEAM STERILIZERS

TECHNICAL TIPS
Document #	Document Title
M4092	GUIDE TO OPTIMAL STEAM GENERATION
M4093	GUIDE TO STAINLESS STEEL CORROSION REMOVAL
M4155	GUIDE TO STEAM STERILIZATION CYCLES - STEAM FLUSH PRESSURE PULSE
M4397EN	HOW TO: MEETING YOUR SUSTAINABILITY GOALS WITH STERIS EQUIPMENT
