VERIFY™ STEAM Integrating Indicator
- Type 5 Integrating Indicator
- Cycles: Various gravity, prevacuum, and immediate use steam sterilization (IUSS) cycles
- Features: Moving-front ink technology provides a clear interpretation of pass/fail
PRODUCT OVERVIEW

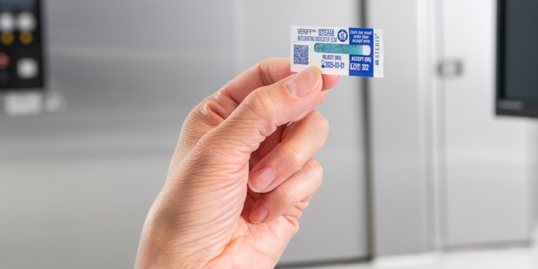

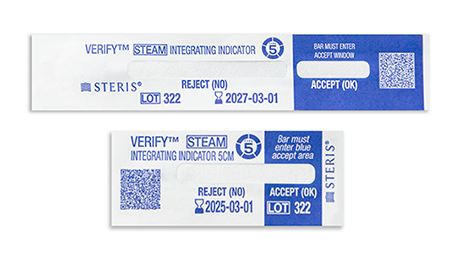

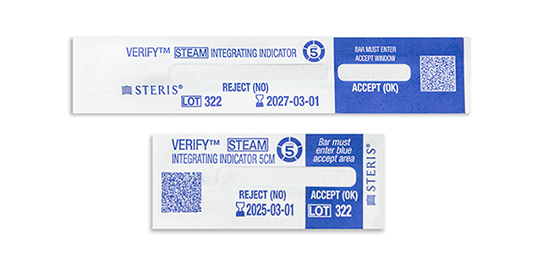

The VERIFY STEAM Integrating Indicator verifies that critical steam sterilization parameters were met. Available in two sizes, the 2-inch Type 5 Integrating Indicator fits where other chemical indicators do not, and both sizes meet stringent performance requirements of the ANSI/AAMI/ISO chemical indicator standard 11140-1.
How VERIFY STEAM Integrating Indicators Work
When exposed to a steam sterilization cycle, steam penetrates the clear film cover and lowers the melting point of the specially formulated pellet. As the pellet melts, it soaks into the wicking paper and a bar travels along the strip. The rate at which the bar moves has been correlated to a biological indicator's kill time.
When the bar has traveled the length of the strip and enters the "ACCEPT (OK)" area, this serves as confirmation that all critical steam sterilization parameters have been met.
Why VERIFY STEAM Integrating Indicators
- Compliance - Type 5 Integrating Indicator conforms with ANSI/AAMI/ ISO 11140-1
- Assurance - Provides verification that steam sterilization parameters were met
- Standardization - Compact “moving front” chemical indicator that fits your steam sterilization applications, available in both a 4-inch or 2-inch strip
- Clear Results - The 4-inch chemical indicator uses a unique window design to remove the guess work in interpretation since the results are clearly displayed
Chemical Indicator Specifications
| Feature | Description | |
|---|---|---|
Sterilization Method |
Steam Sterilization |
|
Product Type |
Type 5 Chemical Indicator |
|
Size |
4 inch: Approximately 4 inch x 3/4 inch (10cm x 2cm) |
|
Interpretation |
"Moving Front" indicator shows passing results once bar has entered the "Accept (OK)" window |
|
Interpretation |
 |
UNEXPOSED |
 |
PROCESSED/PASS |
|
 |
PROCESSED/FAIL |
|
VERIFY STEAM Integrating Indicator's Validated Steam Sterilization Cycles
Standard Steam Sterilization Cycles
| Cycle Type | Exposure Temperature | Exposure Time |
|---|---|---|
| DYNAMIC AIR REMOVAL | 270°F (132°C) |
4 minutes |
| 270°F (132°C) |
5 minutes |
|
| 270°F (132°C) |
6 minutes |
|
| 270°F (132°C) |
7 minutes |
|
| 270°F (132°C) |
8 minutes |
|
| 270°F (132°C) |
9 minutes |
|
| 270°F (132°C) |
10 minutes |
|
| 273°F (134°C) |
4 minutes |
|
| 275°F (135°C) |
3 minutes |
|
| GRAVITY | 250°F (121°C) |
30 minutes |
| 270°F (132°C) |
15 minutes |
|
| 275°F (135°C) |
10 minutes |
Immediate Use Steam Sterilization (IUSS) Cycles
| Cycle Type | Exposure Temperature | Exposure Time |
|---|---|---|
| DYNAMIC AIR REMOVAL | 270°F (132°C) |
4 minutes |
| 275°F (135°C) |
3 minutes |
|
| GRAVITY | 270°F (132°C) |
3 minutes |
| 270°F (132°C) |
10 minutes |
|
| 275°F (135°C) |
3 minutes |
|
| 275°F (135°C) |
10 minutes |
SHOP NOW
Browse a complete Item Number list and easily reorder VERIFY™ STEAM Integrating Indicator products on Shop STERIS.
| Product Number | Description | |
|---|---|---|
| PCC064 | VERIFY STEAM INTEGRATING INDICATOR (250 STRIPS) | |
| PCC064B | VERIFY STEAM INTEGRATING INDICATOR (8 PACKS/CASE) | |
| PCC065 | VERIFY STEAM INTEGRATING INDICATOR (1000 STRIPS) | |
| PCC065B | VERIFY STEAM INTEGRATING INDICATOR (2 PACKS/CASE) | |
| PCC067 | VERIFY STEAM INTEGRATING INDICATOR 5CM POUCH (500) | |
| PCC067B | VERIFY STEAM INTEGRATING INDICATOR 5CM CASE (4 X 500) |
|
