STERIS 36” Imaging Extension
- Radiolucent, metal-free extension for 360° of X-ray or fluoroscopic imaging

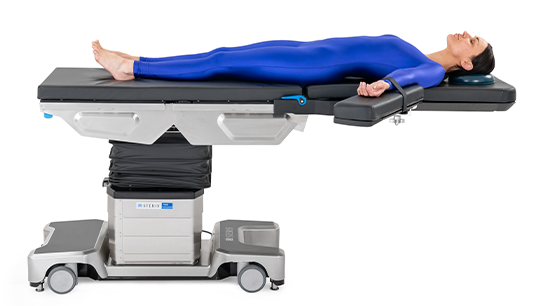

- Increases upper or lower body imaging up to 55"

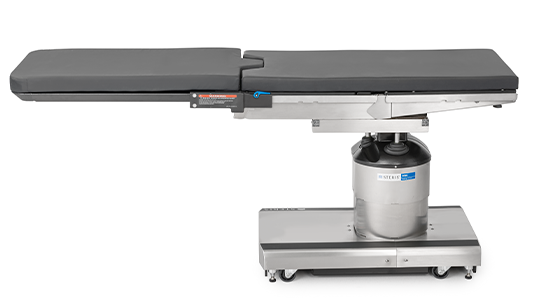

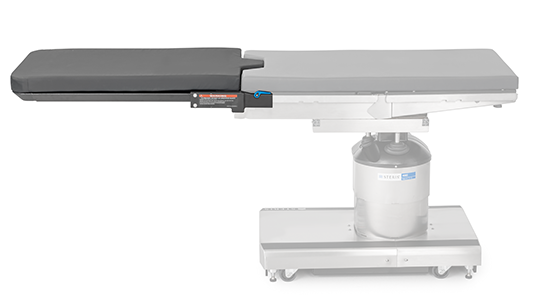

- Siderail connection to all STERIS 3000-, 4000-, 5000-, and 7000-series surgical tables
- Broadens surgical capabilities for STERIS surgical tables
Product Overview

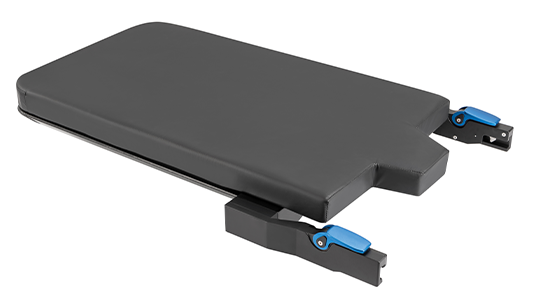

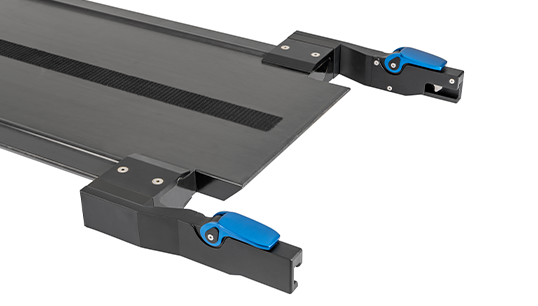

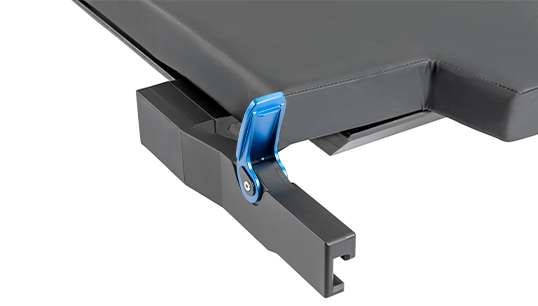

The STERIS 36” Imaging Extension features metal-free radiolucent beveled edges for 360° imaging, increasing upper or lower body imaging by up to 55". This 36" accessory broadens the surgical capabilities of STERIS general surgical tables for cardiovascular, AV fistulas, pain management, and other procedures requiring the enhanced imaging ability typically found on image-guided surgical tables. Quick-connect locks make attachment to the table siderail easier for a single operating room caregiver. The fluoro table extension is available with or without a 2" pressure management pad.
Available Models:
- BF00258 - for STERIS 7000-series Surgical Tables (includes 2” TLT pad)
- BF00257 - for STERIS 7000-series Surgical Tables (without pad)
- BF64201 – for STERIS Cmax, 4000-, 5000-series Surgical Tables (includes 2” TLT pad)
- BF64202 – for STERIS Cmax, 4000-, 5000-series Surgical Tables (without pad)
- BF642 (w/ pad) – for AMSCO 3000-series Surgical Tables (includes 2” TLT pad)
Table Compatibility:
- STERIS Cmax (Gen. 1; NA only), 4085, 4095, 5085, 5085 SRT, 5085 Harmony, 5095 & 7080 models
- AMSCO 3080 & 3085 models
Additional Optional Accessories:
- TA00012: Standard Siderail Adapter (1)
- TA00005: Standard Siderail Adapter (Kit of 3)
Replacement Pad Options
- BF171: 2” TLT Pad for 36” Imaging Extension
- BF00007: 3” TLT Pad for 36” Imaging Extension
- BF403: 4” TLT Pad for 36” Imaging Extension
Specifications
Dimensions:
Carbon Fiber Board (only): 35.75” (L) x 21” (W) x 2” (H) without pad
Overall: 42” (L) x 23” - 24.125” (W) x 3.3” (H) without pad
Weight Capacity:
| Surgical Table Model | Patient Weight Capacity |
|---|---|
| 7080 | Tabletop centered or with slide induced: 700 lbs (317 kg) |
| 5095, 5085, 5085 SRT & 5085 Harmony, 4095, 4085, CMAX (Gen 1.; NA only) |
Tabletop with slide induced: 350 lbs (159 kg) Tabletop centered: 500 lbs (227 kg) |
| 3085 SP | 500 lbs (227 kg) |
| 3080 | 400 lbs (181kg) |
They are not manufactured with natural rubber latex.
Shop Now
| Product Number | Description | |
|---|---|---|
| BF171 | 36 IN. CARBON FIBER FLUORO EXTENSION PAD | |
| BF642 | 36 IN CARBON FIBER FLUORO EXT W/2 IN PAD | |
| BF00257 | 36” Imaging Extension, 7000-Series Table, without pad, Velcro | |
| BF00258 | 36” Imaging Extension, 7000-Series Table, with 2” TLT pad, Velcro | |
| BF64201 | 36” Imaging Extension, 4000/5000-Series Table, without pad, Velcro | |
| BF64202 | 36” Imaging Extension, 4000/5000-Series Table, with 2” TLT pad, Velcro |
There are no literature documents found for this product.
