Vision 1300 Series Hospital Cart and Utensil Washer Disinfector | STERIS
STERIS Corporation - Helping to provide a healthier today and a safer tomorrow.

Vision® 1300 Series Cart and Utensil Washer/Disinfector

  • High-capacity cart washer that can process up to 192 carts in an 8-hour day
  • Ensures thorough drying with a powerful HEPA filtered drying system with tilting floor
  • Lowest water consumption on the market, using only 14 gallons per cycle

REQUEST A QUOTE

Browse Replacement Parts

Product Overview

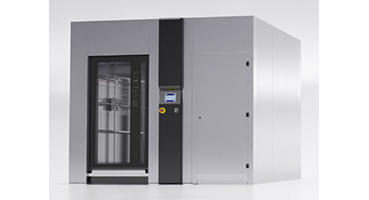

The Vision 1300 Series Cart and Utensil Washer/Disinfectors are high capacity cart washers, available in 3 chamber lengths, which provide maximum throughput for your department. The fast 10-minute cycle uses high impingement washing and provides thermal disinfection with the lowest water consumption per cycle on the market.

How the Vision 1300 Series Cart and Utensil Washer/Disinfector Works

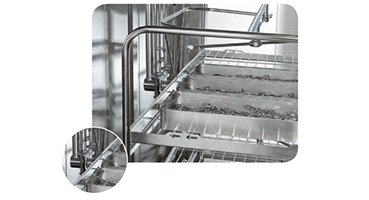

1300 Series Cart Washers use a HexaClean spray pattern along a traveling spray arm and each side of the cart washer with 17 jets (19 on the 1330L) to ensure complete coverage. The optional instrument cycle provides an alternative for reprocessing instrument trays and loaner sets – and every cycle offers thermal disinfection. The powerful and efficient drying system uses HEPA filtered air and an automatic tilting floor to ensure thorough drying with every cycle.

Why the Vision 1300 Series Cart and Utensil Washer/Disinfector?

The large capacity of the cart washers with two automatic sliding doors allows you to maximize throughput in your sterile processing department and process up to 192 carts in an 8-hour day. Automated injection of descaling chemistry allows you to select the decontamination cycle and begin this routine maintenance task.

Additional features of the Vision 1300 Series Cart Washers are:

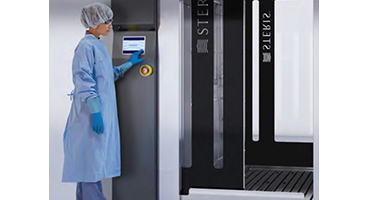

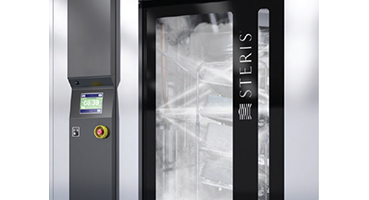

  • Control panel with single-touch buttons for cycle selection
  • Record-keeping capabilities with USB port and cycle printer on the clean side
  • Cycle phase and time is visible across the room
  • 8 pre-programmed cycles, plus customizable cycles

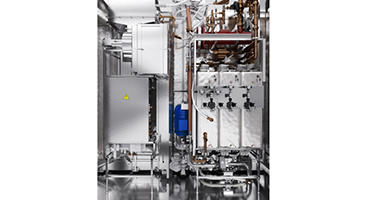

  • Access to mechanical core allows maximum uptime
Environmental Social Governance

Supporting Your Sustainability Goals



  • Conserve Water – Equipped with water- and energy-efficient features that recycle 70% of the water used, it allows for the lowest water consumption per cycle of any cart washer on the market.

Learn more about STERIS' commitment to Sustainability

Electronic Record Management with ConnectAssure™ Technology and SPM® Surgical Asset Tracking Software

Seamlessly connect and get immediate results from a Vision 1300 Series Cart Washer with ConnectAssure Technology.

Whether data is sent to your facility's tracking system, such as SPM Surgical Asset Tracking Software or the ConnectAssure application, your cycle information is available with the click of a mouse for essential compliance reporting.

Innovative Racks for the Vision 1300 Series Cart Washer

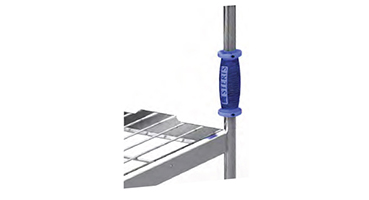

In addition to processing surgical instrument case carts, three innovative cart washer racks with cool-touch handles allow for flexibility in processing different loads:

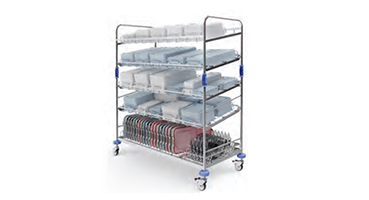

  • Container Rack – Holds up to complete containers, including lids and retention filters.

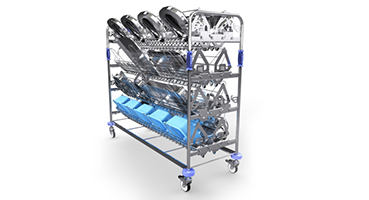

  • Utensil Rack – Designed for processing of utensils such as bedpans and urinals, basins, theater shoes and other miscellaneous reusable patient care items.
  • Instrument Rack – Specifically designed to hold up to 12 standard instrument trays for processing loaner sets and other surgical instruments.

Cart Washer Size & Capacity

Vision 1321
(2.1 meters long)
Vision 1327
(2.7 meters long)
Vision 1330L
(3.0 meters long)
Overall Dimensions
120 x 112.75 x 106"
(3048 x 2864 x 2692 mm)
Overall Dimensions
120 x 112.75 x 130"
(3048 x 2864 x 3302 mm)
Overall Dimensions
120 x 112.75 x 142"
(3048 x 2864 x 3607 mm)
Effective Chamber Capacity
40 x 80 x 82"
(1016 x 2032 x 2083 mm)
Effective Chamber Capacity
40 x 80 x 106”
(1016 x 2032 x 2692 mm)
Effective Chamber Capacity
40 x 80 x 118.1"
(1016 x 2032 x 3000 mm)

Cart Washer Utility Requirements

Please see the Tech Data sheet on the Literature Tab for complete cart washer utility requirements, including amperage, water/air/steam, and drain requirements.
