AMSCO® 600 Medium Steam Sterilizer

  • Process up to fifteen, 25 lb trays in each cycle
  • Small footprint, only 39" wide with no side or rear clearance required
  • Automatic vertical sliding door makes loading and unloading easy

REQUEST A QUOTE

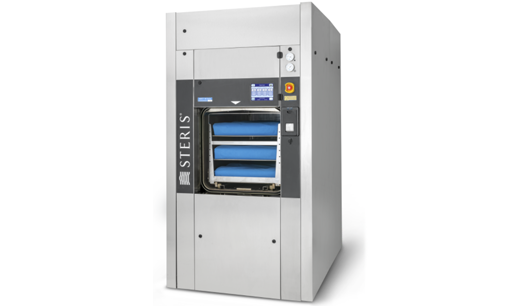

The sleek design of the AMSCO® 600 Medium Steam Sterilizer (autoclave) meets two critical demands in your department – maximum throughput in a minimum footprint. Whether designing a new Sterile Processing Department (SPD), Ambulatory Surgery Center (ASC), or planning for a department renovation, the combination of productivity and space savings makes the AMSCO 600 the obvious choice.

How the AMSCO 600 Medium Steam Sterilizer Works

Medical devices such as surgical instruments and implanted medical devices that meet sterile body tissues or fluids are considered critical devices and must be sterilized. Steam sterilization in an autoclave machine is the ideal fit for sterilizing heat - and moisture - stable items because it is reliable, consistent, and lethal to microorganisms while being safe for operators.

The AMSCO 600 Series Steam Sterilizers are configured for prevacuum and gravity steam sterilization cycles. The medium autoclave safely sterilizes up to 375 lbs per cycle, allowing you to efficiently handle high-volume sterilization and heavier trays while meeting compliance guidelines.

Why Choose the AMSCO 600 Medium Steam Sterilizer?

  • Space-saving design – Easy loading with automated vertical door and no side or rear service clearance required.

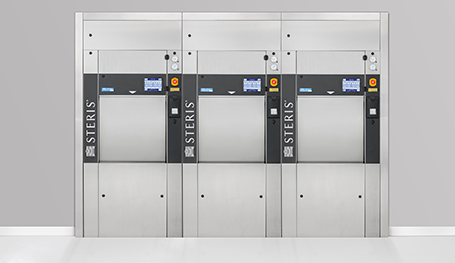

  • Multiple sterilizers can be installed side-by-side allowing your department to maximize space while creating a productivity powerhouse with 70% space savings per unit.*
  • Workflow that never stops – Add a FAST LANE to your department to batch smaller loads that are needed quickly, including a full load of orthopedic sets, or stay up and running if your larger sterilizer is down for service.
  • Clean steam-ready – All AMSCO 600 Series Sterilizers include stainless-steel piping with an optional integrated stainless-steel steam generator.

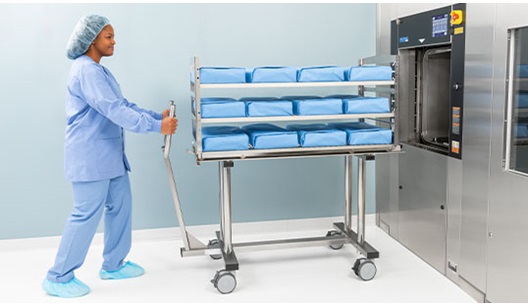

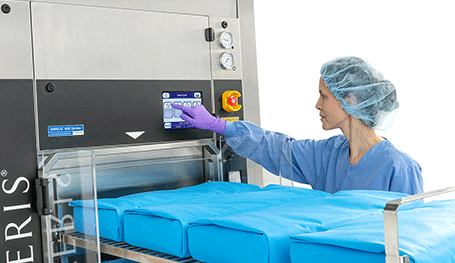

  • Keep your process in motion – Improve staff efficiency with intuitive controls that keep you aware of cycle progress and transfer loads with ease using the variable height transfer carriages.
  • Fully warrantied construction – 15-year chamber warranty and the industry's only two-year gasket warranty. The steam-activated gasket never requires lubrication and the fully jacketed chamber means less condensation forms on chamber interior.

Reduce Water Consumption with STERI-Green® Water Saving Systems

Add STERI-Green® or STERI-Green® Plus to the AMSCO 600 Medium Steam Sterilizer and dramatically reduce autoclave water usage.

  • STERI-Green: Reduces water consumption up to 35%**
  • STERI-Green Plus: Reduces water consumption up to 99%**
  • Supports green initiatives and sustainability goals
  • Recycled water never encounters processed sterile goods
  • Fits within the frame of the autoclave sterilizer
  • By-pass valve allows you to switch between chilled and potable water

Electronic Record Management with ConnectAssure Technology

Seamlessly connect and get immediate results from AMSCO 600 Steam Sterilizer with ConnectAssure Technology.

Whether data is sent to your facility's tracking system such as SPM Surgical Asset Tracking Software or the ConnectAssure application, your cycle information is available with the click of a mouse for essential compliance reporting.

Sterilizer Chamber Sizes and External Dimensions

  STERIS AMSCO 600 26.5 x 26.5 x 39" STERIS AMSCO 600 26.5 x 26.5 x 51" STERIS AMSCO 600 26.5 x 26.5 x 63"
Chamber Sizes STERIS AMSCO® 600
26.5 x 26.5 x 39"
STERIS AMSCO® 600
26.5 x 26.5 x 51"
STERIS AMSCO® 600
26.5 x 26.5 x 63"


External Dimensions

Width of Unit

39.375 inches

39.375 inches

39.375 inches

Length of Unit

51.625 inches

63.438 inches

75.250 inches

Height (Installed)

89.063 inches

89.063 inches

89.063 inches

FLOOR SPACE per Unit

14.116 square feet

17.346 square feet

20.576 square feet

CAPACITY

Quantity of Wrapped Trays per Cycle

9 trays

12 trays

15 trays

Weight per Tray (pounds)

25 pounds

25 pounds

25 pounds

Total Weight per Cycle (pounds)

225 pounds

300 pounds

375 pounds

*Compared to the AMSCO® Evolution Medium (26 x 26) Steam Sterilizer

**Compared to processing a 375 lb load in a standard AMSCO 600 Medium Steam Sterilizer

Biological Indicators and Challenge Packs

VERIFY® Assert Self-Contained
Biological Indicator

Provides final read within 40 minutes of incubation

VERIFY® Assert™ STEAM Process Challenge Device

For routine monitoring, qualification, and load monitoring of dynamic air removal cycles (LCB032/LCB033) and gravity cycles (LCB043)

VERIFY® All-In-One STEAM Reusable Test Pack

Designed to challenge vacuum assisted steam sterilizers operating at 270°F for a 4-minute exposure

View all Reusable Test Packs


Air Removal Tests

VERIFY® Bowie-Dick Test Pack

Unique failure patterns of the test can point out potential issues, helping to get your sterilizer up and running quickly

Dart® Daily Air Removal Test

Best-in-class and sensitive Air Removal test (Bowie Dick Test) to detect residual air

View all Air Removal Tests


Chemical Indicators and Challenge Packs

VERIFY® STEAM Integrating Indicator

Seamlessly incorporates three critical variables of steam sterilization: steam, time, and temperature

VERIFY® STEAM Integrating Indicator 5CM

Reduces risk of releasing a non-sterile load before the corresponding biological indicator result is known

VERIFY® Steam and EO Tapes

Verify steam and ethylene oxide (EO) tapes adhere to both natural and synthetic materials commonly used in sterile processing

Sterility Assurance and Monitoring

VERIFY® Assert Self-Contained Biological Indicator

  • Provides final read within 40 minutes of incubation
  • For routine monitoring, qualification and load monitoring

VERIFY® STEAM Integrating Indicator

  • Incorporates three critical variables of steam sterilization – steam, time and temperature
  • Reduces risk of releasing a non-sterile load before the corresponding BI result is known

VERIFY® Bowie-Dick Test Pack

  • Consists of a series of air removal and steam penetration barriers
  • Advanced technology in thermochromic ink formulation can aid in the detection of steam quality issues

Other Steam Sterilizers


AMSCO® C Series Certified Pre-Owned Small Steam Sterilizer

  • Certified, Preowned
  • Available in Prevacuum or SFPP configuration

AMSCO® 400 Small Steam Sterilizer

  • Validated for 25 lb sets
  • Accommodates larger bariatric and orthopedic devices

AMSCO® Evolution® Medium Steam Sterilizer

  • Processes up to 500 lbs of instruments
  • Elliptical chamber accommodates today's larger instrument containers
  • STERI-GREEN PLUS® reduces water consumption to 1 gal/cycle
  • Available with space saving integral steam generation

AMSCO® Evolution® Floor Loader Steam Sterilizer

  • Processes up to 625 lbs of instruments
  • STERI-GREEN PLUS® reduces water consumption to 1 gal/cycle

Sterile Processing Department Equipment


Sterile Processing Department Accessories

  • Prep and pack tables
  • Steam sterilizer loading equipment
  • Stainless steel transportation carts

Washing and Decontamination Systems

  • Washer/disinfectors
  • Ultrasonic cleaners
  • Hospital cart washers
  • Decontamination sinks

V-PRO® Low Temperature Sterilization Systems

  • For terminal sterilization of heat- and moisture-sensitive devices
  • Plasma-free process allows maximum use of chamber volume

SYSTEM 1E® Liquid Chemical Sterilant Processing System

  • For safe and effective reprocessing of heat-sensitive critical and semi-critical devices
  • Rapid 23-minute cycle
