Harmony iQ® 3600 Integration System

  • Perform two-touch routing of up to 32 devices to 32 destinations
  • Capture and record surgical video in high definition for later review or push to EMR
  • Communicate in real-time through Call-and-Connect HD conferencing options
  • Streamline OR design by locating the low-profile base unit flush within the wall
  • Easily upgrade to 4K routing

CONTACT US

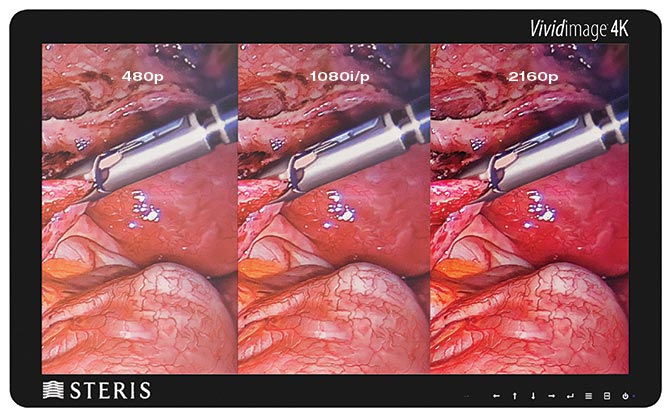

Upgrade your Operating Room to 4K to experience:

4K image resolution

With a 4K routing upgrade to Harmony iQ | BDV Integration Systems, experience vibrant surgical visualization in ultra-high definition detail. Simple 4K routing upgrades for the Harmony iQ and BDV IDSS Integration Systems quickly and easily install within the existing system, allowing you to connect and visualize the 4K imaging devices you prefer.

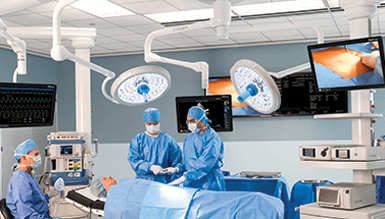

OR Integration Systems for Complex, Challenging Environments

The Harmony iQ® 3600 Integration System is the system of choice for the most demanding environments using dedicated C-arms, robotics, navigation and other advanced imaging tools. The Harmony iQ 3600 Integration System is designed to support the needs of high-volume, complex case ORs. Providing vendor-neutral connectivity and visualization of up to 32 imaging modalities, we ensure you see every image – when and where you need it. From start to finish, Harmony iQ 3600 offers the surgical team efficiency enhancements at every stage of the procedure through tools to support collaboration, image management and workflow.

  • HD and 4K video routing offers the entire surgical team visibility to critical information from HD or 4K devices, supporting informed treatment decisions, synchronized activity, and better patient outcomes.
  • Universal Ports allow seamless, simple connection of portable and fixed equipment in the OR, regardless of the type of device.
  • Control of connected technologies like PC computers, surgical lights and camera, and the STERIS Free5® Camera System, from the touch panel promotes efficient and prompt reaction to procedure events.
  • VuCapture® Digital Recording System delivers reliable and vendor-neutral HD capture and recording ensures capture of connected video sources.
  • Multi-image visualization of up to four sources on one screen supports at-a-glance comparison.
  • Rotate images to portrait mode for spine cases or other procedures requiring vertical viewing.
  • Image Management System®Harmony iQ Perspectives – supports later review of surgical images and recordings, and export directly to the Electronic Medical Record (EMR).
  • Call and Connect communication offerings allow real-time high quality audio and video communication from the OR– helping you work together and support education, all without compromising the efficiency of your case or crowding the OR.
  • SignatureSuite relaxing multimedia experience creates a calming environment for patients, while custom presets simplify workflow for improved productivity and staff satisfaction.
  • A future-ready fiber optic infrastructure supports high-bandwidth HD and 4K signals to meet our Customers current and future needs.
  • A flush wall-mount design maximizes Customers' useable OR space and reduces the possibility of trip hazards.

Harmony iQ 3600 Series Integration System's Base Unit

Optional Device Control

STERIS surgical lights, STERIS monitors, Music player, Room camera, In-light camera, FREE5 camera, connected PCs

Video inputs (sources)

Up to 32

Destinations

Up to 32

Width x height x depth (in-wall mounted)

18.1 in. x 44.7 in. x 0.8 in.

Width x height x depth (surface mounted)

18.1 in. x 44.7 in. x 4.6 in.

Power Supply

100 - 240 V AC 50/60 Hz, 250 W

Typical Heat Load

1200 BTU/hour




Harmony iQ 21.5" Optical Touchpanel Monitor

Width x height x depth

21.2 in. x 12.9 in. x 2.3 in.

Weight

12.5 lb (7.5 kg)

The Harmony iQ | BDV Integration Systems' bright, 21.5" surgical grade optical touch panel monitor controls the system with the touch of a finger.

The Harmony iQ | BDV Integration Systems' touch panel special features include:

  • Supports control of connected PCs at the nurse desk, saving desktop space
  • Video preview to see what you're routing before sending it
  • One touch from preview mode to full screen and back
  • Optical touch technology greatly improves tactile response
  • Rugged, impact-resistant design suited for the demanding OR environment
  • Sealed construction supports OR disinfection programs

Upgrade your Operating Room to 4K to experience:

4K image resolution

With a 4K routing upgrade to Harmony iQ | BDV Integration Systems, experience vibrant surgical visualization in ultra-high definition detail. Simple 4K routing upgrades for the Harmony iQ and BDV IDSS Integration Systems quickly and easily install within the existing system, allowing you to connect and visualize the 4K imaging devices you prefer.

Upgrade your Operating Room to 4K


Visualization

Vividimage® D Surgical Grade Monitors

  • 27" high definition color surgical display
  • VectorSharp®image enhancement software
  • Glare-free image clarity for enhanced depth perception

Vividimage® 4K Surgical Display

  • 31.1" viewing area
  • Four times the detail of high-definition video
  • Offers deeper color for greater depth perception

Vividimage® W High-Definition Wall Displays

  • 42", 50" and 55” Wall Display options
  • Hospital and Medical-Grade varieties
  • Device (on/off) control streamlines operation

Vividimage® W 4K Wall Displays

  • Large 65" viewing area
  • Delivers four times the detail of HD displays
  • Offers deeper color for greater depth perception

Wireless Vividimage® D Surgical Display

  • 27" high definition wireless surgical display
  • VectorSharp®image enhancement software
  • Proven reliable operation

Connectivity


Harmony® ConnectPoint Video Connectivity System

  • Harmony ConnectPoint systems provide power and video signal connections from a flexible arm attached to any STERIS surgical lighting system

Surgical Lighting Systems

HarmonyAIR® M-Series Surgical Lighting System

  • Pure, white brilliance
  • Superior color rendition
  • Designed to grow with you

HarmonyAIR® G-Series Surgical Lighting System

  • Pure, white brilliance
  • Superior color rendition
  • Suspensions to fit any room configuration

FREE5® Camera System

  • Allows surgeons to view and record the surgical site from virtually any orientation or angle

Perioperative Solutions

RealView® Visual Workflow Management Software

  • See rooms, patients and procedures in real-time
  • Respond immediately to add-on cases, unexpected delays, or cancellations
  • Increase productivity and OR utilization

S.A.F.E. Situational Awareness for Everyone® Display

  • Increase patient safety in the OR
  • Avoid costs associated with adverse events
  • Eliminate communication bottlenecks
  • Increase OR and staff utilization and efficiency

Harmony iQ Perspectives® Image Management System

  • Secure, access-controlled environment for managing uncompromised 1080p HD video captured during surgical procedures
