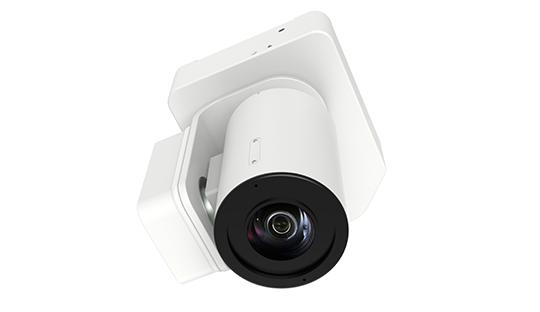

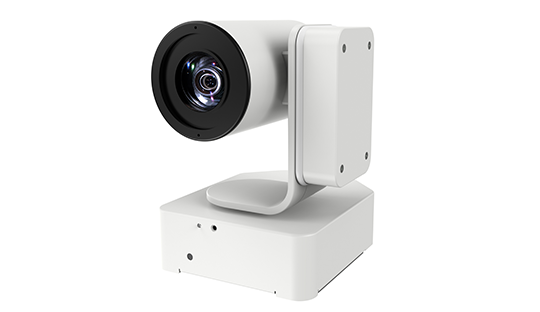

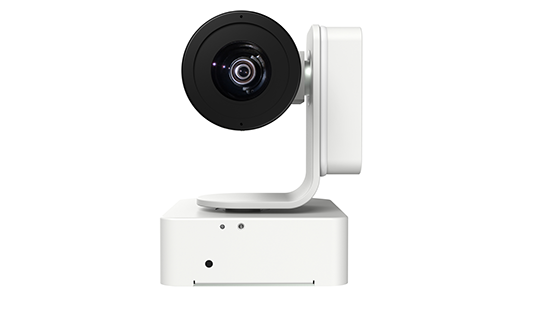

4K Arm Camera

  • Presents vivid, detailed video from the surgical field at 4K 60p resolution
  • Offers pan-tilt-zoom control, 30x optical zoom, and smooth positioning

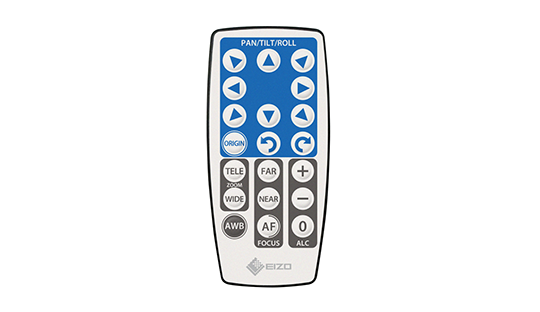

  • Controlled using a compact CCU “Camera Control Unit” or the Handheld Remote Control
  • Can be mounted to the HarmonyAir M-, E- and A-Series Surgical Lighting Systems

REQUEST A QUOTE

This medical-grade surgical field camera system is an essential piece of video integration equipment in the operating environment, offering a view of surgical procedures in 4K ultra high-definition.

How the 4K Arm Camera Works:

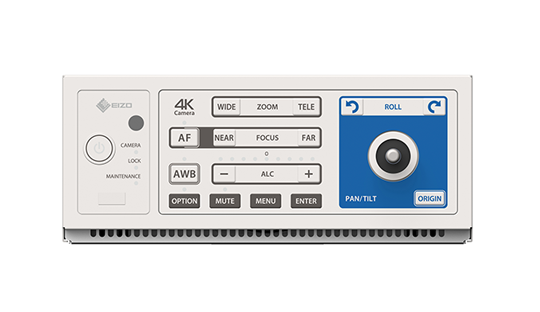

The 4K Arm Camera includes a triaxial camera mount with Pan, Tilt, and Roll (Rotate) and can be controlled using the Camera Control Unit (CCU) and/or the Handheld Remote Control. Additional micro-movement and image management features include Zoom, Focus, Auto White Balance, and Auto Level Control. These features can also be controlled via the CCU or Handheld Remote Control. The Lower Button Panel, located on the CCU, contains four additional buttons (Option, Mute, Menu, and Enter) for on-screen camera control and navigation.

Why the 4K Arm Camera?

  1. Sterile in-field positioning: Positioning of the camera is performed using the sterile monitor handles on the lighting system monitor arm.
  2. Obstruction-free view: The 4K Arm Camera can be attached to a monitor arm, allowing it to be positioned independent of lighting to avoid possible obstructions.
  3. Easy Cleaning: The exterior of the camera can be safely sterilized with alcohol.
  4. Medical Qualifications: The camera meets medical, safety and EMC emission standards.
Feature Detail

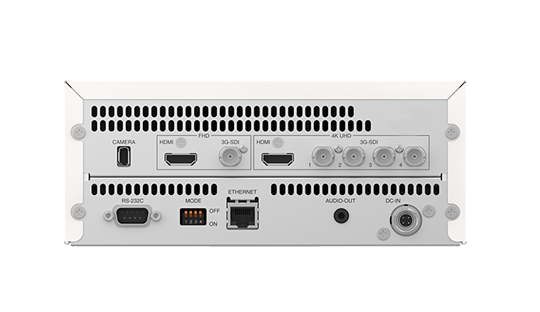

Camera Control Unit Dimensions (H x W x D) 3.4 x 8.3 x 10.6"
Camera Dimensions (H x W x D) 8.3 x 6.3 x 8.05"
4K Format 4K 59.94P/50P
Optical Zoom 30x
Medical Grade Yes, for complete camera system
Microphone Built-in
Lens Roll (Rotate) Yes, +/- 165°
Lens Pan Yes, +/- 170°
Lens Tilt Yes, + 90° / - 30°
