SMARTBAND™ Multi-Band Ligation System
- Complete Kit and Reloading Pack: Includes both a full endoscopic ligation kit and a reloading pack for additional bands
- Engineered Bands: Uniquely designed bands to provide greater compression and gripping force than the competition1
- Band Options: Available in natural latex and options not made with natural rubber latex, each with a 24-month shelf life
Product Overview
During GI bleed management procedures, the SMARTBAND Multi-Band Ligation System is used for banding esophageal varices, including bleeding esophageal varices, at or above the gastroesophageal junction and to ligate internal hemorrhoids.
This SMARTBAND Multi-Band Ligation System offers a complete endoscopic ligation kit and a reloading pack for cases requiring extra bands. Two types of kits and packs are available: ligation bands manufactured with natural rubber latex and not with natural rubber latex. All options offer a 24-month shelf life.
How the SMARTBAND Multi-Band Ligation System works

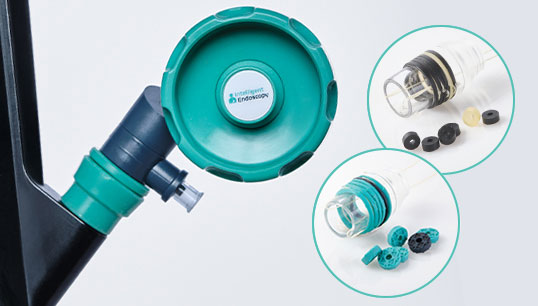

The SMARTBAND Multi-Band Ligation System may be used for GI bleed management to treat acute bleeding from esophageal varices or for the prophylactic treatment of esophageal varices. The SMARTBAND Multi-Band Ligation Kit consists of a ligation handle with a universal connector, loading device, Pentax adaptor, and barrel with six bands.

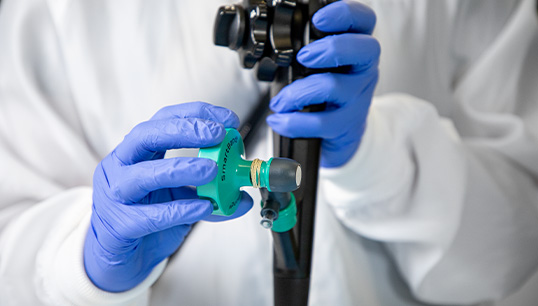

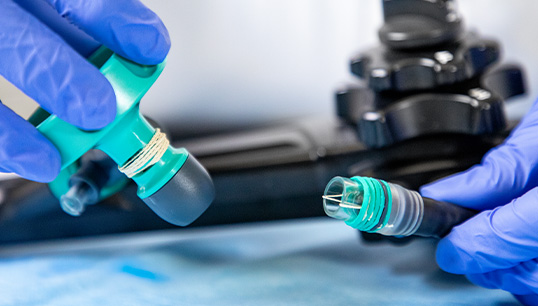

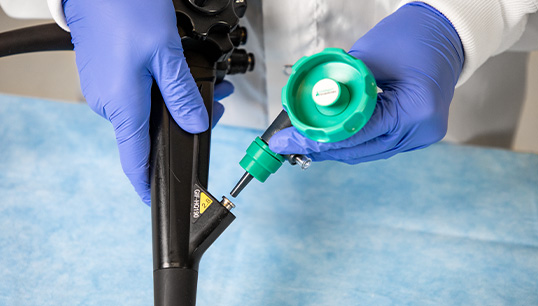

When setting up the endoscopic ligating device, the deployment cord is first passed through the endoscope's working channel using the PermaCoil loading device and then assembled to the ligation handle. The slack is taken out of the deployment cord, and the barrel is fitted to the end of the endoscope. Once completed, the endoscopic ligating device is ready for use in procedures.
The SMARTBAND Multi-Band Ligation Pack is used when additional ligator bands are needed during a band ligation procedure. After the single-use band ligator has already been set up on the endoscope, the empty barrel and deployment thread are removed. Then, to set up the SMARTBAND Multi-Band Ligation Pack, the deployment cord is passed through the endoscope's working channel using the PermaCoil loading device and then assembled to the SMARTBAND Ligation handle. Once complete, the SMARTBAND Multi-Band Ligation System is ready for further band ligation.
Why the SMARTBAND Multi-Band Ligation System?
The SMARTBAND Multi-Band Ligation Kit features:
- Uniquely designed bands to provide greater compression and gripping force than the competition1
- Six backloaded medical bands on a clear, smooth barrel for optimal visualization
- Natural latex bands and bands that are not made with natural rubber latex, both options offering a 24-month shelf life
- A universal connector that connects the handle to the endoscope and is compatible with multiple endoscope styles
- A 10FR inner diameter handle stem that enables maximum suction capabilities
- A dedicated flush port for clearing the working channel during the procedure

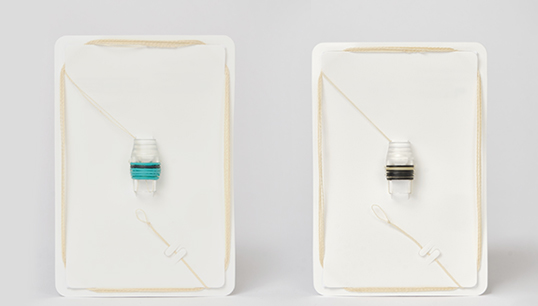

The SMARTBAND Multi-Band Ligation Pack features:
- Ability to load additional bands during a procedure to reduce costs and set up time for cases that require more than six bands
- Specialized UV-protected packaging that maintains band ligation performance for up to 24 months
- Bands that are made with natural latex and bands that are not made with natural rubber latex
1Testing data on file
Shop Now
| Product Number | Description | Endoscope Diameter Compatibility (mm) | # of Bands | |
|---|---|---|---|---|
|
This device is supplied non-sterile and is disposable, single-use only. *This product is made with natural rubber latex. **This product is not made with natural rubber latex. |
||||

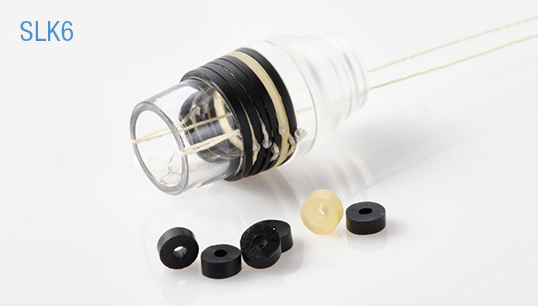

| SLK6 | SMARTBAND™ Multi-Band Ligation Kit* Components: Ligation handle with universal connector, loading device, Pentax adaptor, and barrel with 6 bands |
8.6 - 11.6 | N/A | |

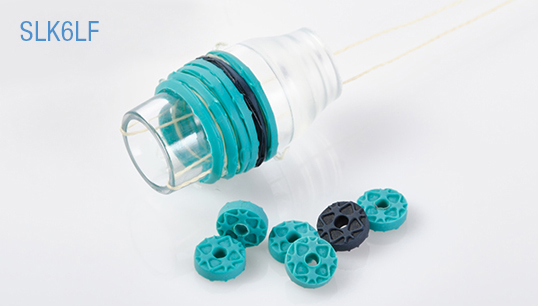

| SLK6LF |
SMARTBAND™ SAFEGRIP™ Multi-Band Ligation Kit** Components: Ligation handle with universal connector, loading device, Pentax adaptor, and barrel with 6 bands |
8.6 - 11.6 | N/A | |
| SLP6 | SMARTBAND™ Multi-Band Ligation Pack* Components: Deployment Cord with Barrel of 6 Bands |
8.6 - 11.6 | 6 | |
| SLP6LF |
SMARTBAND™ SAFEGRIP™ Multi-Band Ligation Pack** Components: Deployment Cord with Barrel of 6 Bands |
8.6 - 11.6 | 6 | |
SmartBand Multi-Band Ligation System –
Set-up Video
SmartBand Multi-Band Ligation System –
Hemorrhoid Banding
SmartBand Multi-Band Ligation System –
Use in Porcine Model
|
SELL SHEET
|
|
|---|---|
| Document # | Document Title |
| SMARTBAND INTL SPEC SHEET | |
