ASSURANCE™ Clip
- Key Benefit: 360° one-to-one rotation for controlled placement designed for GI hemostasis and mucosal defect closure

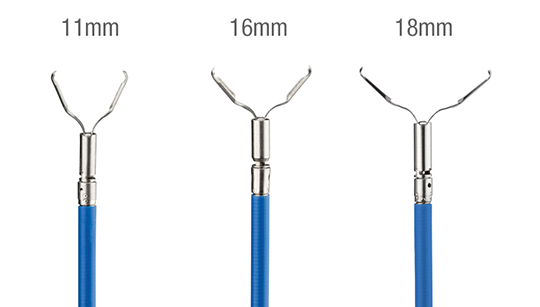

- Product Specifications: Available in 9, 11, 13, 16, and 18mm opening widths and a clip length of 12.5 – 14.5mm
- Product Features: Short retained clip length for improved visualization and repositionable before clip deployment
Product Overview
Full Indications:
The ASSURANCE™ Hemostatic Clip is indicated for endoscopic clip placement within the gastrointestinal tract for the purpose of:
- Endoscopic marking
- Hemostasis for:
- Mucosal/sub-mucosal defects <3cm
- Bleeding ulcers
- Arteries <2mm
- Polyps <1.5cm in diameter
- Diverticula in the colon
- Prophylactic clipping to reduce the risk of delayed bleeding post-lesion resection
- Anchoring to affix jejunal feeding tubes to the wall of the small bowel
- As a supplementary method, closure of gastrointestinal (GI) tract luminal perforations <20mm that can be treated conservatively
How the ASSURANCE Clip Works and Affects Patient Flow and Outcomes
Hemostatic clips are indicated for the treatment of gastrointestinal bleeding and have been shown to be more effective than other modalities, such as epinephrine injection alone.1 Prophylactic endoscopic clip closure of large mucosal defects following polyp resection has also been demonstrated to reduce the risk of post-procedure bleeding. 2,3
The ASSURANCE hemostatic clip offers 360-degree, one-to-one rotation, the ability to reposition the clip multiple times prior to deployment, opening widths of 9, 11, 13, 16, and 18 millimeters, and a retained clip length of 12.5 - 14.5mm.
Why the ASSURANCE Clip?
Designed for physicians who require precise clip placement and reliable closure, the ASSURANCE Hemostasis Clip provides control and maneuverability in routine and advanced endoscopic procedures.
Clinical Benefits

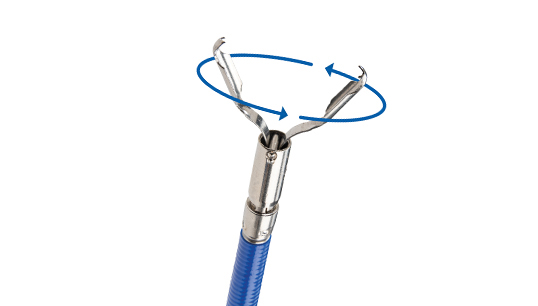

- Precise Rotation: True 360° one-to-one rotation helps support accurate clip orientation and placement
- Enhanced Maneuverability: A shorter retained clip length allows for improved visualization when deploying multiple clips and navigating challenging anatomy
- Reposition Before Deployment: Open and close the clip multiple times before deployment to optimize placement
- Single-Step Deployment: Audible and tactile feedback help confirm deployment
- Versatile Applications: Suitable for GI hemostasis, endoscopic mucosal resection (EMR) defect closure, post-polypectomy bleeding prevention, and luminal defect closure where clinically appropriate
Clinical Applications
The ASSURANCE Hemostasis Clip may be used in a variety of gastrointestinal procedures, including:
- Hemostasis of bleeding ulcers
- Management of GI bleeding
- Colonoscopy procedures
- EMR defect closure
- Post-polypectomy prophylactic closure
- Mucosal and submucosal defect closure
- Endoscopic marking
- Closure of eligible luminal perforations
- Anchoring feeding tubes
WARNINGS AND PRECAUTIONS:
Precaution: It is recommended that healthcare providers distribute Patient Implant Cards with the name of the clip and the date it was placed.
Warning: Failure to follow the recommended MR Conditional labeling may result in a deployed GI hemoclip dislodging from tissue or heating of tissue at the GI hemoclip location. A GI hemoclip dislodgement may result in rebleeding requiring additional intervention or surgery, serious injury, or death.
Shop Now
Browse a complete Item Number list and easily reorder ASSURANCE™ Clip products on Shop STERIS.
| Product Number | Description | Minimum Working Channel (mm) | Catheter Length (cm) | Released Length (mm) | Opening Width (mm) | Sterile | Unit/Box | |
|---|---|---|---|---|---|---|---|---|
| BX00711881 | ASSURANCE clip – 9mm | 2.8 | 230 | 12.5 | 9 | Yes | 10 | |
| BX00711882 | ASSURANCE clip – 11mm | 2.8 | 230 | 12.5 | 11 | Yes | 10 | |
| BX00711883 | ASSURANCE clip – 13mm | 2.8 | 230 | 12.5 | 13 | Yes | 10 | |
| BX00711884 | ASSURANCE clip – 16mm | 2.8 | 230 | 12.5 | 16 | Yes | 10 | |
| BX00711885 | ASSURANCE clip – 18mm | 2.8 | 230 | 14.5 | 18 | Yes | 10 |
