Pass-Thru Warming Cabinet

  • Dual heating chambers with 6.2 cu. ft. total capacity
  • Access from both sides to minimize traffic and movement in the OR
  • Intended for warming of IV fluids, irrigation solutions, linens and blankets
  • Solid stainless steel doors and adjustable shelving

REQUEST A QUOTE

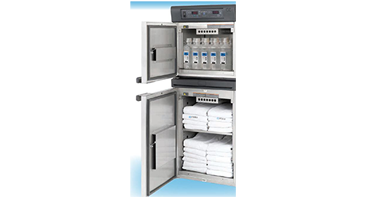

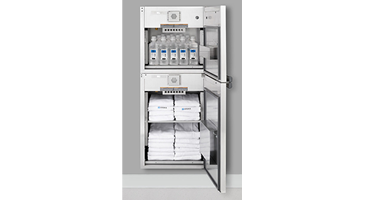

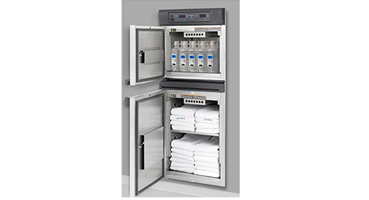

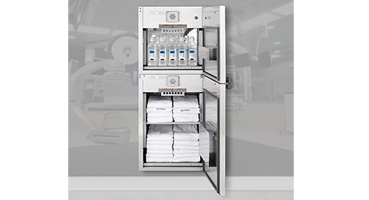

The AMSCO Pass-Thru Warming Cabinet provides the convenience of access inside and outside of the operating room and gives staff constant inventory flow and direct access to supplies. The Pass-Thru Warming Cabinet can tackle the most demanding patient warming needs with a capacity of 6.2 cu. ft. and offers the versatility of two independently controlled warming compartments.

The AMSCO Pass-Thru Warming Cabinet features:

  • Increased productivity with improved access to supplies
  • Use with IV fluids, irrigation solutions, linens and blankets
  • Temperature lock-out for consistency and control
  • A design to meet AORN Recommended Practices for a Safe Environment of Care, including technology to warm IV fluids (RP VIII.b.3)
  • Celsius and Fahrenheit selection for convenience and accuracy
  • Assured digital temperature monitoring and display
  • Ensured security with door and temperature locks
  • Flexible organization and generous storage capacity
  • Superior durability and reliability
  • Solid stainless steel doors

AMSCO Pass-Thru Warming Cabinets can be customized with:

  • Full-recessed or partially-recessed installation
  • 18" (457mm) depth and 24" (610 mm) width
  • Doors: Solid stainless steel
  • Compartments: 2
  • Total Capacity: 6.2 cu. ft. (2.1 cu. ft. upper / 4.1 cu. ft. lower)
  • Depth: 18" (521mm)
  • Width: 24" (673mm
  • Installation: Fully-recessed (16 3/8" wall thickness) or partially-recessed (8 1/2" wall thickness)
  • Outside dimensions (H x W x D): 60 x 24 x 18" (1524 x 610 x 457 mm)
  • Inside Dimensions (H x W x D): Upper chamber: 12 1/4 x 19 x 15 1/4" (311 x 483 x 387mm) / Lower chamber: 24 3/8 x 19 x 15 1/4" (619 x 483 x 387mm)
  • Temperature Range: 90°F (32°C) to 160°F (71°C)

AMSCO Warming Cabinets

Single Compartment Warming Cabinet

  • Up to 4.2 cu. ft. total capacity
  • Compact size to fit any desired space

Dual Compartment Warming Cabinet

  • Up to 15.8 cu. ft. total capacity
  • Two independently warmed compartments

Mid-Size Warming Cabinet

  • 7.2 cu. ft. total capacity
  • Single compartment unit
  • Electronic door locks and data reporting

OR Storage Console Warming Cabinet

  • 6.2 cu. ft. capacity
  • Dual compartment unit
  • Allows access from both inside and outside the OR

Surgical Equipment

OR Storage Solutions

  • Stationary OR storage cabinets
  • Endoscope storage cabinets
  • Mobile storage carts

Scrub Sinks

  • Available with one, two, or three stations
  • Equipped with non-aerating rose spray faucet heads

Surgical Tables

  • General surgical tables
  • Orthopedic surgical tables
  • Radiolucent imaging surgical tables

Surgical Lights

  • Surgical, exam, and labor and delivery lighting systems
  • Deliver pure white light, and enhancement of deep saturated reds and colors

Surgical Displays

  • Surgical field and wall-mounted displays
  • Deliver HD and 4K visualization within the surgical field

OR Integration

  • Designed to improve workflow, procedure guidance and peer collaboration
  • Deliver scalable solutions to best fit the diverse needs of the OR
Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.

BROCHURE
Document # Document Title
MAXIMIZE WORKFLOW EFFICIENCIES- AMSCO WARMING CABINETS PASS-THRU MODEL
CAPITAL EQUIPMENT SOLUTIONS FOR ASC AND SMALL FACILITIES
CLEAN EFFICIENT ORGANIZED CASE GOODS SOLUTIONS FOR STERIS
AMBULATORY SURGERY CENTER SOLUTIONS BROCHURE
WARMING CABINETS BROCHURE
TOTAL SOLUTION STANDARD OR BROCHURE
TECH DATA
Document # Document Title
AMSCO OR STORAGE PASS-THRU CONSOLE WITH DIGITAL PASS-THRU WARMING CABINET
