Dual Compartment Warming Cabinet – Blanket Warming Cabinet

AMSCO^® Dual Compartment Warming Cabinets

Features dual heating chambers with up to 15.8 cu. ft. total capacity

Intended for warming of IV fluids, irrigation solutions, linens and blankets

Meets Association of periOperative Registered Nurses (AORN) Recommended Practices for a Safe Environment of Care

Available with glass or stainless steel door and adjustable shelving

Optional electronic numeric keypad door lock and electronic data reporting with USB port

The AMSCO Dual Compartment Warming Cabinet is designed to address high-volume patient warming needs. This blanket warming cabinet model provides up to 15.8 cu. ft. capacity and offers the versatility of two independently controlled warming compartments.

How the AMSCO Dual Compartment Warming Cabinet Works

These medical warming cabinets can store and warm sterile intravenous fluids (IV fluids), surgical irrigation fluids, and linens and blankets meeting AORN-adopted Joint Commission guidelines.

The AMSCO Dual Compartment Warming Cabinet features:

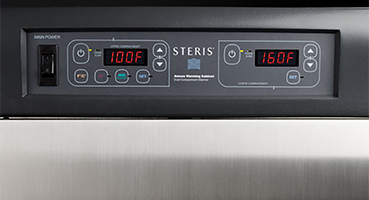

LED readout for instant temperature confirmation
Superior durable materials to withstand years of use
Adjustable shelving for flexible organization and storage
Reliable heating with uniform and efficient heat transfer
Visual access to inventory with dual-pane tempered glass or traditional solid steel doors
A design to meet AORN Recommended Practices for a Safe Environment of Care, including technology to warm IV fluids (RP VIII.b.3)
Temperature lock-out for consistency and control
Celsius and Fahrenheit selection for convenience and accuracy

Why the AMSCO Dual Compartment Warming Cabinet?

AMSCO Dual Compartment Warming Cabinets are customizable to suit your needs, with options including:

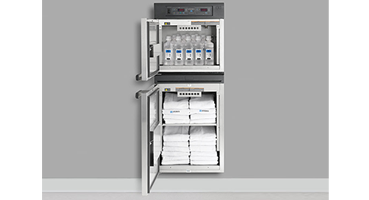

Free-standing or recessed installation

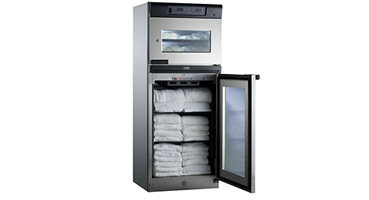

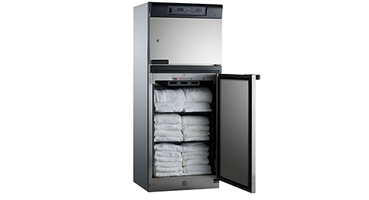

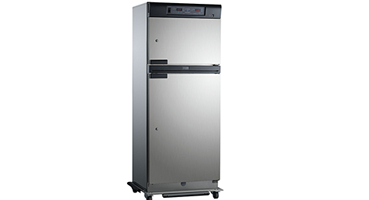

Steel or dual-paned tempered glass doors
18" (457mm) or 24" (610 mm) depth

Optional premium features to advance patient safety and compliance include:

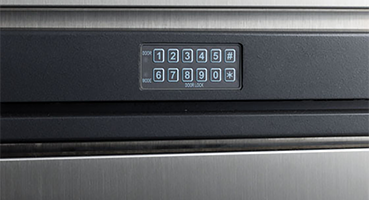

Electronic keyless and mechanical key door locks for security
Digital data recording with USB connection for electronic record keeping

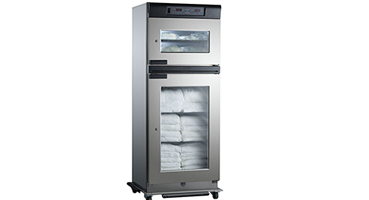

Optional mobile base (24" depth model only)

REQUEST A QUOTE

Feature	Description
Door Option	Steel or dual-pane tempered glass
Compartments	2
Total Capacity at 18" Depth	11.6 cu. ft. (3.1 cu. ft. upper/8.5 cu. ft. lower)
Total Capacity at 24" Depth	15.8 cu. ft. (4.2 cu. ft. upper/11.6 cu. ft. lower)
Installation	Free-standing or recessed
Outside Dimensions (H x W x D) at 18" Depth	74 3/4 x 30 x 20 1/2" (1899 x 726 x 521 mm)
Outside Dimensions (H x W x D) at 24" Depth	74 3/4 x 30 x 26 1/2" (1899 x 726 x 673 mm)
Inside Dimensions (H x W x D) at 18" Depth	Upper chamber: 13 1/2 x 24 x 16 7/8" (343 x 610 x 429 mm) Lower chamber: 36 1/2" x 24 x 16 7/8" (927 x 610 x 429 mm)
Inside Dimensions (H x W x D) at 24" Depth	Upper chamber: 13 1/2 x 24 x 22 7/8" (343 x 610 x 581 mm) Lower chamber: 36 1/2 x 24 x 22 7/8" (927 x 610 x 581 mm)
Mobile Base	Optional on 24" depth model only
Temperature Range	90°F (32°C) to 160°F (71°C)
Electronic Door Locks	Optional
Electronic Data Recording	Optional

Other AMSCO Warming Cabinets

Single Compartment Warming Cabinet

Up to 4.2 cu. ft. total capacity
Compact size to fit any desired space

Mid-Size Warming Cabinet

7.2 cu. ft. total capacity
Single compartment unit

OR Storage Console Warming Cabinet

Dual heating chambers with up to 9.5 cu. ft. total capacity
Combined with the AMSCO Operating Room (OR) Storage Console for a sleek, integrated and organized OR storage solution

Pass-Thru Warming Cabinet

6.2 cu. ft. capacity
Dual compartment unit

Genuine STERIS Parts for your STERIS WARMING CABINETS

Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.

VIEW SERVICE PARTS

BROCHURE
Document #	Document Title
M10692EN	CASE GOODS PORTFOLIO BROCHURE
M10692EN-CA	CASE GOODS PORTFOLIO BROCHURE
M10692FR	CASE GOODS PORTFOLIO BROCHURE
M3387EN	WARMING CABINETS BROCHURE
M3387EN-CA	WARMING CABINETS BROCHURE
M3387FR	WARMING CABINETS BROCHURE
M9126EN	SECURECARE WARMING CABINET REVIVE PROGRAM BROCHURE
