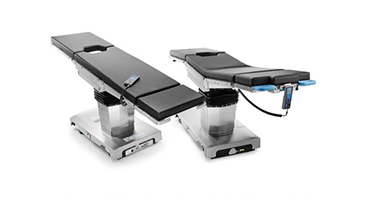

Easily upgraded General Surgical Table
Easily upgraded General Surgical Table
General Surgical Table imaging
General Surgical Table imaging
General Surgical Table Removable head section
General Surgical Table Removable head section
General Surgical Table removable leg section
General Surgical Table removable leg section
General Surgical Table for bariatric procedures
General Surgical Table for bariatric procedures

STERIS® 5085 General Surgical Table

The STERIS 5085 General Surgical Table is a mobile, electrohydraulically operated surgical table that delivers with industry-leading innovations, specifically designed for the OR of today and tomorrow.





The STERIS 5085 General Surgical Table quickly and easily adapts to virtually every surgical specialty. Higher weight limit, exceptionally low height and a large imaging area means no more inflexible, dedicated specialty tables.

Quick, one-touch patient posturing is enabled by the 5085 Surgical Table's intuitive hand control's pre-programmed positions for rotation and beach chair for easy set up. The surgical table’s easy-to-read LCD window telegraphs table positioning data to caregivers, even in a darkened room.

The STERIS 5085 Surgical Table:

  • Accommodates virtually all patients with generous weight and height ranges
  • Provides unrestricted perineal access with removable leg section
  • Optional Featherweight Leg Section complies with AORN Safe Handling principles
  • Enhances lateral procedures with a powered, radiolucent kidney elevator
  • Provides outstanding access for C-arm, permitting clear high-quality images crucial to MIS, cardiothoracic, orthopedic and neurosurgical procedures
  • Facilitates quick and safe patient positioning with an easy-to-use, easy-to-read hand control
  • Contours to virtually all patient postures with four section tabletop
  • Compensates for uneven OR floors with self-leveling floor locks
  • Prevents sectional and table base collisions with the Auto Limit Sensor
  • Compatible with a wide array of previously purchased accessories

Flexible Design

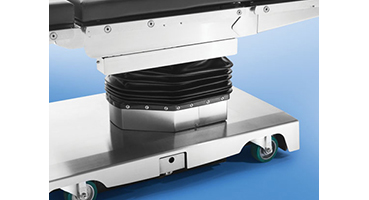

The 5085 Surgical Table's strong, yet flexible design provides an exceptionally low height for MIS, robotic, and bariatric techniques without sacrificing the height needed for orthopedic and cardiac procedures.

Clear Imaging

The surgical table's large imaging area permits clear, high quality images crucial for today's MIS, cardiothoracic, orthopedic and neurological procedures, while the narrow column and generous longitudinal slide allows 100% access for the C-arm and surgical team without patient reorientation.

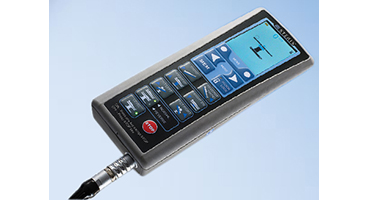

Intuitive Controls

The 5085 Surgical Table's user-friendly, data-rich hand control offers:

  • An easy-to-read LCD window – provides information on table positioning, service requirements, and potential interference
  • Pre-programmed, backlit buttons – quick, one-touch patient posturing
  • 4-section tabletop – articulates to virtually every patient posture
  • LEDs – highlight key buttons such as floor lock, normal and reverse patient orientation
  • Touch pads – include menu advancement, programmed positions, and more

Featherweight Leg Section

The modular, removable leg section's carbon fiber construction makes it strong, lightweight and ideal for imaging. The surgical table's featherweight leg section allows for flexibility in movement and function to experience standard articulation capabilities.



STERIS 5085 General Surgical Table: Femoro Popliteal Bypass

Femoro-Popliteal

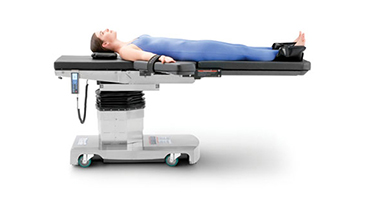

STERIS 5085 General Surgical Table: Cardiovascular

Cardiovascular

STERIS 5085 General Surgical Table: Cystoscopy/Urology/GYN

Cystoscopy/Urology/GYN

STERIS 5085 General Surgical Table: Sitting Neurosurgery

Sitting Neurosurgery

STERIS 5085 General Surgical Table: Ophthalmic/ENT

Ophthalmic/ENT

STERIS 5085 General Surgical Table: Bariatric/Split Leg

Bariatric/Split Leg

STERIS 5085 General Surgical Table: Kidney & Thoracic

Kidney & Thoracic

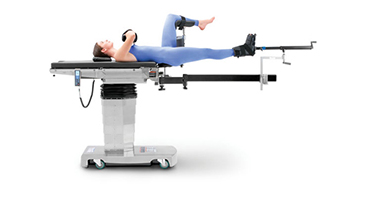

STERIS 5085 General Surgical Table: Orthopedic

Orthopedic

STERIS 5085 General Surgical Table: Shoulder Chair

Shoulder Chair

Other Postures

Total Hip
Prone Neurosurgery
Spinal Neurosurgery
Endovascular

Lateral Neurosurgery
Kneeling Neurosurgery
Nisson Fundoplication

Lithotomy
Total Hip
Gall Bladder & Thoracic

Specification Description
Table Length 81" (2057 mm)
Table Width 20" (508 mm) (28° with extenders)
Table Height Range 22.8" to 42.5" (581 to 1080 mm)
Table Slide Range 9" (227 mm) to head, 9" to foot (18 inches total)
Patient Weight Capacity 1,200 lbs. (544 kg) patient support, including raise/lower (centered on the column)
1,000 lbs (454 kg) full table articulation (centered on the column)
600 lbs (272 kg) full table articulation, including slide
Table Shipping Weight 820 lbs. (372 kg)
Trendelenburg/Reverse 30°/30°
Lateral Tilt (left/right) 20°/20°
Head Section +90° to -90° (15° increments)
Back Section +80° to -40°
Leg Section 0/-105° (removable)
Flex/Reflex 140° / 100°
Manual Override Yes
Perneal Cut-out Yes
Kidney Elevator 4" (110 mm) powered
