STERIS 4085 Surgical Table

Outstanding versatility and value

The STERIS 4085 General Surgical Table's design gives a surgical team the flexibility, control and convenience they need for today's patients and procedures.

Features for a wide array of procedures:

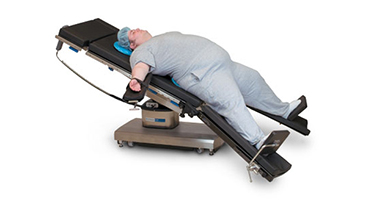

Accommodates virtually all patients with generous weight and height ranges

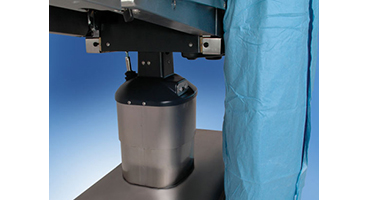

Provides outstanding access for C-arm, permitting high quality images crucial to cardiothoracic, orthopedic and neurosurgical procedures
Contours to virtually all patient postures with four section tabletop

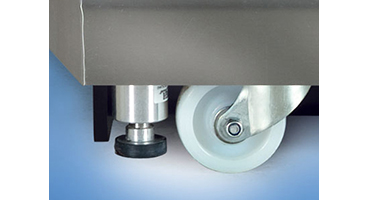

Compensates for uneven OR floors with self-leveling floor locks

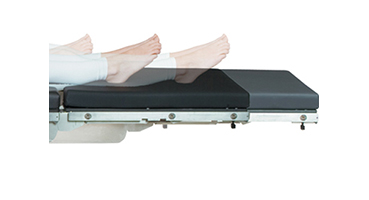

Radiolucent 18" sliding top for total body imaging (43" upper and 43" lower body C-arm access)

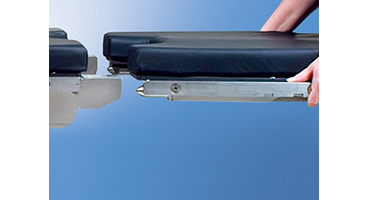

Provides unrestricted perineal access with removable leg section
Optional Featherweight Leg Section complies with AORN Safe Handling Principles
Enhances lateral procedures with a powered, radiolucent kidney elevator

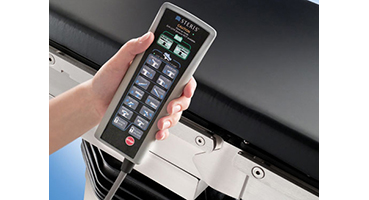

Easy to use, easy to read hand control with digital data window
Prevents sectional and table base collisions with the Auto Limit Sensor™
Compatible with a wide array of previously purchased accessories

Customer Testimonial

REQUEST A QUOTE

Femoro-Popliteal	Cardiovascular	Cystoscopy/Urology/GYN

Endourology	Ophthalmic/ENT	Bariatric/Split Leg

Kidney & Thoracic	Orthopedic	Shoulder Chair

Total Hip	Prone Neurosurgery	Spinal Neurosurgery

Lateral Neurosurgery	Kneeling Neurosurgery	Nisson Fundoplication

Gall Bladder and Thoracic	Endovascular	Gynecology

SPECIFICATION	DESCRIPTION
Table Length	81" (2057 mm)
Table Width	20" (508 mm) (28° with extenders)
Table Height Range	26" to 45" (660 to 1143 mm)

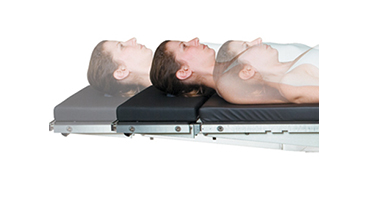

Table Slide Range	9" (227 mm) to head, 9" to foot (18" total)
Patient Weight Capacity	1,100 lbs. (500 kg) patient support, including raise/lower (centered on the column) 1,000 lbs (454 kg) full table articulation (centered on the column) 600 lbs (272 kg) full table articulation, including slide
Table Shipping Weight	560 lbs. (254 kg)
Trendelenburg / Reverse	30° / 30°
Lateral Tilt (left/right)	20° / 20°
Head Section	+90° to -90°
Back Section	+80° to -40°
Leg Section	0° to -105° (removable)
Flex/Reflex	140° / 100°
Manual Override	Yes
Perneal Cut-out	Yes
Kidney Elevator	4" powered radiolucent

Service Manual
	STERIS 4085 General Surgical Table Maintenance Manual

In-Service Video

Customer Testimonial

In-Service Video

GenUine steris parts for your steris surgical tables

VIEW SERVICE PARTS

Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.

surgical table accessories

Anesthesia Armboard

Lightweight, carbon fiber design
Distal end trigger for full horizontal rotation
Universal compatibility to North American standard siderails

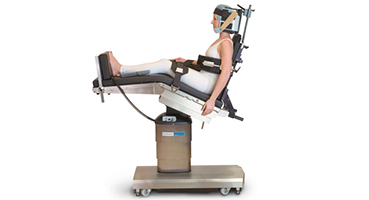

Shoulder Chair

Used for open or arthroscopic procedures
Features a unique, multi-axis head positioning capability
Includes head restraint device and integral lateral brace

Powerlift Stirrups

Ergonomic, pneumatic lift-assist for safe patient handling
Single handle action for full articulation and range of motion

Pad Positioners

Used in supplement with tabletop pads for promotion of proper patient positioning
Provide stability and pressure management

surgical tables

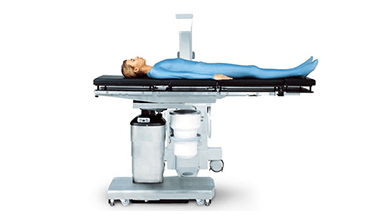

STERIS 5085 SRT Surgical Table
