Pressure Reduction System (PRS) Surgical Table Pads

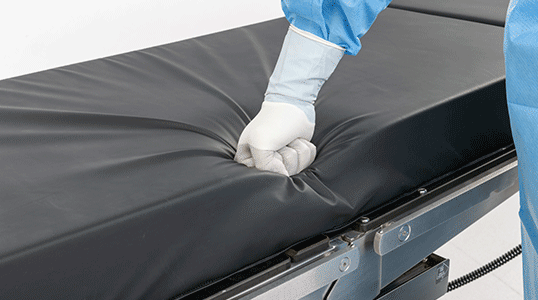

  • Offer excellent pressure management to reduce the potential for tissue damage and pressure ulcers while providing comfort for the patient

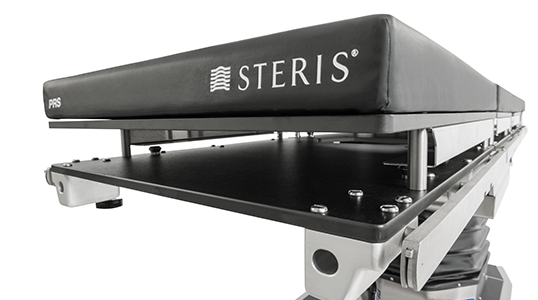

  • Offer minimal attenuation of fluoroscopic X-ray for clear image quality
  • Reduces the risk of disease transmission in the Operation Room (OR) by eliminating hook-and-loop material on pad
  • Manufactured with ultra-sonically welded seams to prevent fluid intrusion

REQUEST A QUOTE

STERIS Pressure Reduction System (PRS) Pads are premium pressure management tabletop pads for surgical tables designed for patient comfort and help in the prevention of pressure ulcers during surgery. STERIS PRS Pads feature mushroom caps instead of hook-and loop-fasteners, and are designed to simplify the placement, removal, and cleaning of tabletop pads.

How STERIS Pressure Reduction System Pads Work

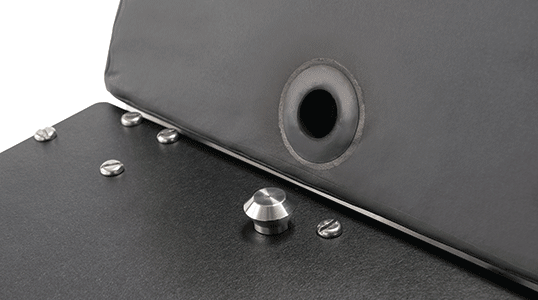

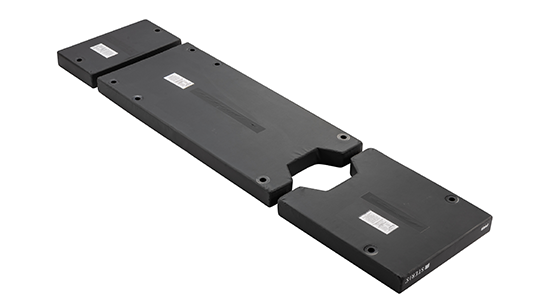

STERIS Pressure Reduction System (PRS) Pads offer a unique alternative to standard TLT (Tri-Layer Technology) pressure management pads in the way they attach to the surgical table. STERIS PRS Pads are the first table pads available from STERIS without hook-and-loop (VELCRO®-brand) fasteners and instead, PRS pads use a unique metal retainer to secure the pad to the tabletop surface. There are ten mushroom caps on the table surface to retain the mattress pads via corresponding rubber cups on the pad’s underside that mate with metal retainers.

The reduction or complete elimination of hook-and-loop fasteners is important for the modern Operating Room. Hook-and-loop material on surgical pads can be challenging to clean and disinfect properly as it can be contaminated with tape residue, fabric particles, and becomes very difficult to clean when soaked with blood or other bodily fluids.

Why STERIS Pressure Reduction System Pads?

Designed for patient safety and comfort as well as OR infection prevention, STERIS PRS Pads:

  • Offer excellent pressure management to reduce the potential for tissue damage and pressure ulcers while providing comfort for the patient
  • Offer minimal attenuation of fluoroscopic X-ray for clear image quality
  • Help reduce risk of infectious disease transmission in the OR with mushroom cap technology
  • Manufactured with ultra-sonically welded seams to prevent fluid intrusion
  • Manufactured from a 4-way stretch knit fabric that is coated with a proprietary polyurethane coating that resists degradation from wear-and tear and OR cleaning chemicals

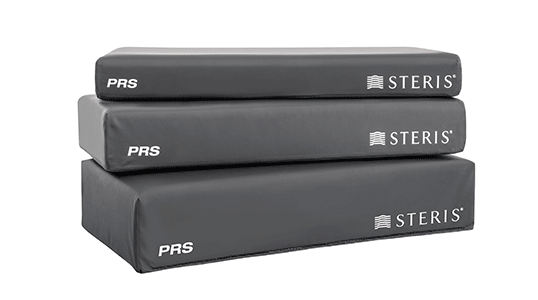

  • Available in a variety of thicknesses
  • Feature a unique air vent allows air to flow in-and-out of the foam interior but resists the intrusion of liquids. No more vent flaps!
Type

Table
Compatibility

Description

Item Number

Thickness

Length

Width

2" PRS Tabletop Pads

4095, 5085 Harmony, 5095

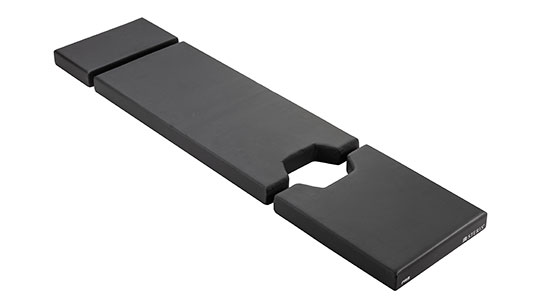

Complete Set, 3 Pieces w/ Mushroom Attachment

BF272

2.4" - 20"
Complete Set, 3 Pieces w/ Mushroom Att. for FWLS BF016 2.4" - 20"
Head Section Only w/ Mushroom Attachment BF273 2.4" 10.9" 20"
Back/Seat Section Only w/ Mushroom Attachment
BF274
2.4" 44" 20"
Leg Section Only w/ Mushroom Attachment
BF275
2.4" 23.4" 20"
Leg Section w/ Mushroom Att. w/out Perineal Cutout
BF276
2.4" 23.4" 20"
3" PRS Tabletop Pads 4095, 5085 Harmony, 5095 Complete Set, 3 Pieces w/ Mushroom Attachment BF279 3.1" - 20"
Head Section Only w/ Mushroom Attachment BF280 3.1" 10.9" 20"
Back/Seat Section Only w/ Mushroom Attachment BF281 3.1" 44" 20"
Leg Section Only w/ Mushroom Attachment BF282 3.1" 23.4" 20"
Leg Section w/ Mushroom Att. w/out Perineal Cutout BF283 3.1" 23.4" 20"
4" PRS Tabletop Pads 4095, 5085 Harmony, 5095              Complete Set, 3 Pieces w/ Mushroom Attachment BF245 4" - 20"
Head Section Only w/ Mushroom Attachment BF246 4" 10.9" 20"
Back / Seat Section Only w/ Mushroom Attachment BF247 4" 44" 20"
Leg Section Only w/ Mushroom Attachment BF248 4" 23.4" 20"
Leg Section w/ Mushroom Att. w/out Perineal Cutout BF249 4" 23.4" 20"

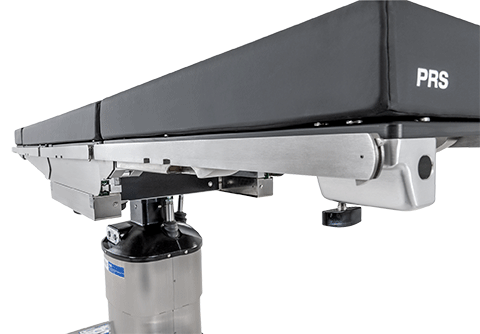

Surgical Table Compatibility:

NOTE: Other STERIS table models can accept PRS pads if the tabletop is retrofitted with Mushroom Caps. STERIS 4085, 5085 and 5085 SRT models can have Mushroom Caps added via conversion kits (BF223, BF224, or BF225). Contact a STERIS Representative for more information.

Fabrication:

  • 4-way stretch knit fabric backing
  • Polyurethane-coated (with proprietary additives)
  • Ultrasonic Welded Seams
  • Sealed Air Vent
  • Mushroom Cap Fastener

Does not contain natural latex.

Compliant to the following Flame Resistance and/or Flammability Ratings:

  • California Technical Bulletin 117 (CAL 117:2013)
  • California Technical Bulletin 129 (CAL 129)
Product Number Thickness Surgical Table Compatibility Description

BF272

2”

4095, 5095, 5085 Harmony

Complete Set, 3 Pieces w/ Mushroom Attachment

BF016

2”

4095, 5095, 5085 Harmony

Complete Set, 3 Pieces w/ Mushroom Att. for FWLS

BF273

2”

4095, 5095, 5085 Harmony

Head Section Only w/ Mushroom Attachment

BF274

2”

4095, 5095, 5085 Harmony

Back / Seat Section Only w/ Mushroom Attachment

BF275

2”

4095, 5095, 5085 Harmony

Leg Section Only w/ Mushroom Attachment

BF276

2”

4095, 5095, 5085 Harmony

Leg Section w/ Mushroom Att. w/out Perineal Cutout

BF279

3”

4095, 5095, 5085 Harmony

Complete Set, 3 Pieces w/ Mushroom Attachment

BF280

3”

4095, 5095, 5085 Harmony

Head Section Only w/ Mushroom Attachment

BF281

3”

4095, 5095, 5085 Harmony

Back / Seat Section Only w/ Mushroom Attachment

BF282

3”

4095, 5095, 5085 Harmony

Leg Section Only w/ Mushroom Attachment

BF283

3”

4095, 5095, 5085 Harmony

Leg Section w/ Mushroom Att. w/out Perineal Cutout

BF245

4”

5085 Harmony

Complete Set, 3 Pieces w/ Mushroom Attachment

BF246

4”

5085 Harmony

Head Section Only w/ Mushroom Attachment

BF247

4”

5085 Harmony

Back / Seat Section Only w/ Mushroom Attachment

BF248

4”

5085 Harmony

Leg Section Only w/ Mushroom Attachment

BF249

4”

5085 Harmony

Leg Section w/ Mushroom Att. w/out Perineal Cutout
