8" Bariatric Table Width Extenders

  • Extends table width from 20" to 36" where needed
  • Attaches to any OR table rail with blade clamp (sold separately)
  • Adjustable bariatric table extender height eliminates need for multiple-size pads
  • 8" wide and available in lengths of 15" or 11"

REQUEST A QUOTE

Shop Now

Product Overview

The 8” Bariatric Table Width Extenders mount on the surgical table side rail offering firm support of patient girth over the tabletop during general, bariatric, thoracic, or any procedure demanding a wider surgical platform that accommodates advanced patient size. These surgical table width extenders are sold individually and are available in two sizes:

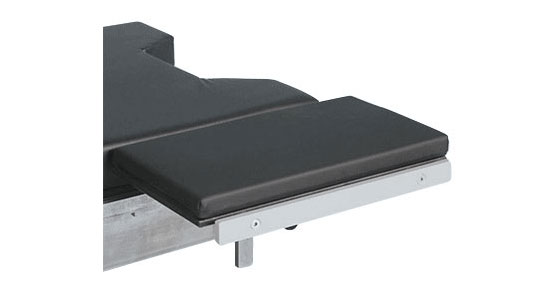

  • BF596: 15” L X 8” W

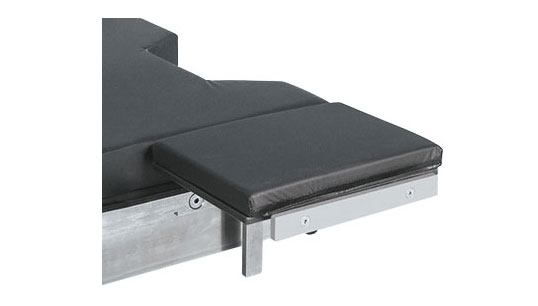

  • BF597: 11” L X 8” W

The Bariatric Table Width Extenders attach to any operating table with standard US rail system. Staff can easily raise and lower the height of the extension to be level with surgical table, either with or without X-ray tops. Included with this surgical table width extender is a 1” pad. Each width extender requires a siderail clamp that allows for 1" x 3/8" flat bar stock (sold separately).

The Bariatric Table Width Extenders provide on-demand, point-of-use flexibility when a wider table is needed to accommodate bariatric patients.

Go to Top of Page


Specifications

  • 1” thick pad attached via hook-and-loop material.
  • Required for Use/Install (each):

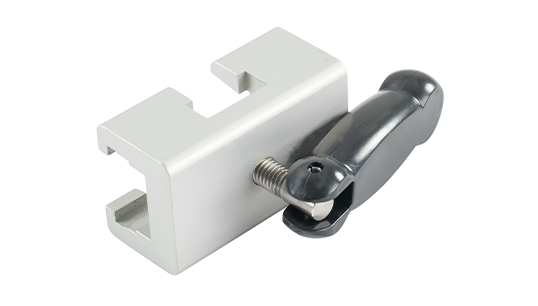

    • A siderail clamp that allows for 1" x 3/8" flat bar stock (sold separately)
  • Materials contain no natural rubber latex.
Go to Top of Page


Shop Now

Product Number Description Dimensions
BF596 BARIATRIC TABLE WIDTH EXTENDER (15”L X 8”W) 15” L x 8” W x 8” H
BF597 BARIATRIC TABLE WIDTH EXTENDER (11”L X 8”W) 11” L x 8” W x 8” H
