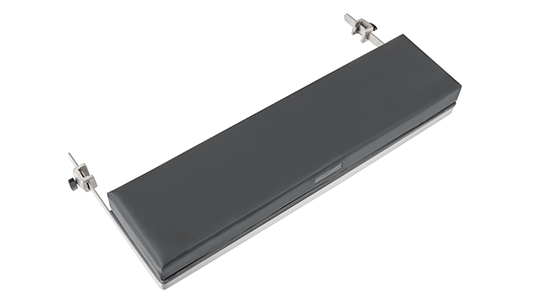

Bariatric Foot Extension
- Accommodates STERIS general surgical tables with the Bariatric Foot Extenders attached to the table’s siderails
- Lightweight for ergonomic handling and 8” wider than the standard foot extension
- Radiolucent materials enable X-ray & fluoroscopic imaging
- Intended for perpendicular or horizontal attachment and supplied with a pair of Siderail Locks
Product Overview
Number: BF542 / BF00261 / BF00262

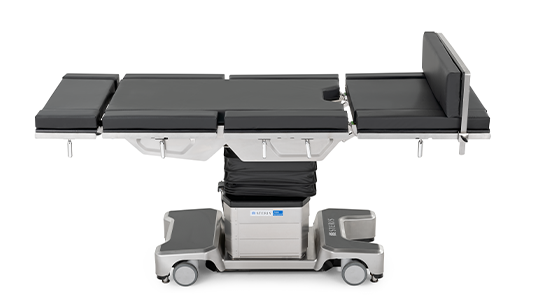

When applied to general surgical tables perpendicularly, the Bariatric Foot Extension supports patient's feet. It is utilized when STERIS Bariatric Width Extenders are attached to the table's siderails. Footboards assist in preventing nerve damage and unintended patient movement in reverse Trendelenburg. When applied to general surgical tables horizontally, the bariatric foot extender adds an additional 8" of tabletop length to support patient's feet, especially for taller patients.
Weight Capacity:
Maximum patient weight capacity is equivalent to the table's capacity.
Most models include a 2-1/4" TLT pressure management pad, but some can be purchased without one. The bariatric foot extension includes a pair of Siderail Locks (BF133).
Table Compatibility:
BF542: Bariatric model compatible with AMSCO 3000-series, STERIS 4000- and 5000-series surgical tables, and STERIS CMAX (NA only, gen. 1) surgical tables.
BF00261 (without pad) / BF00262 (with pad): Bariatric model compatible with STERIS 7000-series surgical tables
Standard width models are compatible with all STERIS general surgical tables without table width extenders installed.
Specifications
Dimensions:
BF542, bariatric model: 8 1/2" L x 28" W
BF00261 (without pad) / BF00262 (with 2” pad), bariatric model for 7000-series tables: 8-1/2” L x 29-1/2” W
Weight Capacity:
It is equivalent to the surgical table to which it is installed, but not to exceed 1,000 lbs. patient weight. Do not exceed the stated patient weight capacity for any surgical table. Additionally, include the table accessory weight when calculating the total permissible patient load for any surgical table. Please reference the surgical table and accessory IFU for additional details.
They are not manufactured with natural rubber latex.
Replacement Pads
Optional Replacement Pads:
For BF542, bariatric model (for 3000/4000/5000-series tables)
- BF493 – 2” TLT Pad
- BF366 – 4” TLT Pad
For BF00261 & BF00262, bariatric model (for 7000-series tables)
- BF00310 – 2” TLT Pad
- BF00311 – 3” TLT Pad
- BF00312 – 4” TLT Pad
|
INSTRUCTIONS FOR USE
|
|
|---|---|
| Document # | Document Title |
| FOOT EXTENSION & BARIATRIC FOOT EXTENSION FOR 7000 SERIES IFU | |
| FOOT EXTENSION & BARIATRIC FOOT EXTENSION FOR 7000 SERIES IFU - FRENCH (FR) | |
| FOOT EXTENSION & BARIATRIC FOOT EXTENSION FOR 7000 SERIES IFU - SPANISH (ES) | |
|
BROCHURE
|
|
|---|---|
| Document # | Document Title |
| SURGICAL PATIENT SURFACES CATALOG | |
| SURGICAL PATIENT SURFACES CATALOG | |
| SURGICAL TABLE ACCESSORIES CATALOG | |
| SURGICAL TABLE ACCESSORIES CATALOG | |
| SURGICAL TABLE ACCESSORIES CATALOG (FRENCH) | |
| 5085/4085 PATIENT POSITIONING INSTRUCTIONS QUICK REFERENCE GUIDE | |
| 5085/4085 PATIENT POSITIONING INSTRUCTIONS QUICK REFERENCE GUIDE (CANADA) | |
| 5085/4085 PATIENT POSITIONING INSTRUCTIONS QUICK REFERENCE GUIDE (FRENCH) | |
