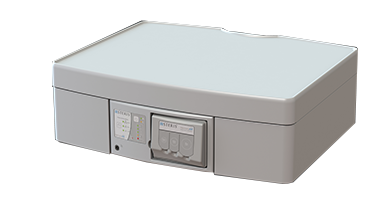

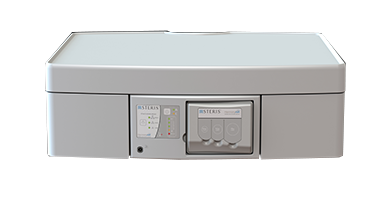

HarmonyAIR® Smoke Evacuation System

  • Effectively manages surgical smoke plume
  • Integrated installation and compact design frees vital shelf space
  • Variable filter life of up to 35 hours (~ 3 months) reduces procedure costs
  • Compact, simple design minimizes training needs and enhances utilization
  • 3-Port filter design eliminates adapters

REQUEST A QUOTE

The HarmonyAIR Smoke Evacuation System seamlessly integrates with the HarmonyAIR Equipment Boom. Combining simplicity with extremely quiet operation in a compact package, the HarmonyAIR Smoke Evacuation System exceeds expectations for value and reduces cost per procedure, minimizing total cost of ownership. The unique 3-port filter provides a variety of options when choosing an accessory or tube set to meet diverse clinical needs.

The HarmonyAIR Smoke Evacuation System is simple to use, provides flexible options for tubing and accessories, and sets a new precedent for quiet operation. Encompassing 4 layers of filtration and up to 35 hours of filter life, the HarmonyAIR Smoke Evacuation System will deliver the performance necessary to effectively manage surgical smoke plume with unsurpassed value. The system can be operated with the included foot pedal and control panel or with the optional Remote Switch Activator.

Highlights

  • Integrated installation to HarmonyAIR Equipment Boom column frees vital shelf space for other necessary equipment. Traditional table/shelf installation top is also available.
  • Compact, simple design reduces total cost of ownership, training needs, and enhances utilization. The unit is "plug and play" ready with included filter and foot pedal operation.
  • Variable filter life of up to 35 hours (approximately 3 months) delivers unsurpassed value and reduces per procedure costs.
  • 3-Port filter design puts the power of hose and accessory options in your hand and eliminates adapters.
  • Versatile accessories allow for freedom of use with variable sterile tubing sizes, including a laparascopic tube set. Add-ons include a universal remote switch activator and additional fluid capture trap.

Filter & Accessories

HarmonyAIR Smoke Evacuation Filter

  • Designed to exclusively fit the HarmonyAIR Smoke Evacuation System
  • 4 layers of proven filtration: gross particulate, ULPA media, activated carbon, and post filter
  • Last up to 35 hours (~ 3 months) of plume evacuation time and captures 0.1 to 0.2 micron particles at 99.999% efficiency
  • Hidden ports reduce the risk of cross contamination to caregivers
  • 3-port filter openings – 1/4" in (6.4 mm), 3/8" (9.5 mm), and 7/8" (22 mm)

Remote Switch Activator

  • Remotely turn the HarmonyAIR Smoke Evacuation System on and off in conjunction with ESU activation saving filter life
  • Adjustable delay can be set from 0 to 10 seconds, allowing for capture of residual plume that may be present after deactivation of electrosurgery devices
  • Accommodates multiple cautery pencils, providing savings and convenience to the facility
  • Versatile placement and easy to set up; requires no programming
  • Reduces noise in the OR

Fluid Trap

  • Designed to capture fluids to help maintain the integrity of the filtration system and assist with maintaining filter life
  • Translucent design with simple to read measurement increments (holds up to 100 cc fluid capacity.)
  • 7/8" (22 mm) and 1/4" (6.4 mm) tubing connection ports
  • Easy to attach and remove with cap holder for easy storage of caps during use

SMOKE EVACUATION SYSTEM INFORMATION

Dimensions (H x W x D):

Small Shelf Unit: 6” x 18” x 17” (152mm x 457mm x 432mm)



Large Shelf Unit: 6” x 26” x 22” (152mm x 660mm x 559mm)

Flow Rate:

7/8” Tubing: 25 CFM (780 LPM)



3/8” Tubing: 4.5 CFM (130 LPM)



1/4" Tubing: 2 CFM (57 LPM)

Weight:

Small Shelf Unit: 22 lb (10kg)



Large Shelf Unit: 25 lb (11kg)

Noise Level, dBa:

55dBa maximum

Integrated Installation:

Yes

Footswitch Pneumatic:

Standard (one included with each unit)

Remote Control Activation:

Yes (optional)

Safety Features:

UL Classified, Fuse Protection

Display:

LED, Filter Status, Flow Rate, Service Required

Variable Flow Control:

Yes

Motor:

800 Watts

Warranty:

One (1) Year

Product Origin:

Made in the USA



FILTER INFORMATION

Filters – Multi-Port:

4-Stage Filtration in One Casing (Pre-Filter, ULPA, Carbon, Post-Filter)

Filter Type:

ULPA

Particle Size, um:

0.1 to 0.2 Microns at 99.999% Efficiency

Filter Life:

35 hours (~3 months)

Life Indicator:

Automatic Factory Set Sensor – Timed Replacement
