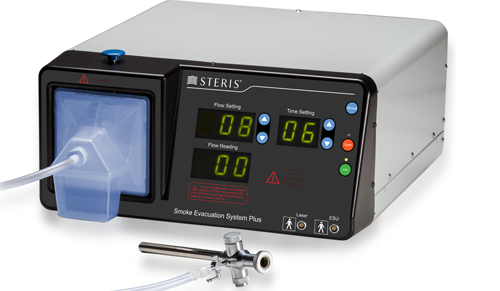

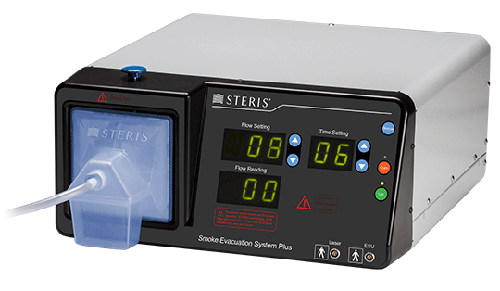

STERIS Smoke Evacuation System

  • Unique design produces a quieter, more effective system for smoke evacuation
  • Surgical smoke evacuation device for both laparoscopic and open procedures
  • Reliable, high quality motor lasts four times as long as ordinary brush motors
  • Helps prevent smoke inhalation by hospital staff and decreases amount of smoke present at incision site

REQUEST A QUOTE

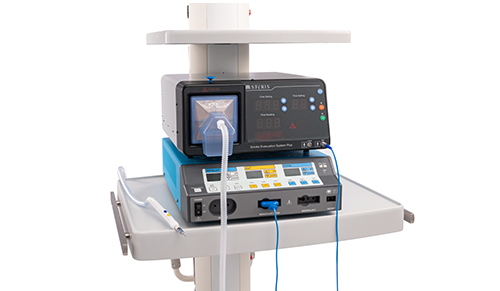

The STERIS Smoke Evacuation System is designed to prevent the dangers of surgical smoke in the operating environment for doctors, nurses and patients alike. The smoke evacuator has improved technology to make use quieter and easier, and delivers a highly effective method of collecting and filtering smoke produced during either open or laparoscopic procedures.

How the STERIS Smoke Evacuation System Works

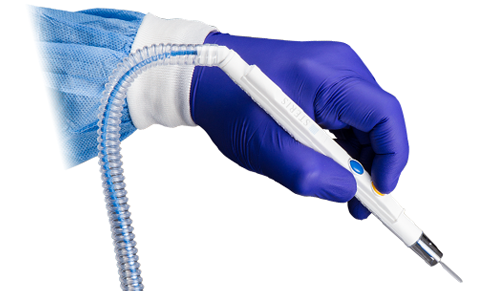

The system offers a smoke collection tube that slips over the electrosurgery pencil at the surgeon’s hand. This allows the tube to move wherever the surgeon’s hand moves, keeping it ideally positioned to collect and filter smoke during the procedure. A high speed, brushless motor helps create suction pressure up to five times greater than other evacuators, quietly pulling smoke particles expelled from the surgical site and capturing them before they can escape. The brushless motor also does not cause interference with other devices in the operating room by means of electromagnetic energy.

Why the STERIS Smoke Evacuation System?

The use of smoke evacuators is strongly recommended by the Association of periOperative Registered Nurses to protect staff against smoke plumes created by electrocautery devices. As more states move toward legislating plume-free surgical procedures1 the STERIS Smoke Evacuation System is an important tool to maintain compliance and create a safe working environment.

Other benefits include:

  • Automated alert system when ULPA filter is not capturing plume at 100% and needs to be changed
  • Wide range of accessories to configure based on procedural needs and personal preferences
  • Convenient, unobstructive design

Filters & Accessories

All filters and sensors undergo rigorous quality control review and testing.

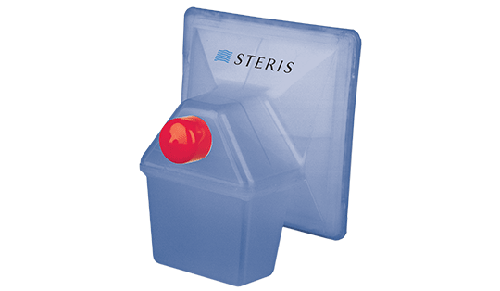

Hydrophobic ULPA and Charcoal Output Filters

  • Delivers >99.9999% efficiency on particles sized as little as 0.03 micron and above
  • Built-in fluid trap ensures plumes, bio-aerosols, blood, and fluids won’t pass through filter
  • Charcoal filter made exclusively with granulated coconut charcoal, most effective for removing volatile organic compounds

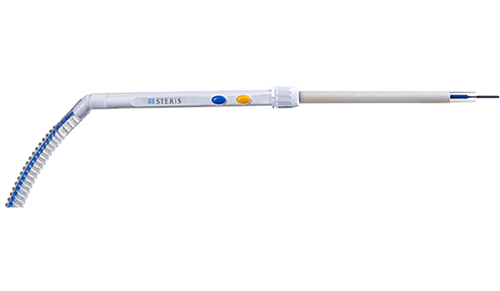

STERIS ESU Pencils

  • 12 ESU Pencil configurations available in telescoping, non-telescopic, stainless steel, and non-stick
  • Options with integrated smoke evacuation mechanisms enable the surgeon to vary length of electrode
  • Shroud attachments help create an invisible barrier to trap smoke particles

System Sensors

  • Laser Sensor utilizes convenient foot pedal to activate the smoke evacuator
  • RF Sensor is the first automatic system for surgical smoke detection and evacuation
  • Capable of detecting any cutting device and simultaneously activating the smoke evacuator

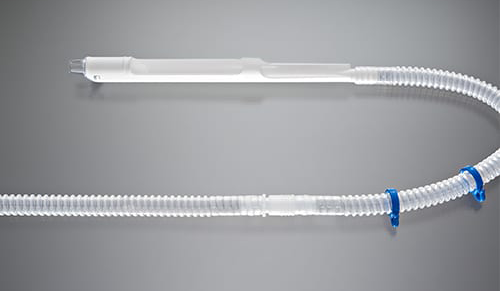

Tubing

  • Laparoscopic Tubing helps improve OR team’s vision during surgery and keeps patient from absorbing smoke during a closed procedure
  • Speculum Tubing can be used for gynecological procedures to help eliminate smoke plumes that may contain harmful pathogens
  • Shroud clips onto the ESU pencil to begin capturing smoke immediately at the source

STERIS is the partner you can count on to help implement a smoke evacuation strategy that keeps your patients and staff safe from the dangers of surgical smoke.

1https://www.aorn.org/About-AORN/AORN-Newsroom/Health-Policy-News/2021-Health-Policy-News/Kentucky-Passes-Smoke-Bill

Smoke Evacuation System Information
Dimensions (H x W x D): 7.2” H x 14.07” W x 15.05” D (18.28 cm H x 35.73 cm W x 38.22 cm D)
  Allow 1.0” (2.5 cm) on both sides and 6.0” (15.2 cm) behind device for Charcoal Output filter and adequate cooling
Weight: Smoke Evacuation System Plus: Approximately 17 pounds (7.7 kg)
Smoke Evacuation System: Approximately 15 pounds (6.8 kg)
Power Requirements: 100-240 VAC, single phase, and 4.0 A, 47-63 Hz
Flow Rate: Open Range: At least 90 LPM
Lap Range: At least 18 LPM
Display Indicators: Visual, Visual & Audio, LED Meter, LED Display
Remote/Automatic Activation: Yes (optional sensors)
Estimated Service Life: Ten (10) Years
Warranty: One (1) Year
Product Origin: Made in the USA

Surgical Booms

HarmonyAIR® Equipment Column

  • Sleek, compact equipment column available as single and dual fixed height and dual adjustable, arm systems
  • Precision placement with electromechanical brakes and robust bearings

HarmonyAIR® Supply Head

  • Compact horizontal orientation to meet anesthesia and/or perfusion needs
  • Multiple arm systems available - straight drop, single and dual fixed-height arm systems, and dual adjustable-height arm systems

Clinical and Equipment Shelves

  • Clinical and Equipment Shelves for surgical booms used for storing surgical equipment, accessories, and patient medical charts
  • Can attach to the HarmonyAIR® Equipment Column to optimize Operating Room space

Equipment Rails for Surgical Booms

  • Medical equipment rails provide flexibility to add snap-on accessories for surgical booms and accessory poles
  • Variety of sizes and options available, including compact rails, cross rails, and heavy-duty rails

Operating Room Equipment

ORLocate Sponge Solution

  • Leverages RFID technology to track and manage surgical sponges and gauze before, during, and after surgical procedures
  • Reduces costs associated with retained surgical items (RSIs) by eliminating the need for potentially costly X-Rays

MedLED Spectra Surgical Headlight

  • Cordless power, by integrating 2 rechargeable batteries on the head strap for longer battery life, faster charge and the option to change batteries without the light turning off
  • Available in 3 light options allowing you to choose which headlight best fits your needs

Surgical Displays and Large Format Displays

  • Our complete portfolio of monitors for surgical visualization, including surgical displays and large format displays, give Operating Room (OR) teams options for any procedural application

OR Integration Systems

  • Improve workflows by putting the clinical data you need at your fingertips in the OR
  • Allow OR staff to remotely collaborate with peers through videoconferencing during surgical procedures

Browse a complete accessories list and easily reorder STERIS Smoke Evacuation System parts on Shop STERIS.

Product Number Product Description
SSEFIL01 HYDROPHOBIC ULPA FILTER W/ FLUID TRAP
SSEFIL02 LARGE CHARCOAL FILTER
SSEPEN01 ESU PENCIL NON-TELE, STAINLESS, STERILE
SSEPEN02 ESU PENCIL NON-TELE, NON STICK, STERILE
SSEPEN04 ESU PENCIL NON-TELE, STAINLESS, 22-10MM, STERILE
SSEPEN05 ESU PENCIL NON-TELE, NON STICK, 22-10MM, STERILE
SSEPEN06 ESU PENCIL NON-TELE, STAINLESS, UNI, STERILE
SSEPEN07 ESU PENCIL NON-TELE, NON STICK, UNI, STERILE
SSEPET01 ESU PENCIL, TELE, STAINLESS, STERILE
SSEPET02 ESU PENCIL, TELE, NON STICK, STERILE
SSEPET04 ESU PENCIL, TELE, NON STICK, 22-10MM, STERILE
SSEPET05 ESU PENCIL, TELE, STAINLESS, UNI, STERILE
SSEPET06 ESU PENCIL, TELE, NON STICK, UNI, STERILE
SSEPET12 ESU PENCIL, TELE, STAINLESS, 22-10MM, STERILE
SSESHR01 SHROUD, SHORT TIP, & TUBING, STERILE
SSESHR04 SHROUD, 9FT TUBING, 22-10MM, STERILE
SSESHR05 SHROUD, 9FT TUBING, UNI, STERILE
SSETUB01 LAPAROSCOPIC TUBING, STERILE
