SmartBand® multi-band ligation kit

  • Consists of a ligating handle with a universal connector, loading device, flush tube, Pentax adaptor, and barrel with six bands
  • Features a universal connector that connects the handle to the endoscope and is compatible with multiple endoscope styles
  • Offers 10FR inner diameter handle stem that enables maximum suction capabilities
  • Available with bands that are made with natural latex and bands that are not made with natural rubber latex, both offering a 24-month shelf life

REQUEST A QUOTE

Shop Now

Product Overview

The SmartBand ligation kit is an endoscopic ligating device that is used to ligate esophageal varices at or above the gastroesophageal junction and to ligate internal hemorrhoids. This band ligating device may be used to treat acute bleeding from esophageal varices or for the prophylactic treatment of esophageal varices.

How the SmartBand multi-band ligation system works

The multi-band ligator kit consists of a ligation handle with universal connector, loading device, flush tube, Pentax adaptor, and barrel with six bands. When setting up the endoscopic ligating device, the deployment cord is first passed through the working channel of the endoscope using the PermaCoil loading device and then assembled to the ligation handle. The slack is taken out of the deployment cord and the barrel is fitted onto the end of the endoscope. The flush tube may be connected to the handle to allow for flushing of the working channel during the procedure. Once completed, the endoscopic ligating device is ready for use in procedures.

Why the SmartBand multi-band ligation system?

The multi-band device ligation kit features:

  • Uniquely designed bands to provide greater compression and gripping force than the competition1
  • Six backloaded bands on a clear, smooth barrel for optimal visualization
  • Bands that are made with natural latex and bands that are not made with natural rubber latex, both offering a 24-month shelf life
  • A universal connector that connects the handle to the endoscope and is compatible with multiple endoscope styles
  • A 10FR inner diameter handle stem that enables maximum suction capabilities
  • A dedicated flush port for clearing the working channel during the procedure

1Testing data on file

Go to Top of Page


Shop Now

Product Number Description Endoscope Diameter Compatibility (mm)

This device is supplied non-sterile and is disposable, single-use only.

*This product is made with natural rubber latex.
**This product is not made with natural rubber latex.

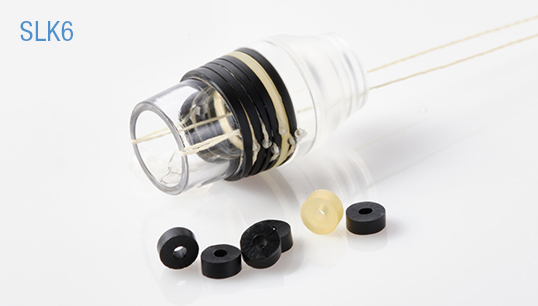

SLK6 SmartBand® multi-band ligation kit*
Components: Ligation handle with universal connector, loading device, flush tube, Pentax adaptor, and barrel with 6 bands
8.6 - 11.6

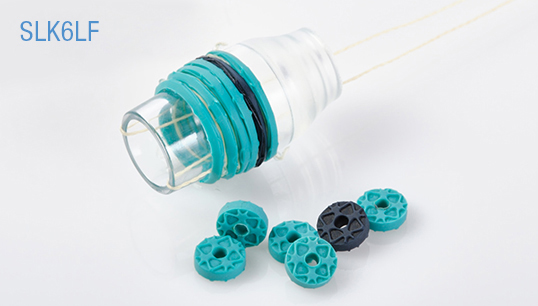

SLK6LF SmartBand® SafeGrip™ multi-band ligation kit**
Components: Ligation handle with universal connector, loading device, flush tube, Pentax adaptor, and barrel with 6 bands
8.6 - 11.6
Go to Top of Page


Videos

SmartBand Multi-Band Ligation System – Set-up Video

SmartBand Multi-Band Ligation System – Hemorrhoid Banding

SmartBand Multi-Band Ligation System – Use in Porcine Model

Go to Top of Page


Literature

SELL SHEET
Document # Document Title
HEMOSTASIS CHECKLIST
SMARTBAND US SPEC SHEET
SMARTBAND INTL SPEC SHEET
BLEED BOX US SPEC SHEET
QUICK START GUIDE
Document # Document Title
SMARTBAND QUICK REFERENCE GUIDE
SMARTBAND SCOPE REFERENCE GUIDE
BROCHURE
Document # Document Title
HEMOSTASIS BROCHURE
HEMOSTASIS INTL BROCHURE
HEMOSTASIS BROCHURE - CANADA
HEMOSTASIS BROCHURE - FRENCH
INSTRUCTIONS FOR USE
Document # Document Title
SMARTBAND MULTI-BAND LIGATION KIT IFU
SMARTBAND SAFEGRIP MULTI-BAND LIGATION KITIFU
