InnoWave Ultra & Ultra+ Sonic Irrigators

  • Process up to 12 lumens per cycle
  • Small footprint to fit your Sterile Processing Department or Ambulatory Surgery Center needs
  • Be prepared for audit with integrated record keeping and USB download

Product Overview

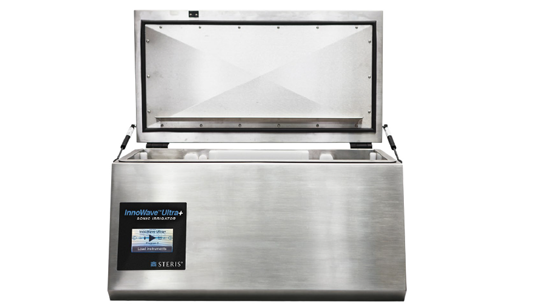

The InnoWave Ultra and the Ultra+ Sonic Irrigators are tabletop ultrasonic cleaners that help you keep pace with busy operating rooms through a proven, compliant cleaning process. Sonic Irrigation reaches both external and internal device surfaces, dislodging challenging soils from surgical instruments with the same ultrasonic power featured in our larger ultrasonic cleaners.

InnoWave Ultra & Ultra+ Sonic Irrigator Comparison:

ULTRA ULTRA+

Lumen Connections

Up to 12

Up to 12

Data Recording

Yes

Yes

Capacity per Load

11 lbs (4.9kg)

11 lbs (4.9 kg)

Customizable Cycles

Yes

Yes

Automated Filling, Dosing & Draining

Yes

How the InnoWave Ultra & Ultra+ Sonic Irrigators Work

Both the InnoWave Ultra and Ultra+ Sonic Irrigators deliver optimal ultrasonic cleaning with a powerful, and compliant, process:

  • Sonic activity provides cavitation, targeting and removing exterior soils from small crevices and irregular surfaces
  • Sonic irrigation pushes a sonically charged jet of chemistry dislodging and flushing soils from intricate internal channels and lumens of devices

Why the InnoWave Ultra & Ultra+ Sonic Irrigators?

Don't let space constraints dictate cleaning performance – the InnoWave Ultra and Ultra+ ultrasonic cleaners occupy a small footprint on the countertop of your Sterile Processing Department or Ambulatory Surgery Center. An optional cart is available for Customers looking for mobility of their ultrasonic cleaner.

  • Customizable Cycles – Follow device IFUs and maintain compliance with the flexibility to customize cleaning time
  • Touch Screen Display – Controls offer quick recognition of cycle progress
  • Safety – Automatic locking lid prevents accidental access during processing
  • Compliance – Digitally download up to 10,000 cycles via USB to document cycle parameters & performance

Ultrasonic Cleaner Dimensions and Basket Sizes

  • Overall dimensions of the Ultra & Ultra+ Sonic Irrigators: 29.5W x 15.6H x 21D" (749W x 396H x 533D mm)
  • The included basket easily locks into place and holds instruments with dimensions up to 19"L x 10"W x 3"H (483 x 254 x 76 mm)
