InnoWave Pro Sonic Irrigator

  • Ability to reprocess 60 lumened instruments or up to 66 lbs. in every cycle
  • Side mounted transducers for maximum coverage throughout the tank

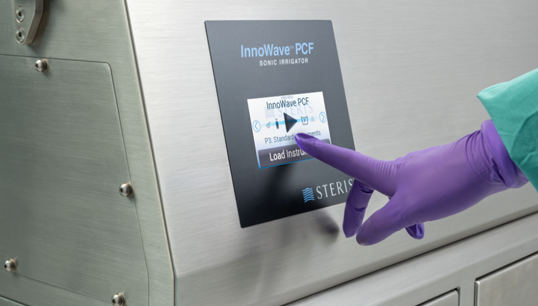

  • Status indicator lights and touch screen interface allow for quick recognition of cycle progress

Product Overview

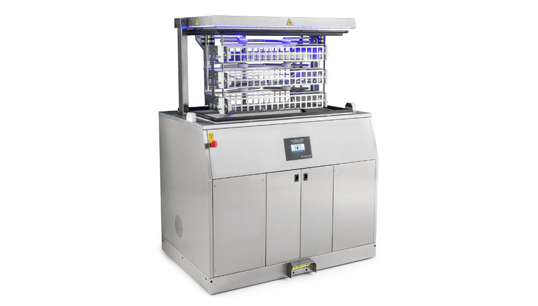

The InnoWave Pro Sonic Irrigator is a freestanding high-pressure washer/disinfector that uses ultrasonic technology to maximize productivity with world-class throughput. This sonic irrigator reprocesses 60 lumened instruments or up to 66 lbs. in every cycle, avoiding potential bottlenecks and increasing efficiency. The InnoWave Pro Sonic Irrigator enhances the user experience with a color touch screen and easy loading.

How the InnoWave Pro Sonic Irrigator Works

The InnoWave Pro Sonic Irrigator delivers optimal cleaning from a proven, systematic process:

  • Sonic activity provides cavitation that targets and removes exterior soils from small crevices and irregular surfaces
  • Sonic irrigation pushes a sonically charged jet of chemistry, which dislodges and flushes soils from intricate internal channels and lumens
  • Deluge wash from six spray arms to help reduce the risk of redepositing blood or other soils
  • Soft Shot pulses compressed air through the lumens and spray arms to assist in the drying process
Floor Unit # of Lumen Connections Weight per Load Thermal Disinfection
Innowave™ Pro
Sonic Irrigator
60 66 lbs. Yes
InnoWave™ PCF
Sonic Irrigator
20 44 lbs. Yes
Innowave™ Unity Ultrasonic Irrigator 16

Unity
15-25 lbs.

Unity
20-35 lbs.

No

Why the InnoWave Pro Sonic Irrigator?

Designed for Ease of Use

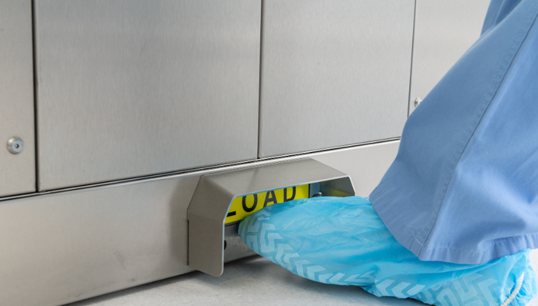

  • Faster transfers with foot pedal controls that automatically position baskets at the right level for ergonomic loading and unloading
  • Integrated lid provides quick recognition of cycle progress

Safety and Compliance

The InnoWave Pro Sonic Irrigator's Thermal Disinfection provides an added level of assurance and safety. Integrated record keeping and easy export of documentation of key cycle parameters reduce audit-related stress. The sonic irrigator's staff-focused safety features help reduce the risk of work-related injury:

  • Automated locking lids to prevent cycles from running when the unit isn't completely closed
  • Pressure-sensitive safety edge stops in-progress cycles when the sonic irrigator is pressed or leaned on
  • Auto-detection system prevents the tray elevator from raising or lowering when obstructions are sensed inside the chamber zone
