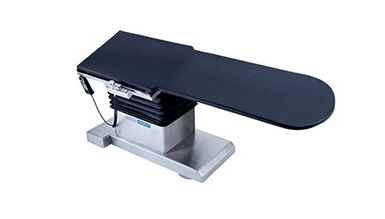

SurgiGraphic® 6000 Image Guided Surgical Table

The SurgiGraphic 6000 is primarily designed for minimally invasive endovascular, vascular, cardiovascular, pain management, and other procedures requiring intra-operative fluoroscopic C-Arm imaging.

REQUEST A QUOTE

Control Every Move. See Every Detail.

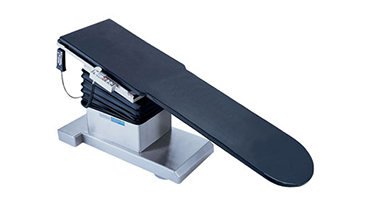

The SurgiGraphic surgical table enables radiology-quality imaging for minimally-invasive vascular, orthopedic, or other procedures requiring fluoroscopy; lateral and longitudinal float, Trendelenburg and reverse Trendelenburg, lateral tilt, height adjustment, and the most useful combinations of these movements.

  • Unobstructed imaging from carotid to distal tibia - a full 83" - meaning you get a 360° view as if the patient were floating in space
  • Higher quality imaging with less radiation energy due to minimized attenuation, scatter and edge effects

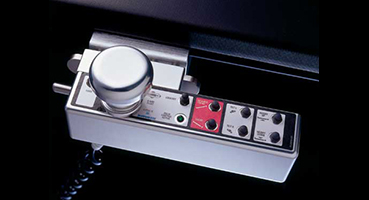

  • Surgeon has complete control of every table movement with the Surgeon Palm Control
  • Smooth longitudinal and lateral float feels like the table top is gliding on ice



SPECIFICATION DESCRIPTION

Equipment Number

TA-01

Unobstructed Imaging Length of Table

71" (180 cm)

Unobstructed Imaging Length with Carbon Fiber Extension Accessory

83" (211 cm)

Longitudinal Float

16" (41 cm)

Lateral Float

8" (20 cm)

Table Top Aluminum Equivalency

0.6 mm (Typical)

Table Top Length

92" (234 cm)

Table Top Width

21" (53 cm)

Trendelenberg/Reverse Trendelenberg

16°

Lateral Tilt (left and right)

16°

Table Height Range

Minimum 32" (81 cm)
Maximum 42" (107 cm)

Powered Floor Locks

Standard

Table Shipping Weight

990 lbs (449 kg)

Patient Weight Capacity

500 lbs (226 kg)



Surgical Table Accessories


Radial AV Fistula Board

  • Ideal for fistula repair with an uninterrupted fluoro scan for intraoperative flow studies from radial AV fistula to vena cava
  • Compatible with SurgiGraphic 6000 and SurgiGraphic 1027 Surgical Tables

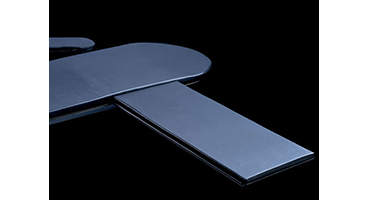

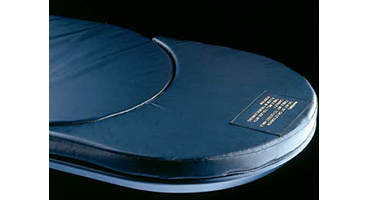

Carbon Fiber Extension with Pad

  • Provides an additional 12 inches to increase the normal 71-inch fluoro body scan to 83-inches of uninterrupted imaging coverage when added to the SurgiGraphic 6000 Surgical Table

Siderail Extender

  • Extends the siderail of the SurgiGraphic 6000 Surgical Table to allow for positioning of an Armboard when the Carbon Fiber Extension is attached

Catheter Extension

  • Attaches to the foot end of the SurgiGraphic 6000 Surgical Table
  • Moves with the carbon fiber table top during "float"
