AMSCO® 3085 SP Surgical Table

Rugged. Reliable. Trusted.

The AMSCO 3085 General Surgical Table is one of the most reliable and popular surgical tables. Trusted for years by healthcare facilities across the world, the 3085 is a cost-effective solution for the general OR.

Features for a wide array of procedures:

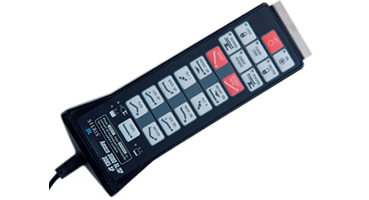

Familiar, easy to use hand control quickly performs table articulations for any patient posture needed
Return-to-level button enhances patient safety
Reverse orient button simplifies patient positioning

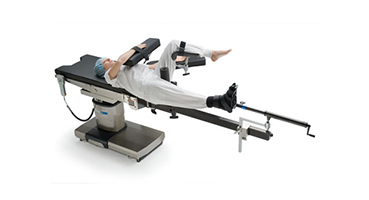

Radiolucent Orthopedic Extension quickly converts this workhorse general surgical table into a fracture table

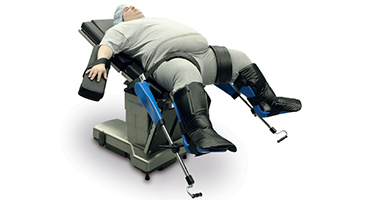

Bariatric Width Extenders stretch the table width to 28" to accommodate the girth of up to a 1,000 lb patient
Over 300 surgical table accessories are available to accommodate virtually any surgical specialty

Procedures:

Pediatric
MIS
Orthopedic
Neurology
Endovascular
Bariatric
Robotic
Urology
ENT
OB/GYN
Cardiac/Vascular
Plastic Surgery
Ophthalmology

Cardiovascular	Gynecology and Abdominal	Cystoscopy
Endourology	Sitting Neurosurgery	Ophthalmology/ENT
Kidney & Thoracic	Shoulder Chair	Spinal Neurosurgery
Nisson Fundoplication	Gall Bladder
Other Positions
Endovascular Bariatric/Split Leg Orthopedic	Total Hip Prone Neurosurgery Lateral Neurosurgery	Kneeling Neurosurgery Lithotomy

SPECIFICATION	DESCRIPTION
Table Top Length	76" (193 cm)
Table Top Width	20" (508 mm) (28" with extenders)
Table Height Range	27" to 44" (686 to 1118 mm)
Patient Weight Capacity	1,000 lbs (454 kg) normal orientation 500 lbs (227 kg) side tilt & reverse orientation
Table Shipping Weight	918 lbs (416 kg) electric-powered 920 lbs (417 kg) battery-powered X-ray tops add 40 lbs (18 kg) to shipping weight
Upper Body Imaging Area
Normal orientation (28" x 16")	448 sq in (2890 cm²)
Normal orientation with IA extender (36" x 16")	576 sq in (3716 cm²)
Reverse orientation, head section reversed (45" x 16")	720 sq in (4645 cm²)
Reverse orientation, 36" carbon fiber fluoro extension (36" x 20")	720 sq in (4645 cm²)
Lower Body Imaging Area
Normal orientation (33" x 14")	462 sq in (2980 cm²)
Normal orientation, head section reversed (45" x 16")	720 sq in (4645 cm²)
Normal orientation, 36" carbon fiber fluoro extension (36" x 20")	720 sq in (4645 cm²)
Normal orientation with Fem/Pop board (55" x 16")	880 sq in (5678 cm²)
Hand control features	Normal/reverse orientation button Return to level button
Trendelenburg / Reverse	25° / 25°
Lateral Tilt (left/right)	18° / 18°
Head Section	+90° to -90°
Back Section	+55° to -25° (normal) +80° to -105° (reverse)
Leg Section	+80° to -105° (normal) +55° to -25° (reverse)
Flex/Reflex	20° / 25°
Manual Override	Yes
Perneal Cut-out	Yes
Kidney Elevator	4" (10 cm) manual
Models Available	Battery-powered Electric-powered Voice-activation capable

Surgical Table Accessories

Adult Arm and Hand Table

Radiolucent, carbon fiber construction
Lightweight, ergonomic handling
Compatible with surgical tables equipped with standard siderails

AMSCO^® Orthopedic Extension

Alternative to dedicated orthopedic fracture tables
Fits all the STERIS general surgical table platforms

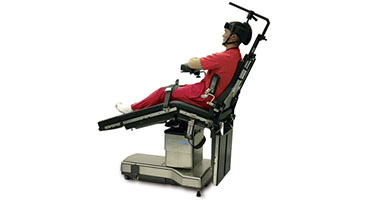

Shoulder Chair

Used for open or arthroscopic procedures
Features a unique, multi-axis head positioning capability
Includes head restraint device and integral lateral brace

Pad Positioners

Used in supplement with tabletop pads for promotion of proper patient positioning
Provide stability and pressure management

Surgical Tables

STERIS^® 4085 Surgical Table

Exceptionally intuitive design to save valuable minutes in the OR
Compact base size to maximize easy access with self-leveling floor locks

STERIS^® 5085 General Surgical Table

Exceptionally intuitive design to save valuable minutes in the OR
Compact base size to maximize easy access with self-leveling floor locks

Operating Room Equipment

Surgical Lights

Surgical, exam, and labor and delivery lighting systems
Deliver pure white light, and enhancement of deep saturated reds and colors

Surgical Booms

Sleek, compact design to allow nurse line of sight to the sterile field
Straight drop units and single or dual arm units

Surgical Displays

Surgical field wall-mounted displays
Deliver HD and 4K visualization within the surgical field

OR Integration

Designed to improve workflow, procedure guidance and peer collaboration
Deliver scalable solutions to best fit the diverse needs of the OR

GENUINE STERIS PARTS FOR YOUR STERIS SURGICAL TABLES

VIEW SERVICE PARTS

Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.
