TrenGuard™ Trendelenburg Patient Restraint

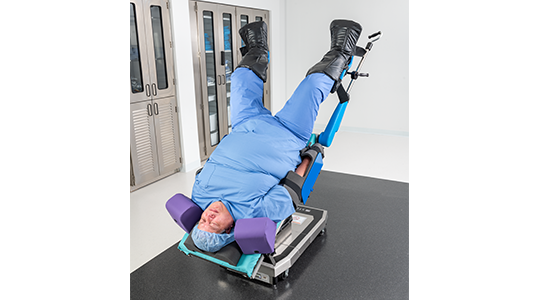

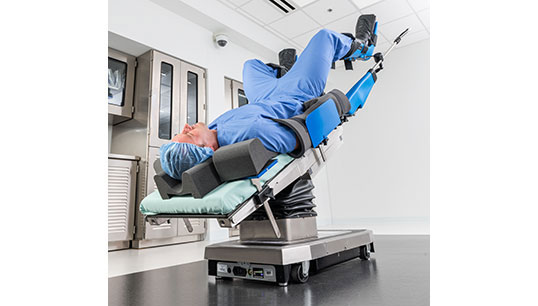

- Safely supports patients up to 550 lbs in 40 degrees of steep Trendelenburg
- Patented “speed bump” bolster keeps patients of all sizes from sliding on the surgical table
- Soft lateral stabilizing pillows control body mass shift
- Quick and easy to set up on any surgical table, and works with under-patient devices
Product Overview
TrenGuard Trendelenburg Patient Restraint is a comprehensive patient restraint system designed for safe and easy patient positioning when in the Trendelenburg position. The TrenGuard patient restraint provides patient positioning for minimally invasive surgery (MIS) and robotic procedures or for procedures using a steep Trendelenburg position.
How the TrenGuard Trendelenburg Patient Restraint Works
The TrenGuard Trendelenburg Patient Restraint is a configurable product consisting of two basic components: (1) a durable, reusable Patient Support Frame and (2) a Single-Use Procedure Pack containing two to four pads. Learn more about the various options below:

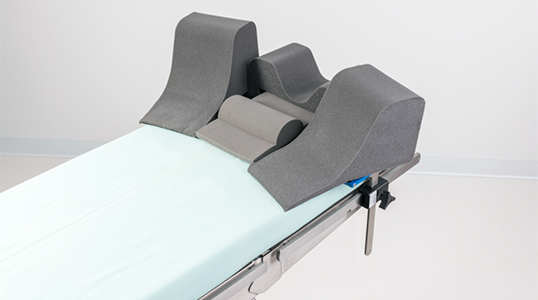

- TrenGuard Patient Support Frame – Secures to operating room (OR) table rails with standard clamps to support patients of all sizes, up to 550 lbs in steep Trendelenburg up to 40 degrees. Available in two sizes: Standard width, which fits most OR tables, and Bariatric width, which fits onto STERIS OR table models specifically fitted with STERIS-brand Bariatric Width Extenders.

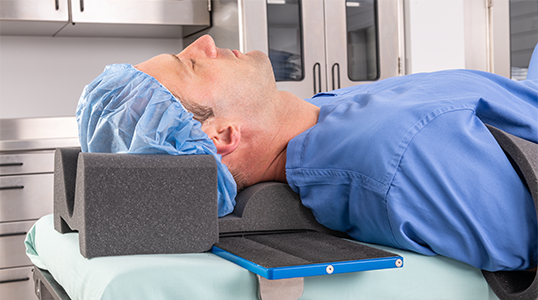

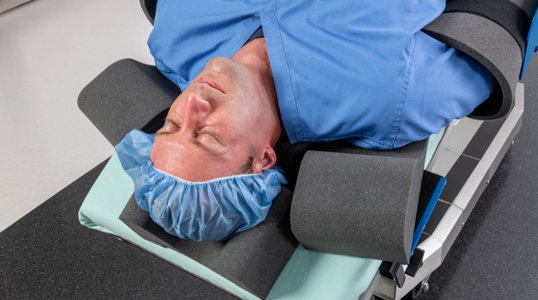

- TrenGuard CLASSIC Single-Use Procedure Packs – Single-use components attach to TrenGuard Patient Support Frame with industrial strength VELCRO® Brand hook and loop fastener. Each procedure pack is vacuum-packed for effective storage and contains a “speed bump” bolster, a head stabilizing pillow, and lateral stabilizing pillows.

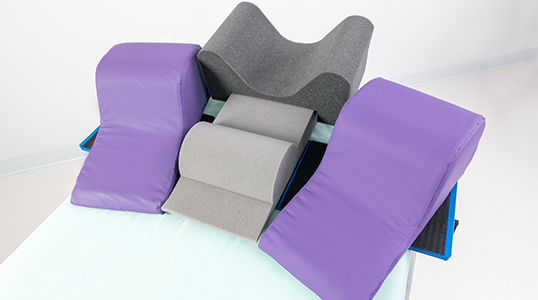

- TrenGuard HYBRID Procedure Packs – Mix of reusable and single-use components that help reduce medical waste. Only the “speed bump” bolster and head positioner are single-use, while the lateral stabilizing pillows come in a durable, reusable format.

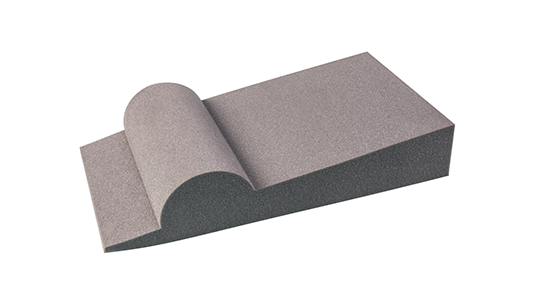

- TrenGuard Integrated Wedge Procedure Packs – These packs are used for patients without a discernible cervical notch or with a limited range of motion of the neck. The “speed bump” bolster has a wedge shape to accommodate patients with these needs. Available in CLASSIC or HYBRID options.
- Size Options – Each offering above is available in two size formats that (1) accommodate patients weighing up to 440 lbs or that (2) accommodate large-sized patients weighing up to 550 lbs
Why the TrenGuard Trendelenburg Patient Restraint?
TrenGuard Trendelenburg Patient Restraint:
- Uses a patented “speed bump” bolster technology to secure the patient at their cervical notch instead of rigid shoulder supports, known to cause brachial plexus injuries, or sticky foam mats that use friction to hold the patient, which can result in skin shear
- The only Trendelenburg system that has a hard connection to the table rail. Other products often use soft straps, which can slide on the rail and have been known to cause patients to slide down the table while in Trendelenburg position.
- Quick and easy to set up on any surgical table, works with any size table pad thickness, and works with under-patient devices
TrenGuard In-Service Video
Shop Now
| Product Number | Description | |
|---|---|---|
| BF121 | DAS Slotted Rail Clamp | |
| BF122 | TrenGuard Patient Support Frame Bracket | |
| BF123 | TrenGuard 450 Classic Packs | |
| BF124 | TrenGuard 450 Hybrid PacksS | |
| BF125 | TrenGuard 450 Hybrid Reusable Shoulder Pillow | |
| BF126 | TrenGuard 600 Classic Packs | |
| BF127 | TrenGuard 600 Hybrid Packs | |
| BF128 | TrenGuard 600 Hybrid Reusable Shoulder Pillow | |
| BF134 | TrenGuard 450 Hybrid Wedge Packs | |
| BF136 | TrenGuard 600 Hybrid Wedge Packs | |
| BF138 | TrenGuard 450 Classic Wedge Packs | |
| BF139 | TrenGuard 600 Classic Wedge Packs | |
| BF143 | Bariatric Patient Support Frame |
