Table Extension Wall Holder

  • Improves OR storage of surgical table extensions (head, leg, etc.) when not in use
  • Reduce risk of damage to operating room table extensions by getting them off the floor, off shelves, and other inefficient storage areas
  • Add Table Extension Hanger Adaptor(s) to STERIS accessory carts to hang table extensions from storage carts

Product Overview

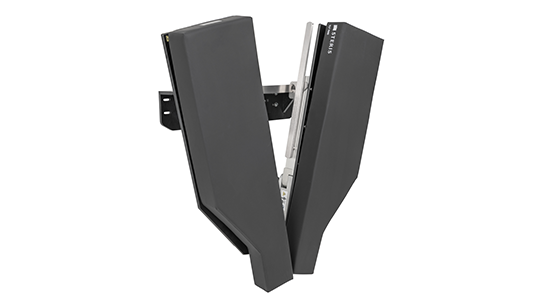

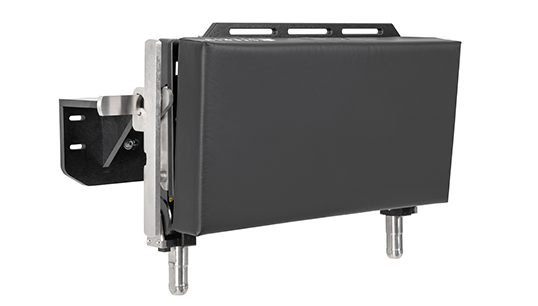

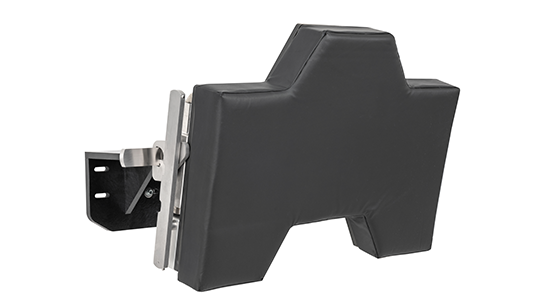

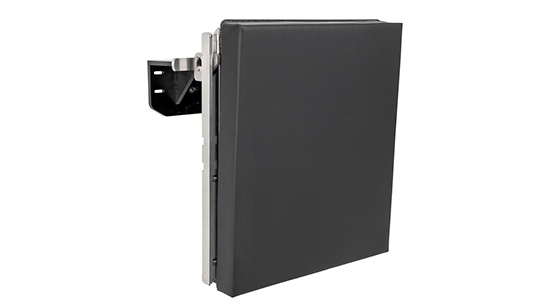

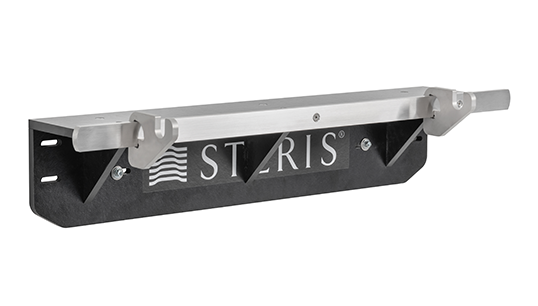

The STERIS Table Extension Wall Holder (BF438) allows surgical table extensions, such as head sections, leg sections, split legs, urology extensions, and more, to be hung from the OR wall.

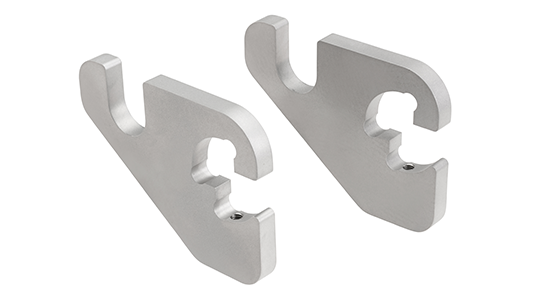

This surgical Table Extension Wall Holder comes with two adjustable Hanger Adaptors (BF439) that can be adjusted for width to accommodate the width of any brand or model of table extension. If a table extension has a siderail, it can be hung from this wall holder.

Includes mounting hardware. Maximum allowable storage weight is 44 lbs.

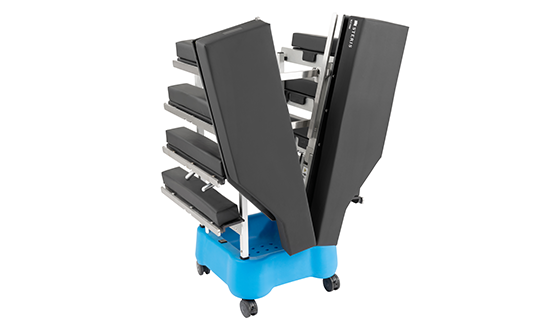

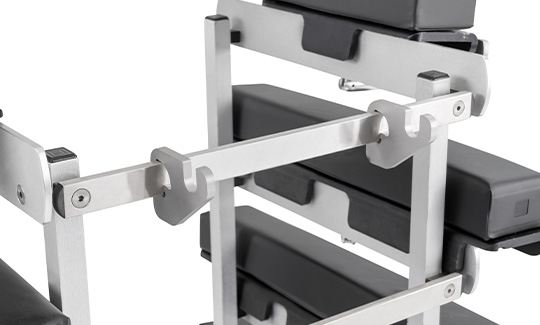

The Table Extension Hanger Adaptor (BF439) is a unique adaptor that can be purchased separately and added to any STERIS Accessory Cart to allow storage of table extensions on mobile accessory carts. It is especially useful when added to the STERIS Bariatric Accessory Cart (BF551) to hang STERIS Split Legs, which are commonly used in bariatric procedures.

The STERIS Table Extension Wall Holder helps to declutter the operating room and aids in reducing the incidence of surgical table components being misplaced, broken, or dropped when stored in suboptimal places, such as on the floor, on back tables, or in cabinets. Add multiple wall holders to drive storage efficiency in your ORs.

Table Compatibility

  • Table extensions from any surgical table brand or model with a siderail
Go to Top of Page


Specifications

Specification Description

*NOTE: 8.5” (W) when Hanger Adaptor is installed

Table Extension Wall Holder Dimensions: 27.8” (L) x 5.8” (W) x 5.75” (H) *
Table Extension Hanger Adaptor Dimensions: 3.5” (L) x 2.5” (H) x 0.31 ” (W)
Table Extension Wall Holder Weight: 11.2 lbs (5.1 kg) without Hanger Adaptors included
12.1 lbs (5.5 kg) with (2) Hanger Adaptors included
Table Extension Hanger Adaptor Weight: 0.4 lbs (0.2 kg) each
Weight Capacity: 44 lbs (20 kg)
Included Hardware:
  • ¼ x 2 stainless steel hex head screws (4)
  • Flat washers (4)
