7000-Series Split Leg Positioners

  • Direct connection to STERIS 7000-series Surgical Tables
  • Articulate under electric power from the surgical table controls
  • Manual ab/adduction and width extension provide positioning flexibility
  • Radiolucent construction for enhanced image clarity

Product Overview

Functions

The STERIS 7000-Series Split Leg Positioners (BF00237) provide mid-line access to the patient with powered control for flexion and extension, manual controls for full abduction/adduction, and width extension to allow clinicians greater access. These STERIS Split Leg positioners attach directly to the Seat Section of any 7000-Series Surgical Table.

The 7000-Series Split Leg Positioners are sold as a pair without pads. Choose from 2”, 3”, or 4” thick pressure management (TLT) pads in either a flat top or concave top shape.

Procedures

The 7000-Series Split Leg Positioners are ideal for laparoscopic, bariatric, orthopedic, and other lower extremity procedures. These leg support accessories are highly radiolucent, an essential feature for capturing crisp, clear images using low-dose X-ray and fluoroscopy. Lightweight fabrication promotes safe, ergonomic handling. The streamlined design eliminates attachment hardware on the table siderail, which improves docking of the patient stretcher and reduces the risk of patient transfer injuries.

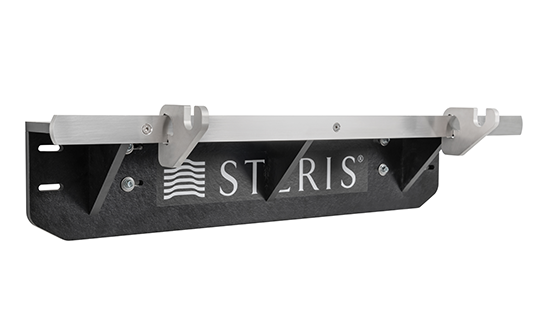

Pair Split Legs with Table Extension Wall Holder (BF438) to store split leg positioners from the operating room (OR) wall when unused.

Table Compatibility:

  • STERIS 7000-Series models
Go to Top of Page


Available Pad Options

  • BF00238 – 2” TLT Pads for 7000-series Split Legs, Velcro, Concave
  • BF00239 – 2” TLT Pads for 7000-series Split Legs, Velcro, Flat
  • BF00240 – 3” TLT Pads for 7000-series Split Legs, Velcro, Concave
  • BF00241 – 3” TLT Pads for 7000-series Split Legs, Velcro, Flat
  • BF00242 – 4” TLT Pads for 7000-series Split Legs, Velcro, Concave
  • BF00243 – 4” TLT Pads for 7000-series Split Legs, Velcro, Flat
Go to Top of Page


Optional Related Accessories

  • MTPA09 – Left Foot Rest (for Split Legs)
  • MTPA10 – Right Foot Rest (for Split Legs)
  • BF10 – Clip-On Socket Clamp
  • BF14 – Adult Nissen Thigh Straps
  • BF15 – Bariatric Nissen Thigh Straps
  • BF552 – Knee Restraint Straps
  • BF438 – Table Extension Wall Holder
Go to Top of Page


Specifications

Specification Description
Dimensions: 34.4” (L) x 11.2” (W) x 4.9” (H) without pad(s)
31.8” (L) of tabletop section
Product Weight: 18.5 lbs (8.4 kg) each without pad
37.0 lbs (16.8 kg) as a pair without pad(s)
Weight Capacity:
  • The 7000-Series Split Leg Positioners are rated for use with patients weighing up to 700 lb (318 kg) for the full range of table articulations, including tabletop slide
  • When Foot Rests (MTPA09 left; MTPA10 right) are utilized and the table is positioned in Reverse Trendelenburg greater than 35°, the maximum patient weight is reduced to 600 lb (272 kg)
  • When positioning the table in Reverse Trendelenburg less than 35°, the maximum patient weight remains at 700 lb (318 kg)
Other: Not manufactured with natural rubber latex
