PowerLift Plus Stirrups
- Lateral fin protects patients from peroneal nerve injuries
- Velcro®-less straps allow for easy cleaning
- Increased range of motion
- PowerLift activation eliminates caregiver strain
Product Overview

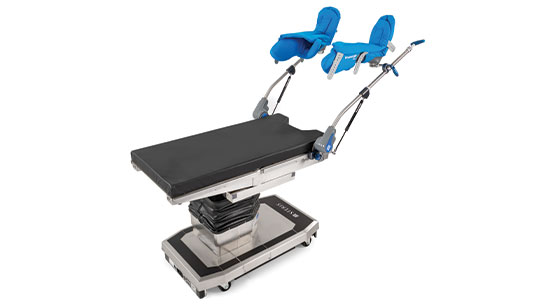

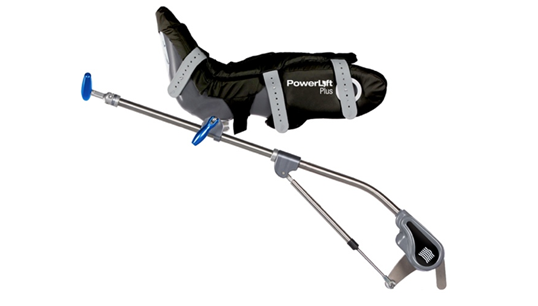

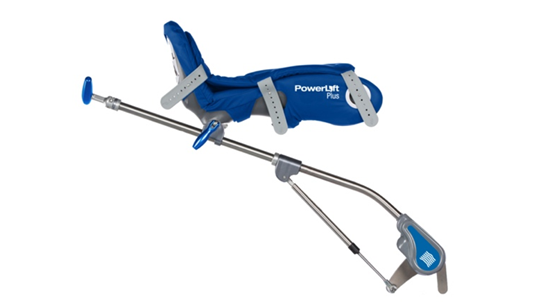

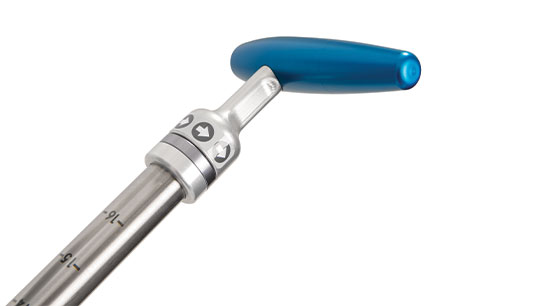

The PowerLift Plus Adult (BF856) and Bariatric (BF857) Stirrups take lithotomy positioning to the next-level. The integrated power-assist mechanism, as found in our traditional PowerLift Stirrups, allows for ease in managing the patient’s anatomical weight in lithotomy. The unique, grip-and-twist control handles allow staff to adjust the angle of lithotomy and degree of AB/ADduction during setup without lifting the sterile drape.
What sets these stirrups apart from others:
- The lateral fin protects the patient’s peroneal nerve during surgery which is one of the biggest safety concerns in lithotomy positioning.

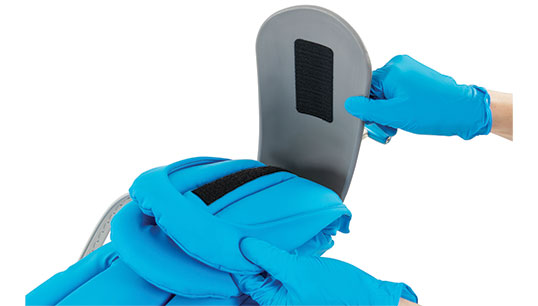

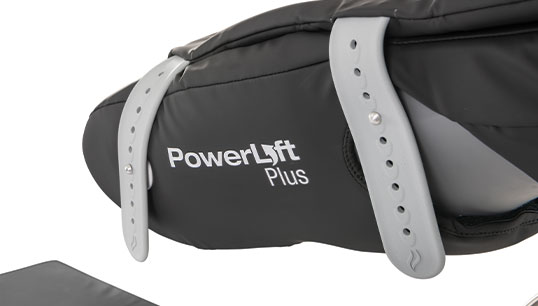

- It is very common for blood, fluid and other microorganisms to build up within the hook-and-loop surface of traditional Velcro® straps. Transitioning to a Velcro®-less strap, made of a medical-grade, silicone, will maximize infection prevention and cleanability.
- The shape of the rod has also been re-designed to improve the degree of low lithotomy by an additional 22 degrees.
- The STERIS PowerLift Stirrup Smart Cart (BF860) has improved stability and a more effective storage design to better secure the stirrups.
- The Secure-Release Clamp (BF861) can be mounted anywhere along the siderail and incorporates a button to prevent false rail engagement.
Specifications
STERIS PowerLiftPlus Stirrups
Product Dimensions:
40”(L) x 11”(W) x 16”(H) (101.6 cm x 28 cm x 40.6 cm)
Product Weight:
14.6 lbs. (6.6 kg) (each)
Not manufactured with natural rubber latex.
| STERIS Stirrups |  |
 |
 |
|---|---|---|---|
| Stirrup Model | PowerLift Freedom | PowerLift Plus | PowerLift |
| Lateral Fin | Yes | Yes | No |
| Straps | Velcro®-Less | Velcro®-Less | Velcro® |
| Range of Motion | +85°, -55° | +85°, -55° | +84°, -33° |
| Boot Pad Attachment | Velcro®-Less | Velcro® | Velcro® |
| Lift Feature | Gas Spring Powered |
Gas Spring Powered |
Gas Spring Powered |
| AB/Adduction | +25°, -9° | +25°, -9° | +25°, -9° |
| Patient Weight Capacity | 500 lbs | 500 lbs, 800 lbs | 720 lbs, 500 lbs 250 lbs, 160 lbs |
Standard Lithotomy Position for Gynecology / Urology Procedures
Standard Lithotomy in Trendelenburg Position for a Rectal / Colo-rectal Procedure
Standard Lithotomy Position for a Cystoscopy Procedure
Lithotomy Position with Bariatric Stirrups for Urology / Gynecology Procedures
Reverse Trendelenburg Position for a Nissen Fundoplication Procedure
Low Lithotomy Position with Bariatric Stirrups for Urology / Gynecology Procedures
|
