HarmonyAIR® E-Series Surgical Lighting System

This product is no longer available for purchase and has been replaced with a newer model. Learn about the HarmonyAIR® A-Series Surgical Lighting System.

VIEW SERVICE PARTS

This product is no longer available for purchase and has been replaced with a newer model. Learn about the HarmonyAIR® A-Series Surgical Lighting System.

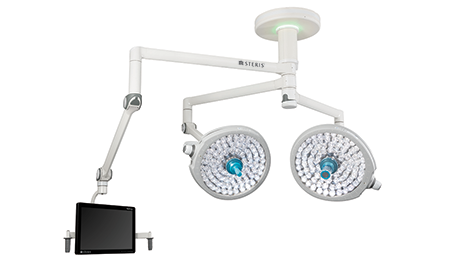

The HarmonyAIR E-Series Surgical Lighting System is a modular lighting system, providing high-quality illumination for surgical and diagnostic applications.

SPECIFICATIONS HARMONYAIR® E-SERIES SURGICAL LIGHTING SYSTEM

Max Central Illuminance

160,000 lux

Average pattern sizes

7-11" (18-28 cm)

Color temperature

4400K +/- 300K

CRI (Color Rendering Index)

Up to 96

R9 (deep saturated red color index)

Up to 98

Power Consumption

40 watts

Heat-to-light ratio (mW/m2 -1x)

3.1

Average LED bulb life

60,000 hrs

Brake Ring Technology

5+ Years Without Adjustment

Lightweight Suspension

30% Lighter than Previous Generations

Airfoil Designed Suspension

Minimizes Air Turbulance

Future Ready

Add up to two (2) Auxiliary Arms

Part number is required

By choosing genuine STERIS OEM replacement parts, you can be assured that each and every part is chosen based on the highest quality standards to ensure your equipment functions at its best. STERIS's OEM replacement parts promote compliance with regulatory requirements and organizational standards on equipment maintenance and repair.


PART # PART DESCRIPTION
P129389327 LGHT HD BRD ASM W/ FIRMW
10080617 RH COVER ASSY- RAL 9010
10080616 LH COVER ASSY- RAL 9010
10100366 PLUG SLIP RING,YPBPR,COAX
10098754 REC SLIP RING,YPBPR,CAT
10098753 PLUG SLIP RING,YPBPR,CAT
10097696 THUR BORE BRUSH BLOCK-NV
10077827 CLASS B POWER SUPPLY
10043581 BEZEL SWITCH-HARMONY AIR
10083046 FRONT/BACK CHASSIS ASSEMB
P764337464 MAINTENANCE MANUAL
OPERATORS MANUAL
Document # Document Title
HARMONYAIR SURGICAL LIGHTING SYSTEM E SERIES - OPERATOR MANUAL
TECH DATA SHEET
Document # Document Title
HARMONYAIR SURGICAL LIGHTING SYSTEM - E SERIES
BROCHURE
Document # Document Title
HARMONY E-SERIES BROCHURE
