IV Support
- IV support equipment including IV transfer system, IV poles, scope holder, IV pump support, and cable management extension arm
- TAD™ IV Transfer System enables safe movement of infusion and other pole-mounted equipment from a stationary position on a wall or surgical boom to a hospital bed, and vice versa
Product Overview
IV Support products include the TAD IV Transfer System, IV poles, pole mount IV extension arms, pump support and scope holders.
How STERIS IV Support Products Work
STERIS’s portfolio of IV Support products includes the TAD IV Transfer System, IV poles, pole mount IV extension arms, pump support and scope holders. STERIS IV Support for surgical booms enable safe, easy movement of infusion and other pole mounted equipment.
Why STERIS IV Support?

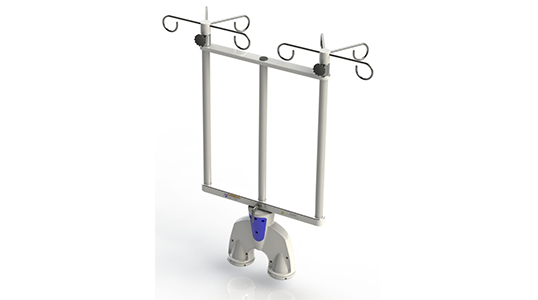

- TAD IV Transfer System – Enables safe movement of infusion and other pole mounted equipment from a stationary position on a wall or boom to a hospital bed, and vice versa. The TAD system consists of four elements: a transfer device with IV pole, a bed attachment arm with transfer cone, a headwall or column attachment arm with transfer cone, and a mobile docking station also with a transfer cone.

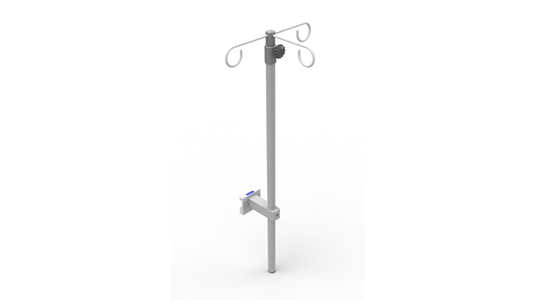

- IV Poles – Various types including single, double and swivel rail mounts
- IV Extension Arm – Can be used to extend the distance of the 1"diameter IV poles out from the EMS column
- Cable Management Extension Arm – Attaches to equipment boom columns via an Equipment Rail. This Extension Arm extends 32" out from the column and is used to manage patient leads and hoses.
- IV Poles and Pole Components - Variety of 1" IV poles and pole components that can be mounted to IV extension arms
- IV Pole Mounting Posts and Holders - Used with 1" diameter IV poles
- IV Pump Support
- Scope Holder - Used to hang GI scopes when not in use
Specifications
| Type | Equipment Number | Description |
|---|---|---|
| TAD™ IV Transfer System | LS1035205 | TAD™ Mobile Docking Station |
| TAD™ IV Transfer System | LS1035221 | TAD™ Bed Adaptor for Stryker In Touch Bed with Cone |
| TAD™ IV Transfer System | LS1035220L | TAD™ Bed Adaptor for Stryker Epic II Zoom Bed w/Cone (Left) |
| TAD™ IV Transfer System | LS1035220R | TAD™ Bed Adaptor for Stryker Epci II Zoom Bed w/Cone (Right) |
| TAD™ IV Transfer System | LS1035222 | TAD™ Bed Adaptor for Hill Rom Total Care with Cone |
| TAD™ IV Transfer System | LS1035201 | TAD™ Single IV Pole 27" Long, 4 Hook |
| TAD™ IV Transfer System | LS1035202 | TAD™ Triple IV Pole, 27" Long, 8 Hangers |
| IV Poles, Single with Extensions, Double Rail Mount | LS1014003 | 36" L IV Pole (Includes hooks, telescoping pole, and 2 rail mounts) |
| IV Poles, Single with Extensions, Double Rail Mount | LS1014004 | 48" L IV Pole (Includes hooks, telescoping pole, and 2 rail mounts) |
| IV Poles, Single with Extensions, Single Rail Mount | LS1014005 | 16" L IV Pole (Includes hooks,10" telescoping pole, and rail mount) |
| IV Poles, Single with Extensions, Single Rail Mount | LS1014006 | 24" L IV Pole (Includes hooks,15" telescoping pole, and rail mount) |
| IV Poles, Single with Extensions, Single Rail Mount | LS1014007 | 30" L IV Pole (Includes hooks, 20" telescoping pole, and rail mount) |
| IV Poles, 36" L with Extensions, Swivel Mount | LS1014001 | Single IV Pole with 10" L Swivel Arm |
| IV Poles, 36" L with Extensions, Swivel Mount | LS1014002 | Double IV Pole with Double 12" L Swivel Arm |
| IV Poles, 36" L with Extensions, Swivel Mount | LS1014P24 | Single Swivel 10" Arm Only |
| Pole Mount IV Extension Arm | LS1014008 | Double Arm (300mm & 500mm) - Mounts to 38mm Pole (Arm Only) |
| Pole Mount IV Extension Arm | LS1014010 | Single Arm (300mm) - Mounts to 38mm Pole (Arm Only) |
| IV Extension Arm | LS1022031 | Double Arm (300mm & 500mm) - Mounts to Harmony Air Channel (Arm Only) |
| IV Extension Arm | LS1022032 | Single Arm (500mm) - Mounts to Harmony Air Channel (Arm Only) |
| IV Extension Arm | LS1022033 | Single Arm (300mm) - Mounts to Harmony Air Channel (Arm Only) |
| Cable Management Extension Arm | LS1018068 | |
| IV Poles and Pole Components | LS1014P01 | Harmony EMS 2 Hook IV Hanger Head Only4" H, Harmony |
| IV Poles and Pole Components | LS1014P02 | EMS 3 Hook IV Hanger Head Only |
| IV Poles and Pole Components | LS1014P03 | Harmony EMS 1' Length - 25mm IV Pole Only |
| IV Poles and Pole Components | LS1014P04 | Harmony EMS 2' Length - 25mm IV Pole Only |
| IV Poles and Pole Components | LS1014P05 | Harmony EMS 3' Length - 25mm IV Pole Only |
| IV Poles and Pole Components | LS1014P06 | Harmony EMS Sgl 3' Length IV Pole W 20" Ext & 3 Hooks |
| IV Poles and Pole Components | LS1014P07 | Fixed Rail Mount For 1" IV Pole |
| IV Pole Mounting Posts and Holders | LS1018074 | 3" H, Mounts to Harmony EMS Vertical Channel |
| IV Pole Mounting Posts and Holders | LS1013024 | 4" H, Mounts to Equipment Rail |
| IV Pole Mounting Posts and Holders | LS1013022 | Universal IV Pole Holder for 25mm - 38mm poles |
| IV Pole Mounting Posts and Holders | LS1018062 | Block for Mounting IV Pole to Equipment Rail |
| Pump Support | THPUM6128 | Pump Support, Double Pole 28mm Diameter for HarmonyAIR |
| Scope Holder | LS1014105 | 36" Pole w/ Aluminum Scope Holder Kit (Includes Double Rail Mount, 20" Telescoping) |
| Scope Holder | LS1014105 | 36" Pole w/ Aluminum Scope Holder - Pole Only |
| Scope Holder | LS1014114 | 36" Pole w/ Vinyl Scope Holder Kit (Includes Double Rail Mount, 20" Telescoping) |
