Clinical and Equipment Shelves

  • Clinical and Equipment Shelves for surgical booms used for storing surgical equipment, accessories, and patient medical charts
  • Can attach to the HarmonyAIR® Equipment Column to optimize Operating Room space
  • Variety of sizes and options available, including mayo trays and workstation shelves

REQUEST A QUOTE

STERIS Clinical Shelves and Equipment Shelves for surgical booms help to increase surgical equipment and accessory storage space and improve OR organization by holding charts and other documentation.

How STERIS Clinical and Equipment Shelves Work
Clinical Shelves are designed for use in the critical care environment for additional equipment shelf space as well as to hold patient medical charts. All STERIS Clinical Shelves are made of aluminum and can be attached to the equipment rail on the HarmonyAIR® Equipment Column

Equipment Shelves are available in various sizes, and can be mounted to the rails of the HarmonyAIR Equipment Column to organize surgical equipment in the OR.

Why STERIS Clinical and Equipment Shelves?

Clinical / Medical Chart Shelves:

  • Angled Shelves attach via equipment rails on the EMS column and have optional Velcro® straps to secure equipment.
  • Flat Shelves attach to equipment rails on the EMS column.
  • Workstation Shelves create a flexible work surface or additional shelf space for the critical care area and will fold up when not in use to save space.

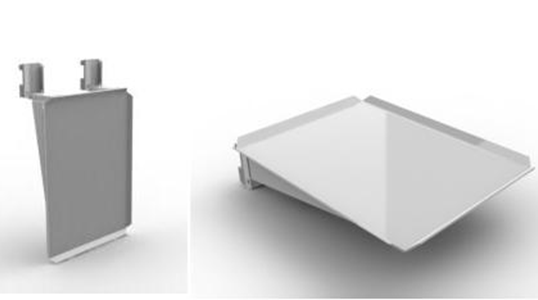

  • Hinged Shelves attach via the equipment rails on the equipment column and can be folded down when not in use to save space.
  • Mayo Trays attach to the equipment rails on the equipment column and can be folded down or removed when not in use to save space.

Equipment Shelves:

  • Small, Large and Extra-Large Equipment Shelves mount to the front rails of the HarmonyAIR® Equipment Column to organize your surgical equipment. For additional storage, a HarmonyAIR® Drawer Kit may be ordered separately.

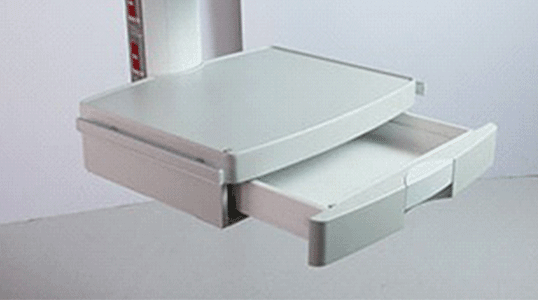

  • Equipment Shelf with Drawer and Mousepad includes a drawer with a slide-out mousepad.


Clinical Shelves

Shelf Type Equipment Number Dimensions Additional Information
 Angled  LS1009005  8" W x 8" D  without Velcro
 Angled  LS1009006  13" W x 8" D  without Velcro
 Angled  LS1009014  8" W x 8" D  with Velcro
 Angled  LS1009015  13" W x 8" D  with Velcro
 Flat  LS1009001  10" W x 8" D



 Flat  LS1009002
 10" W x 13" D
 Flat  LS1009003  13” W x 13" D
 Flat  LS1009004  19" W x 13" D
 Workstation  LS1009100  10" W x 15" D  Mounts to Extension Rail
 Hinged  LS1009007  9" W x 12" D
 Hinged  LS1009008  13.5" W x 10" D
 Hinged  LS1009009  17" W x 12" D
 Mayo Tray  LS1009010  13.625" W x 9.75" D  Hinged
 Mayo Tray  LS1009011  17.125" W x 11.625" D  Hinged
 Mayo Tray  LS1009012  13.625" W x 9.75" D  Removable
 Mayo tray  LS1009013  17.125" W x 11.625" D  Removable



Equipment Shelves

Shelf Type Equipment Number Description Dimensions Additional Information
 Equipment Shelves  THSHEL01  Large  25.6” W x 20.9” D  Large Shelf Only, 110 lbs. max load
 Equipment Shelves  THSHEL02  Large  25.6” W x 20.9” D  Large Shelf with 2 Rails, 110 lbs. max load
 Equipment Shelves
 THSHEL05  Large  25.6” W x 20.9” D  Large Shelf with 2 Handles, 110 lbs. max load
 Equipment Shelves  THSHEL06  Large  25.6” W x 20.9” D  Large Shelf with 2 Rails, 2 Handles, 110 lbs. max load
 Equipment Shelves  THDRAWLG  Large  25.6” W x 20.9” D  Drawer Kit for Large Shelves (Includes 1 Drawer and Mounting Hardware)
 Equipment Shelves  THSHES01  Small  17.7" W x 16.9" D  Small Shelf Only, 44 lbs. max load
 Equipment Shelves  THSHES02  Small  17.7" W x 16.9" D  Small Shelf with 2 Rails, 44 lbs. max load
 Equipment Shelves  THDRAWSM  Small  17.7" W x 16.9" D  Drawer Kit for Small Shelf (Includes 1 Drawer and Mounting Hardware)
 Equipment Shelves  LS17352545400  Extra-Large  30"   W x 25"   D  Extra-Large Shelf with Rails, 95 lbs. max load
 Equipment Shelves  LS1735254540BK  Extra-Large  30"   W x 25"   D  Extra-Large Shelf with Handles & 2 Rails, 95 lbs. max load
 Equipment Shelves  THSHEL4106  With Drawer and Mousepad  7.2" W x 14.2" D  Shelf with Drawer and Mousepad, 33 lbs. max load
