Equipment Rails for Surgical Booms
- Medical equipment rails provide flexibility to add snap-on accessories for surgical booms and accessory poles
- Variety of sizes and options available, including compact rails, cross rails, and heavy-duty rails
Product Overview
STERIS Equipment Rails for surgical booms provide flexibility to snap-on accessories for surgical booms and accessory poles in the Operating Room.
How STERIS Equipment Rails Work
STERIS’s portfolio of equipment rails includes compact rails, cross rails, surround rails, heavy-duty rails, pole mounted rails and rail hardware. These rails and accessories can attach to equipment columns, IV poles or wall mounts for attaching snap-on accessories for surgical booms.
Why STERIS Equipment Rails?
Equipment Rails:
- Compact Rail can be attached to an IV pole to provide four 4.5" sides of connection for attaching additional accessories
- Cross Rail attaches to the vertical channel of equipment column and is used to attach accessories via horizontal rails
- Surround Rail provides 360 degrees of accessory support around the HarmonyAIR® Equipment Column

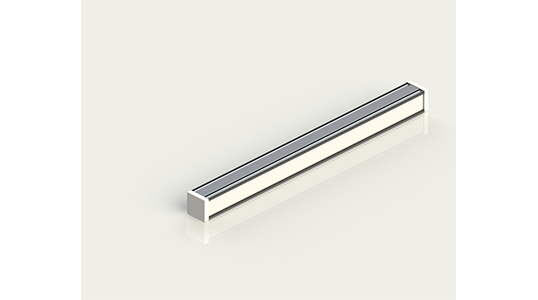

- Heavy Duty Equipment Rail attaches to a wall mount to provide flexibility to add snap-on accessories for equipment booms
- 38mm Pole Mounted Rail attaches snap-on accessories onto accessory poles
Equipment Rail Hardware and Accessories:
- Rail Mounting Hardware – Flush is used for wall mounting rails to equipment booms
- Rail Mounting Hardware – Standoff is used for wall mounting heavy-duty rails for equipment booms
- Equipment Rail End Caps are used to cover the ends of equipment boom rails
- Replacement Side Rail Kits - Order as replacement for existing rails only
Specifications
| Rail Type | Equipment Number | Description |
|---|---|---|
| Compact Rail | LS1018004 | 38mm IV Pole Mount |
| Compact Rail | LS1018005 | 25mm IV Pole Mount |
| Cross Rail | LS1022003 | 14" Front Cross Rail |
| Cross Rail | LS1022004 | 18" Front Cross Rail |
| Cross Rail | LS1022005 | 14" Front Cross Rail with 10" Side Rails |
| Cross Rail | LS1022006 | 18" Front Cross Rail with 10" Side Rails |
| Surround Rail | LS1022001 | 14" Rear Surround Rail |
| Surround Rail | LS1022002 | 24" Rear Surround Rail |
| Heavy Duty Equipment Rail | LS1002012 | 1' W, 2 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002024 | 2' W, 2 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002036 | 3' W, 3 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002048 | 4' W, 3 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002060 | 5' W, 4 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002072 | 6' W, 5 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002084 | 7' W, 6 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002096 | 8' W, 6 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002108 | 9' W, 7 Wall Mounting Holes |
| Heavy Duty Equipment Rail | LS1002120 | 10' W, 8 Wall Mounting Holes |
| 38mm Pole Mounted Rail | LS1013019 |
Equipment Rail Hardware and Accessories
| Type | Equipment Number | Description |
|---|---|---|
| Rail Mounting Hardware - Flush | LS1004P01 | Mounting for Metal Studs |
| Rail Mounting Hardware - Flush | LS1004P02 | Mounting for Drywall |
| Rail Mounting Hardware - Flush | LS1004P03 | Mounting for Masonry |
| Rail Mounting Hardware - Standoff | LS1004P04 | Mounting for Metal Studs |
| Rail Mounting Hardware - Standoff | LS1004P05 | Mounting for Drywall |
| Rail Mounting Hardware - Standoff | LS1004P06 | Mounting for Masonry |
| Equipment Rail End Caps | LS1002P01 | Heavy Duty (Qty 2) |
| Equipment Rail End Caps | LS1003P01 | Standard (Qty 2) |
| Replacement Side Rail Kits | LS1022008 | 14" for Standard 17" Shelf |
| Replacement Side Rail Kits | LS1022009 | 17" for Large 20" Shelf |
