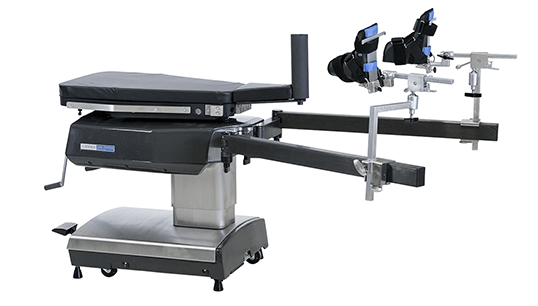

The STERIS Certified Pre-Owned OrthoVision Orthopedic Fracture Surgical Table is supplied with eight adjustable floor locks (one at each corner), four swivel casters, radiolucent abductor bars, a wedge-shaped sacral rest, and a perineal post to provide exceptional imaging capability, procedural flexibility, and excellent C-arm access for lower extremity fractures. This orthopedic fracture surgical table is manually powered and does not require any electrical power.
Disclaimer:
FEATURE | DESCRIPTION |
---|---|
Length |
87.2 in (1663.7 mm) |
Length (when folded for storage) |
29 in. (737 mm) |
Width |
27.5 in (699 mm) |
Maximum permissible load (anatomic position) |
400 lbs. (181 kg) |
Maximum permissible load (reverse orientation) |
300 lbs. (137 kg) |
Height |
29 – 47 in (737 – 1194 mm) |
Lateral Tilt (left/right) |
15° |
Trendelenburg/Reverse Trend |
15°/15° |
Battery Powered |
No |
