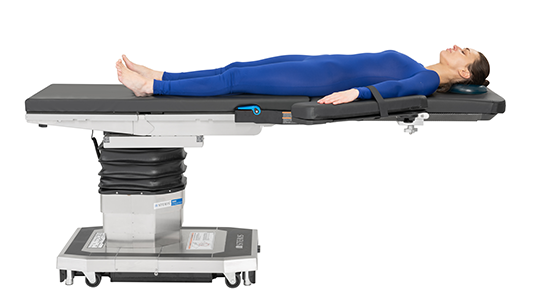

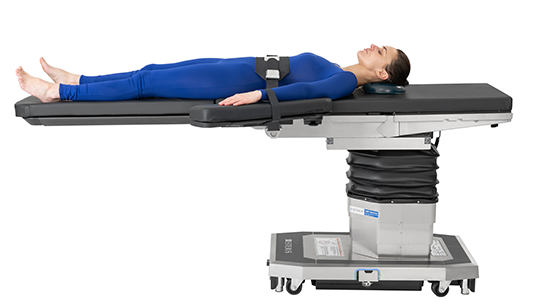

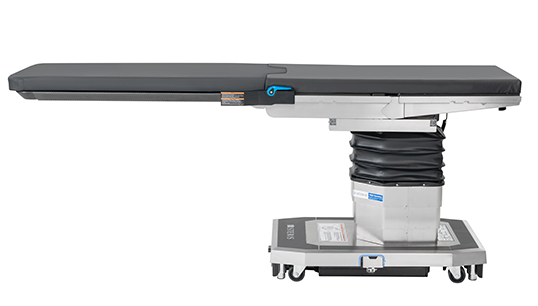

STERIS 44” Imaging Extension
- Radiolucent, metal-free extension for 360 degrees of x-ray or fluoroscopic imaging
- Increases upper or lower body imaging up to 63 inches
- Siderail connection to all STERIS 4000-, 5000-, and 7000-series surgical tables
- Broadens surgical capabilities for STERIS surgical tables
Product Overview

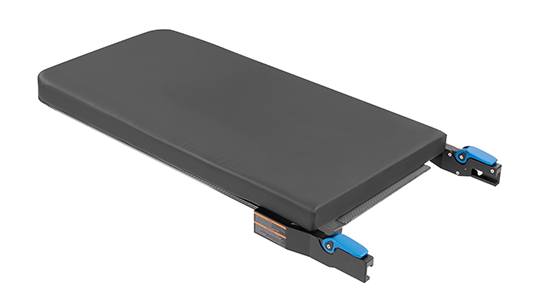

The STERIS 44” Imaging Extension features metal-free radiolucent beveled edges for 360 degrees of imaging using a mobile C-Arm X-Ray and increases upper or lower body imaging up to 63 inches. This 44-inch-long carbon fiber accessory extension is a fluoro table extension that broadens the surgical capabilities of STERIS general surgical tables when using intraoperative x-ray or fluoroscopy. It can be used during cardiovascular procedures, endovascular procedures, AV fistula procedures, pain management, and other procedures that require the enhanced imaging ability typically found on image-guided surgical tables. Quick-connect locks make attachment to the table siderail easier for a single operating room staff. The accessory is available with or without a 2-inch pressure management pad.
Available Models:
- BF00316 – for STERIS 7000-series Surgical Tables (includes 2” TLT pad)
- BF00317 – for STERIS 7000-series Surgical Tables (without pad)
- BF604 – for STERIS Cmax, 4000-, 5000-series Surgical Tables (includes 2” TLT pad)
- BF60401 – for STERIS Cmax, 4000-, 5000-series Surgical Tables (without pad)
Table Compatibility:
- Compatible with CMAX X-Ray Image-Guided surgical table (Gen. 1; NA only), 4085, 4095, 5085, 5085 SRT, 5085 Harmony, 5095 & 7080 models
- TA00012 – Standard Siderail Adapter (1)
- TA00005 – Standard Siderail Adapter (Kit of 3)
- BF178 – 2” TLT Pad for 44” Imaging Extension
Specifications
Dimensions:
| Specification | Description |
|---|---|
| Carbon Fiber Board (only): | 43.75” (L) x 21” (W) x 2” (H) without pad |
| Overall: | 50” (L) x 23” - 24.125” (W) x 3.3” (H) without pad |
Weight Capacity:
| Surgical Table Model | Patient Weight Capacity |
|---|---|
| 7080 |
Tabletop with slide induced: 600 lbs (272 kg) Tabletop centered: 700 lbs (317 kg) |
| 5095, 5085, 5085 SRT, 5085 Harmony |
Tabletop with slide induced: 250 lbs (113 kg) Tabletop centered: 300 lbs (136 kg) |
| 4095, 4085, Cmax (Gen 1.;NA only) | Tabletop with slide induced: 300 lbs (136 kg) Tabletop centered: 400 lbs (181 kg) |
Not manufactured with natural rubber latex.
Shop Now
| Product Number | Description | |
|---|---|---|
| BF178 | 2" TLT Pad with Velcro® fasteners | |
| BF604 | 44" Imaging Extension for 4000- & 5000-Series Tables, includes 2" TLT Pad with Velcro® fasteners | |
| BF60401 | 44" Imaging Extension for 4000- & 5000-Series Tables, Extension Only | |
| BF00316 | 44" Imaging Extension for 7000-Series Table, includes 2" TLT Pad with Velcro® fasteners | |
| BF00317 | 44" Imaging Extension for 7000-Series Table, Extension Only |
