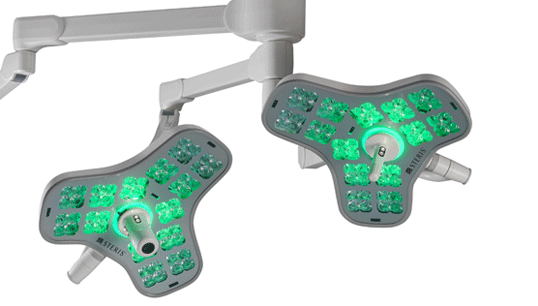

ALYON™ Surgical Lighting System

  • Smart, Sleek and Adaptable
  • Superior optical performance
  • Designed to accommodate the needs of any operating room and any budget
  • Over 160 ways to customize your lighting experience

REQUEST A QUOTE

Product Overview

The ALYON™ Surgical Lighting System offers superior optical performance that is smart, sleek, and adaptable:

Smart.

  • Automatic Intensity maintains preferred illuminance despite changes made to the spot size of the surgery light

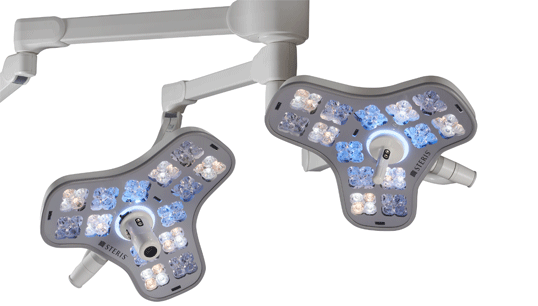

  • Adaptive Lighting utilizes sensors to detect obstructions and dim blocked portions of the lighthead while boosting others to maintain illumination
  • Integrated ambient light and task light provide low illumination levels during minimally invasive procedures

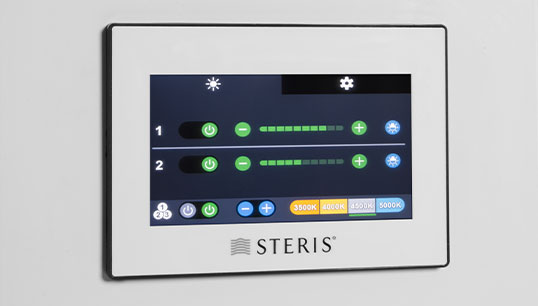

  • With four different spot sizes (6.7-11”), four different color temperatures (3,500-5000 kelvin), and ten different intensities, there are over 160 different ways to customize your operating room lighting experience
  • An optional HD camera provides clear, vivid surgical site visualization

Sleek.

  • Unique design promotes unobstructed airflow to the surgical site
  • The lighthead has an ingress protection rating of IP54 to help guard against dust and fluids
  • Durable aluminum materials ensure the light can withstand the rigors of the OR

Adaptable.

  • An open architecture allows the full customization of the ALYON system to meet the needs of any operating room
  • Configurable to any OR set up with a highly customizable solution consisting of:

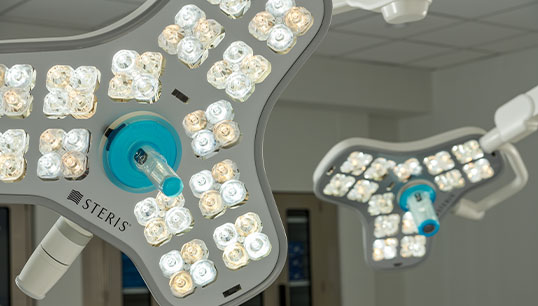

    • Lightheads

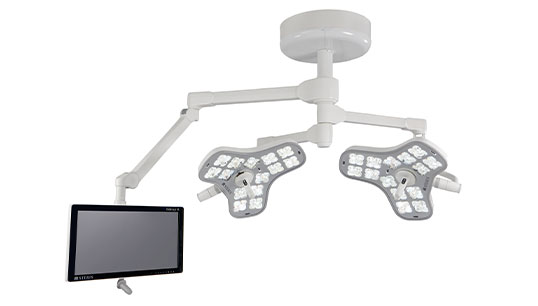

    • Single or Dual (side-by-side) Monitors
    • All-Power or Standard ConnectPoint® Video Connectivity System
    • Radiation Sheild
    • In-Light Cameras

How the ALYON™ Surgical Lighting System Works

The ALYON™ Surgical Lighting System combines performance and customization that is excellent for any Operating Room (OR) and Ambulatory Surgery Center (ASC) settings. This surgical light has ten different intensity settings, four spot sizes (focal point sizes), and four different color temperature options with 160 ways to customize your lighting experience. Automatic intensity feature allows for consistent illumination despite adjustments to the lighting system. Adaptive lighting automatically detects obstructions to dim blocked portions of the lighthead for a more comfortable experience for the surgical team.

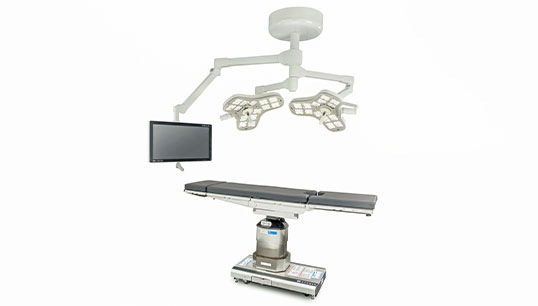

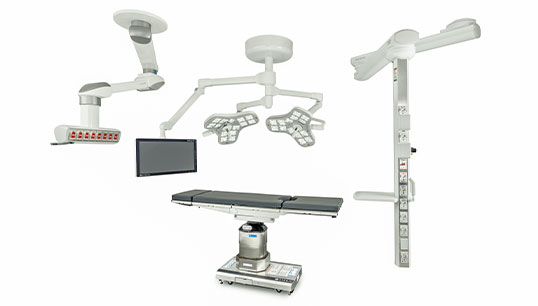

An adaptable suspension system allows for customization of the operating suite, including operating room lights, monitors (single or side-by-side), standard or All-Power ConnectPoint utility management solutions, and radiation shields. The optional HD camera provides quality, high-resolution visualization of the surgical site.

Key Features of the ALYON™ Surgical Lighting System:

  • Automatic Intensity – Maintain preferred illumination when the light is adjusted
  • Adaptive Lighting – Obstructed LEDs dim and non-obstructed LEDs boost to maintain illumination and comfort for the surgical staff
  • Designed with Airflow in Mind – Unique shape allows clean, laminar air to glide gently around the lighthead
  • Adaptable Suspension System – With thousands of combinations, the system can be customized for any operating room and budget
Go to Top of Page


Specifications

FEATURE ALYON™ SURGICAL LIGHTING SYSTEM

*All figures +/- 10%

# LEDs 56
Maximum Central Illuminance 160 klx
Pattern Size (D10) 45,000+
Color Temperature Adjustable 6.7" - 11" (17 - 28 cm)
Color Temperature 3500-4000-4500-5000 kelvin
CRI Up to 98
R9 Up to 97
Power Consumption (LEDs Only) 40 Watts
Life (B50, L70 definition) 60,000+ Hours
IP Rating IP54
Available In-Light Camera HD
Available Accessories Single Monitor, Dual (side-by-side) Monitor, ConnectPoint, All-Power ConnectPoint, Radiation Shield
Go to Top of Page


Videos

HarmonyAIR® ALYON Surgical Lighting System

Go to Top of Page


Literature

OPERATORS MANUAL
Document # Document Title
HARMONYAIR ALYON SURGICAL LIGHTING SYSTEM OPERATOR MANUAL (NORTH AMERICA)
BROCHURE
Document # Document Title
ALYON SURGICAL LIGHTING SYSTEM BROCHURE
ALYON SURGICAL LIGHTING SYSTEM BROCHURE (CANADA)
ALYON SURGICAL LIGHTING SYSTEM BROCHURE (FRENCH)
