AMSCO® Rack Return

  • Two door design helps prevent airflow cross contamination
  • Automated doors provide hands-free operation
  • Optional communication system promotes teamwork allowing staff to talk between sides while not compromising airflow

REQUEST A QUOTE

The AMSCO® Rack Return helps transfer manifold racks and washer accessories with ease. The interlocking, two door design allows only a single door to be open at one time – helping maintain positive airflow and preventing cross contamination between the two sides of the Sterile Processing Department (SPD).

How the AMSCO Rack Return Works

When a transfer cart on the clean side interfaces with the washer rack return, the chamber door is automatically opened, and the empty rack is moved into the chamber. The rack is then moved from the rack return to the transfer cart on the soiled side for hands-free operation. The AMSCO Rack Return is compatible with accessories processed in STERIS Single-Chamber Washer/Disinfectors.

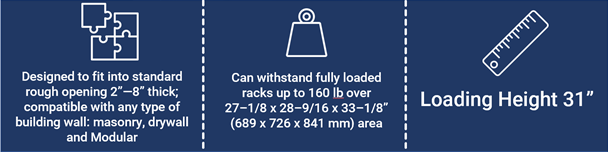

AMSCO Rack Return Infographic - Designed to fit into standard rough opening 2" - 8" thick. Can withstand fully loaded racks up to 160lbs. Loading height 31"

Why Choose the AMSCO Rack Return?

  • Interlocked two door system helps maintain compliance with ANSI/ASHRAE/ASHE Standard 170-2017, Ventilation of Health Care Facilities by maintaining negative air flow on the soiled side and positive pressure on the clean side
  • Obstruction sensor automatically opens the door when an obstruction is present
  • Accommodates both standard and long chamber racks and is compatible with universal and hinge style transfer carts
  • Chamber status lights* indicate when the rack return is ready for use, unloading or if an alarm occurs
  • Communication system* promotes teamwork allowing staff to talk between sides while not compromising airflow

Equipment Specifications

The AMSCO Rack Return is compatible with the following equipment:

The AMSCO Rack return fits into a standard rough opening, through 2-8” thick walls, without any special modifications and is compatible with any type of building wall: masonry, drywall, and modular walls.

Overall Dimensions 883W x 2362H x 1008L mm (34–3/4W x 93H x 39–11/16”L)
Interior Chamber Dimensions 689W x 726H x 841L mm (27–1/8W x 28–9/16H x 33–1/8”L)
Door Dimensions 689W x 726H mm ( 27–1/8W x 28–9/16”H)
Utility Requirements Air: 1/8 NPT
Electric (US): 100–120 V, 60Hz, 4 Amps
Electric (EU): 220–240 V, 50Hz, 3 Amps

*Optional accessories

Compatible Washer/Disinfectors

AMSCO® 7053HP Washer Disinfector

  • The only washer/disinfectors with a validated cycle for da Vinci® instruments.
  • 50% more throughput compared to standard single chamber washers

AMSCO® 7052HP Washer Disinfector

  • The only washer/disinfectors with a validated cycle for da Vinci® instruments.
  • Fastest instrument cycle time on the market – 16 minutes

AMSCO® 5052 Single-Chamber Washer/Disinfector

  • The AMSCO 5052 Single-Chamber Washer/Disinfector is designed for use in the cleaning and intermediate-level disinfection of soiled reusable utensils, trays, bedpans and urinals.

AMSCO® 3052 Single-Chamber Washer/Disinfector

  • The AMSCO 3052 Single-Chamber Washer/Disinfector is designed for use in the cleaning and intermediate-level disinfection of soiled reusable utensils, trays, bedpans and urinals.

Sterile Processing Accessories

Washer Racks

  • Racks can be loaded from any side
  • Ensure safe handling with cool touch handles

ATLAS™ Workflow Automation Vehicle

  • Effortlessly transfer loads and elevate your demanding Sterile Processing Department with workflow automation.
