Deluxe Arthroscopic Leg Holder System
- Leg holder system typically used for knee arthroscopy procedures
- Attaches to the table via a socket clamp
- Disposable Leg Holder Pads
- Diameter is adjustable via crank handle
Product Overview

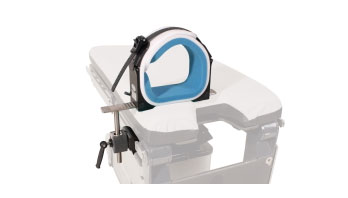

The Deluxe Arthroscopic Leg Holder System (BF12) is designed for proper patient positioning for knee surgery. Requires (1) Clip-On Socket Clamp (BF10) or similar.
How the Deluxe Arthroscopic Leg Holder System for Orthopedic Procedures Works
The Deluxe Arthroscopic Leg Holder System features a smooth, one directional locking mechanism which enables the caregiver to set rigid fixation with one hand operation. The hinged upper brace accommodates patients while the structurally enhanced design enables the staff to apply pressure both medially and laterally. The ratchet-style securement strap easily adjusts for precise amount of compression.
Why the Deluxe Arthroscopic Leg Holder System for Orthopedic Procedures
The Deluxe Arthroscopic Leg Holder System holds legs up to 35” (89 cm) in circumference. The ratchet-style system is easy to adjust for proper patient positioning. Includes (3) Disposable Leg Holder Pads (BF13) for gentle, non-abrasive skin contact. Patient weight capacity is 500 lbs.
Specifications
Dimensions:
- Arthroscopic Leg Holder (Frame): 3" L x 15 ¾" W x 17" H
- Maximum leg circumference 35" (89 cm)
- Leg width adjustment range 0" – 11"
- Disposable Leg Holder Pad: 37 ¾" L x 3 ⅜" W
Weight Capacity:
- Patient weight capacity is 500 lbs.
Additional Details:
- Product includes (3) Disposable Leg Holder Pads (BF13) with purchase.
- Additional Disposable Leg Holder Pads sold separately in cases of (12).
- Not manufactured with natural rubber latex.
|
