ARCH Traction Boot

  • Available in blue or red (color) and in small or medium sizes
  • Two points of contact to secure boot to ARCH Orthopedic Leg Positioner
  • Hook and loop fasteners to allow for a custom, snug fit
  • Optional single-use traction boot liners support infection control initiatives and patient safety


Shop Now

Product Overview

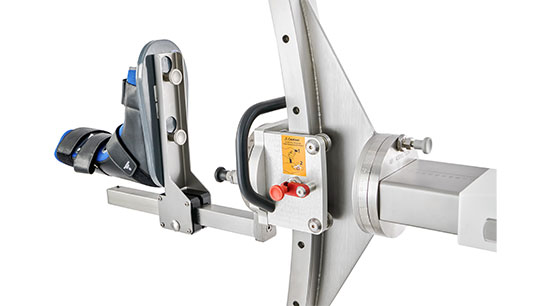

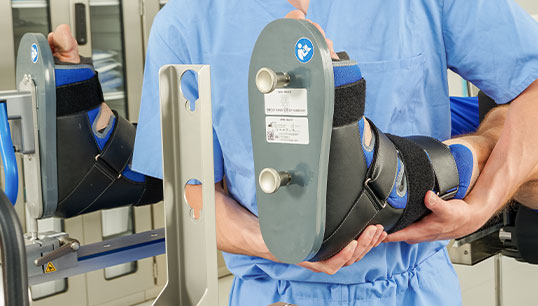

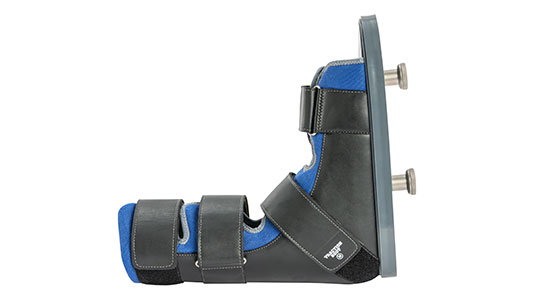

The ARCH Traction Boot mounts the patient’s operative foot to the ARCH Orthopedic Leg Positioner. There are two knurled nuts on the sole of the traction boot to securely fix the traction boot to the ARCH Leg Positioner. A deep heel cup ensures the patient’s foot settles firmly into the boot to secure the operative foot firmly. The medium-sized boot fits most adults and comes standard with the ARCH. The small-size traction boot is best for small adult feet and pediatrics. Pair with single-use traction boot liners to maximize the securing strength of the patient’s operative foot in the traction boot while increasing infection control initiatives.

Go to Top of Page


Model Information

Model Number Description
BF00409 ARCH Traction Boot Small (Blue)
BF00410 ARCH Traction Boot Medium (Blue)

Weights & Dimensions

Measurement Description
Weight 2.5 lbs (1.1 kg)
Length 13.5 in (34 cm)
Width 12.0 in (30.5 cm)
Height 5.0 in (13 cm)

Additional Specifications

Specifications Description
Weight Capacity 500 lbs (227 kg)
Useful Life 5 years
Contains Latex No
Go to Top of Page

Shop Now

Product Number Description
BF00409 ARCH Traction Boot, Blue, Small
BF00410 ARCH Traction Boot, Blue, Medium
