LUMIFLEX™ 3-Stage Balloon Dilatation Catheter
- Versatile 3-Stage Balloon Dilatation Catheters: Each catheter features three progressive diameters for efficient dilation of esophageal, pyloric, or colonic strictures—saving time compared to single-stage balloons

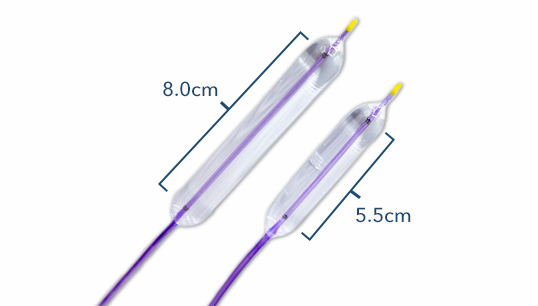

- Wire-Guided Options: Offered in 5.5 cm and 8 cm lengths, with removable wire for optional use or compatibility with a 0.035" guidewire as needed
- Non-Wire Guided: A novel cost-effective dilation balloon catheter designed for procedures not requiring wire guidance, yet compatible with a 0.035" wire via an integrated channel
- Radiopaque Markers and Uniform ATMs: All balloons include markers for accurate fluoroscopic placement and share the same ATM (Atmospheric Pressure) values per stage for ease of use
Product Overview

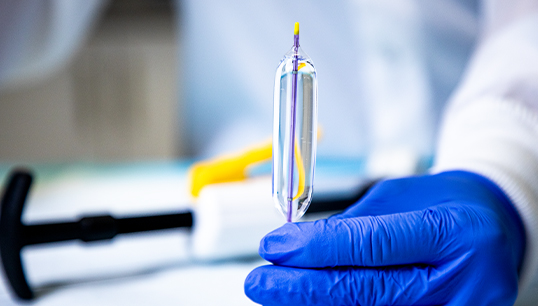

LUMIFLEX 3-Stage Dilation Balloons are advanced, single-use devices designed to treat gastrointestinal (GI) strictures through controlled, progressive inflation. These balloon dilatation catheters feature three inflation diameters in a single catheter, which is ideal for use in esophageal, pyloric, or colonic applications. Both wire-guided and non-wire-guided versions offer flexibility for various clinical preferences. Used alongside the LUMIFLEX Inflator, they provide precise control for effective and safe stricture management.

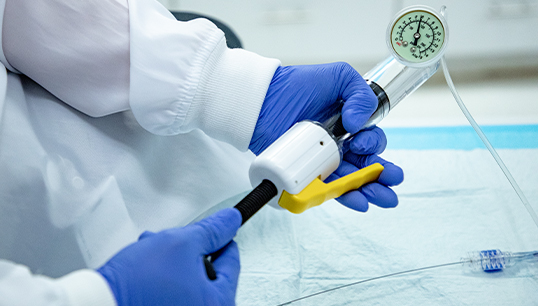

The LUMIFLEX System uses 3-stage dilation balloons to gently expand strictures in the GI tract by inflating to three preset diameters. The balloon catheter is guided into position, using radiopaque markers and an optional guide wire, ensuring accurate placement during procedures. The LUMIFLEX Balloon Inflator then delivers fluid to expand the balloon to a controlled pressure level ATM for gradual dilation. This streamlined process reduces the need for multiple devices and enhances the efficiency of esophageal balloon dilation and other GI interventions.
LUMIFLEX Dilation Balloons simplify stricture treatment with their multi-stage design, allowing three dilations in one device and reducing procedural time. Physicians benefit from enhanced control and efficiency during esophageal balloon catheter use, with options tailored to procedural needs. The single-use format eliminates reprocessing concerns and enhances infection control.
Shop Now
| Product Number | Description | Balloon Length (cm) | Catheter Length (cm) | Balloon Size (mm) | Wire Included | Units/Box | |
|---|---|---|---|---|---|---|---|
| BX00715506W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 6-8 | Yes | 1 | |
| BX00715508W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 8-10 | Yes | 1 | |
| BX00715510W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 10-12 | Yes | 1 | |
| BX00715512W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 12-15 | Yes | 1 | |
| BX00715515W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 15-18 | Yes | 1 | |
| BX00715518W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 18-20 | Yes | 1 | |
| BX00715506 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 6-8 | No | 1 | |
| BX00715508 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 8-10 | No | 1 | |
| BX00715510 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 10-12 | No | 1 | |
| BX00715512 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 12-15 | No | 1 | |
| BX00715515 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 15-18 | No | 1 | |
| BX00715518 | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 5.5 | 240 | 18-20 | No | 1 | |
| BX00718006W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 6-8 | Yes | 1 | |
| BX00718008W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 8-10 | Yes | 1 | |
| BX00718010W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 10-12 | Yes | 1 | |
| BX00718012W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 12-15 | Yes | 1 | |
| BX00718015W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 15-18 | Yes | 1 | |
| BX00718018W | LUMIFLEX™ 3-Stage Balloon Dilatation Catheter | 8.0 | 180 | 18-20 | Yes | 1 |
LUMIFLEX™ Set-Up Video
|
QUICK START GUIDE
|
|
|---|---|
| Document # | Document Title |
| LUMIFLEX QUICK REFERENCE GUIDE (US) | |
|
BROCHURE
|
|
|---|---|
| Document # | Document Title |
| LUMIFLEX BROCHURE (US) | |
|
INSTRUCTIONS FOR USE
|
|
|---|---|
| Document # | Document Title |
| LUMIFLEX BALLOON INFLATOR IFU | |
| LUMIFLEX SINGLE USE BALLOON DILATATION CATHETER | |
