ENDODRY™ Drying and Storage System

  • Provides a controlled environment for the drying and storage of endoscopes after a successful reprocessing cycle
  • Assists with the endoscope drying process in as little as one hour for the internal channels and three hours for the external portion1
  • For use with the ADVANTAGE PLUS™ AER and cassette to minimize handling

REQUEST A QUOTE

Product Overview

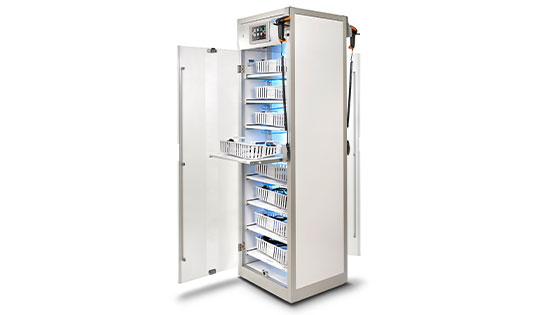

The ENDODRY Drying and Storage Cabinet was shown via a peer-reviewed study in the American Journal of Infection Control (AJIC) - to dry internal endoscope lumens within one hour, and external endoscope surfaces within three hours providing storage for up to 31 days with only low microbial levels detected.1 Available in single-sided or pass-thru models (front and back door) for separation of wet and dry areas, the ENDODRY Drying & Storage System works paired with the ADVANTAGE PLUS™ AER and cassette which minimizes handling.

How the ENDODRY Drying and Storage System Works

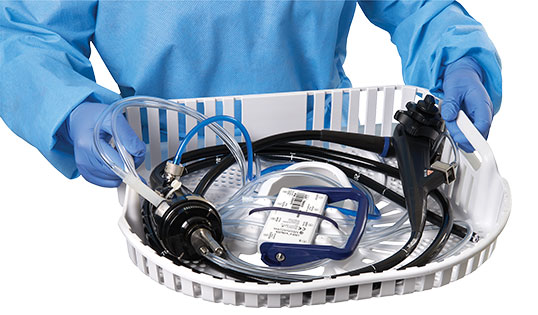

After processing in an ADVANTAGE PLUS AER, the endoscope is transferred to the ENDODRY Drying & Storage System in its cassette, then uses external instrument grade compressed air to aid in the amount of time needed for the drying process of a flexible endoscope.

Assists with the endoscope drying process in as little as one hour for the internal channels and three hours for the external endoscope surfaces. The cassette then maintains the status of a patient-ready endoscope for up to 31 days.1

Why the ENDODRY Drying and Storage System?

  • Provides a controlled environment for the drying and storage of endoscopes after a successful reprocessing cycle
  • Pairs with the ADVANTAGE PLUS Automated Endoscope Reprocessor to facilitate data transfer between the two devices
  • With SMART Connect in place, the ENDODRY Cabinet alerts users that the endoscope has not completed a successful HLD cycle in the AER. Additionally, it won’t allow the endoscope to enter the ENDODRY™ Cabinet if the endoscope has been removed from the AER without entry into the cabinet for over an hour.

ENDODRY Cabinet Specifications

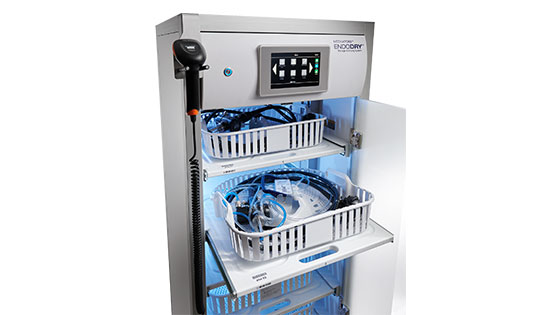

  • Color touch screen display for quick identification of endoscope storage time
  • Barcode scanner for endoscope and operator identification
  • Locking doors protect endoscope inventory
Dimensions Electrical Requirements
75 H x 24 W x 22 D (inches)
190 H x 60 W x 54 D (cm)
100-240 VAC, 50/60HZ, Power Input: 75W, Fuse: T2A (internal device) 15A (circuit)
Air Requirements Available Configurations
Instrument grade air
(See technical documents)
Available in single-sided or pass-thru models

1 Perumpail, Ryan B. et al. Endoscope reprocessing: Comparison of drying effectiveness and microbial levels with an automated drying and storage cabinet with forced filtered air and a standard storage cabinet. American Journal of Infection Control, Volume 47, Issue 9, 1083 – 1089. https://www.ajicjournal.org/article/S0196-6553(19)30104-X/addons
