CLEANASCOPE™ Transport and Short-term Storage Systems
- Endoscope transport carts with clear identification of clean versus contaminated endoscopes
- Robust, reusable tray accommodates large or small diameter endoscopes, and the Transport Cassette used with ADVANTAGE PLUS™ AERs
- Allows for protected short-term storage of patient-ready endoscopes
How the CLEANASCOPE™ Transport and Short-term Storage Systems Work
Green (clean) and red (contaminated) color-coded liners immediately identify reprocessed or contaminated equipment.

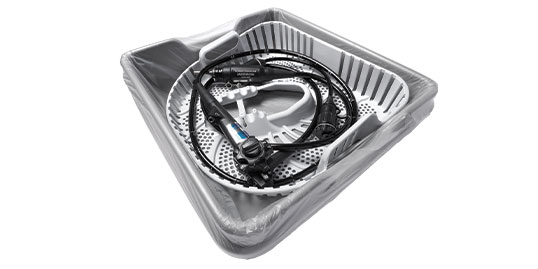

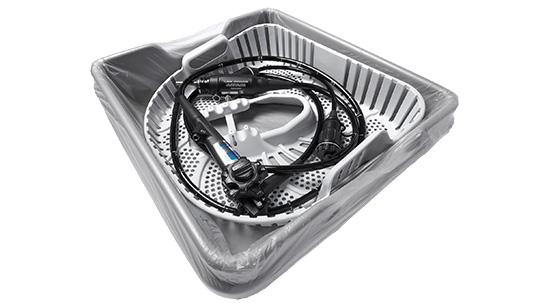

- Step 1: After processing, line the reusable endoscope transport tray with the sterile base liner and place the clean endoscope and the folded sterile red liner into the tray

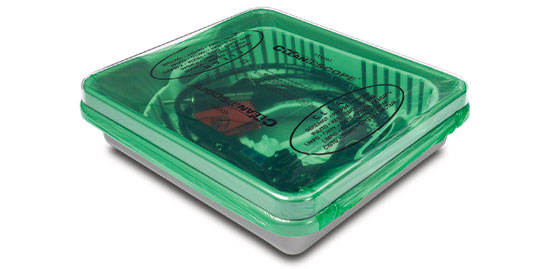

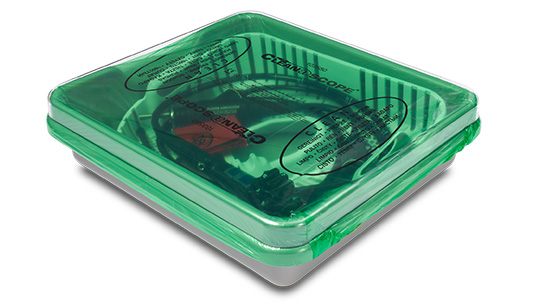

- Step 2: Cover the transport tray with the sterile green liner marked “CLEAN,” identifying this as a patient-ready endoscope

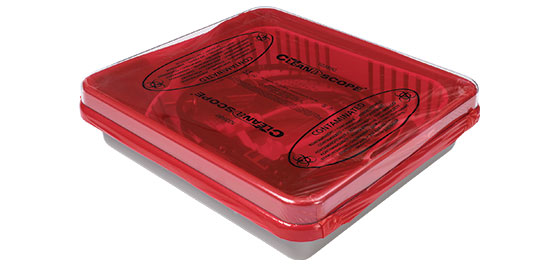

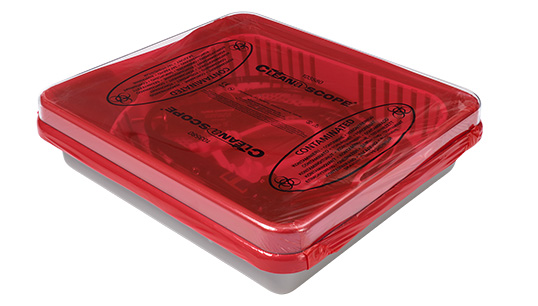

- Step 3: Place the contaminated endoscope inside the tray after the procedure and point-of-use processing are complete. Cover the tray using the sterile red liner to clearly identify a "CONTAMINATED" endoscope. Use the endoscope transport cart to return the device for reprocessing.
Why the CLEANASCOPE™ Transport and Short-term Storage System?
Integrating CLEANASCOPE Systems into your facility workflow helps with conformance to ANSI/AAMI ST91:2021 and AORN best practice guidelines and recommendations for endoscope transportation.
- A robust, reusable endoscope transport tray accommodates large endoscopes and the Transport Cassette used with ADVANTAGE PLUS™ AERs
- Transport Cassettes are an integral part of the STERIS No-Touch Workflow System, allowing endoscope transport through the reprocessing cycle with minimal handling to help prevent recontamination and reduce the potential for endoscope damage

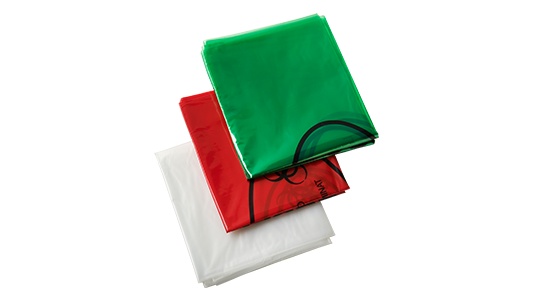

- A three-part, single-use sterile packed liner system reduces the potential for cross-contamination
- Hard lids are available for added protection when transporting outside the department
Shop Now
Select a product below to purchase online at Shop STERIS. If additional support is needed, please contact your STERIS Representative or call 800-333-8828 for assistance.
CLEANASCOPE ADVANTAGE System Dedicated Consumables
| Product Number | Description | Unit of Measure | |
|---|---|---|---|
| 103585 | CLEANASCOPE ADVANTAGE Sterile Liner/Cover Set | 200/case | |
| 103456 | CLEANASCOPE ADVANTAGE Tray | 1/EA | |
| 103457 | CLEANASCOPE ADVANTAGE Tray Lid – Clear | 1/EA | |
| CAS1000 | CLEANASCOPE ADVANTAGE Cassette | 1/EA |
CLEANASCOPE System Dedicated Consumables
| Product Number | Description | Unit of Measure | |
|---|---|---|---|
| 103580 | CLEANASCOPE Sterile Liner/Cover Set | 200/case | |
| 103614 | CLEANASCOPE Tray | 1/EA | |
| 104456 | CLEANASCOPE Tray Lid – Clear | 1/EA | |
| 103615 | CLEANASCOPE Tray Lid – Gray | 1/EA |
Optional Accessory – compatible with both dedicated liners
| Product Number | Description | Unit of Measure | |
|---|---|---|---|
| 103604 | CLEANASCOPE Dispenser (wall-mounted) | 1 |

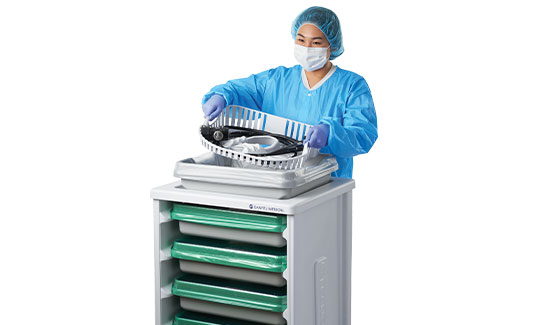

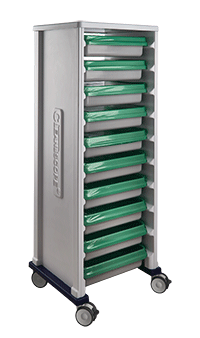

CLEANASCOPE™ CART
Available in CLEANASCOPE & CLEANASCOPE ADVANTAGE cart versions:
| Product Number | Description | Dimensions | |
|---|---|---|---|
| 103470 | ADVANTAGE Five tray cart – Includes the cart and 5 trays |
35.8"H x 25.1"W x 22.4"D (in) | |
| 103466 | ADVANTAGE Six tray cart – Includes the cart and 6 trays |
41.7"H x 25.1”W x 22.4"D (in) | |
| 103467 | ADVANTAGE Ten tray cart – Includes the cart and 10 trays |
64.6"H x 25.1”W x 22.4"D (in) | |
| 103633 | Five tray standard cart – Includes the cart and 5 trays |
31”H x 20.8”W x 22.2”D | |
| 103630 | Six tray standard cart – Includes the cart and 6 trays |
36”H x 20.8”W x 22.2”D | |
| 103631 | Ten tray standard cart – Includes the cart and 10 trays |
56.5H x 20.8W x 22.2D |
FAQ
-
What is the difference between CLEANASCOPE and CLEANASCOPE ADVANTAGE?
The CLEANASCOPE ADVANTAGE is compatible with the MEDIVATORS ADVANTAGE PLUS Automated Endoscope Reprocessor and MEDIVATORS ADAVANTAGE PLUS Pass-Thru Automated Endoscope Reprocessor transport cassettes. These Transport Cassettes are an integral part of the STERIS No-Touch Workflow System, allowing endoscopes to transport through the reprocessing cycle with minimal handling, helping to prevent recontamination and reduce the potential for endoscope damage.
-
Can trays and liners be purchased separately, without including the cart?
Yes, trays and liners can be purchased separately from either the CLEANASCOPE or CLEANASCOPE ADVANTAGE Transport and Short-Term Storage Systems.
-
Are the CLEANASCOPE and CLEANASCOPE ADVANTAGE liners sterilized?
Yes, the CLEANASCOPE and CLEANASCOPE ADVANTAGE liners are single-use and are sterile.
-
Are hard lids available for the CLEANASCOPE and CLEANASCOPE ADVANTAGE trays?
Yes, hard lids are available for both systems. The table below includes the corresponding part numbers and dimensions for each tray lid.
Product Number Description Dimensions 103457 CLEANASCOPE ADVANTAGE Tray Lid – Clear 1.3H x 19.5W x 17.8”D 104456 CLEANASCOPE Tray Lid – Clear 1.2H x 20.1W x 16”D 103615 CLEANASCOPE Tray Lid – Gray 1.2H x 20.1W x 16”D -
Are the CLEANASCOPE Carts compatible with reprocessing in a cart washer?
No, the CLEANASCOPE and CLEANASCOPE ADVANTAGE Carts cannot be reprocessed in a cart washer.
-
Is there a wall-mounted dispenser available to store the CLEANASCOPE and CLEANASCOPE ADVANTAGE Liners?
Yes, a wall-mounted dispenser that holds up to 75 liner pouches is available for purchase.
Product Number Description Dimensions 103604 CLEANASCOPE ADVANTAGE Dispenser (wall-mounted) 17.7H x 6.7W x 4.7D -
What are the dimensions of the CLEANASCOPE and CLEANASCOPE ADVANTAGE Trays?
Product Number Description Dimensions 103456 CLEANASCOPE ADVANTAGE Tray 4.8H x 20.6W x 18.3”D 103614 CLEANASCOPE Tray 4.1H x 20.7W x 16.7”D
|
