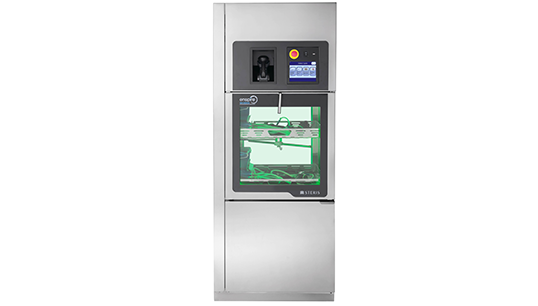

enspire™ 300 Series Automated Endoscope Reprocessor

  • Cycles: Validated cleaning claim and high-level disinfection (HLD) process
  • Workflow: Allows for flexibility with either pass-thru or single-sided configuration
  • Capacity: Clean and HLD up to two endoscopes or six non-channeled naso-endoscopes at the same time in a 34-minute cycle*
REQUEST A QUOTE

Shop Now

Product Overview

The enspire™ 300 Series Automated Endoscope Reprocessor (AER) provides high-level disinfection (HLD) of validated immersible, reusable, semi-critical, and heat-sensitive medical devices. It is the only Pass-Thru Reprocessor with a validated cleaning claim for automated endoscope cleaning.

The wash phase of the enspire 300 Series AER cycle uses Revital-Ox™ 2X Concentrate Enzymatic Detergent to perform cleaning, followed by a high-level disinfection phase for a total cycle time of 34 minutes*, with optimal utilities.

The AER also offers an HLD Only cycle which provides high-level disinfection, rinsing, and air purge phases in a fast 22-minute cycle. Endoscopes must be manually cleaned prior to running the HLD Only cycle.

How the enspire™ 300 Series Automated Endoscope Reprocessor Works

The enspire™ 300 Series Automated Endoscope Reprocessor System is intended to effectively provide a pressure and channel monitor, clean, high-level disinfect, rinse and air purge validated immersible, reusable, semi-critical, heat-sensitive medical devices including, but not limited to, flexible endoscopes and non-channeled naso-endoscopes. The validated cleaning process replaces manual cleaning for endoscopes other than duodenoscopes. Manual Cleaning of endoscopes is required prior to placement in the "high-level disinfection only" cycle.

The enspire 300 Series Automated Endoscope Reprocessor System uses Revital-Ox PAA High Level Disinfectant to provide high-level disinfection of validated immersible, reusable, semi-critical, heat-sensitive medical devices. It automatically mixes the Part A and Part B solutions, high level disinfects the load during a controlled cycle, and rinses the load. The wash phase of the enspire 300 Series Automated Endoscope Reprocessor System cycle uses only Revital-Ox 2X Concentrate Enzymatic Detergent to perform cleaning.

The Revital-Ox PA High Level Disinfectant (HLD) is a two-part solution, which, when mixed, is intended to provide high-level disinfection of validated immersible, reusable, semi-critical, heat sensitive medical devices including, but not limited to, flexible endoscopes and non-channeled naso-endoscopes, when used in the enspire 300 AER.

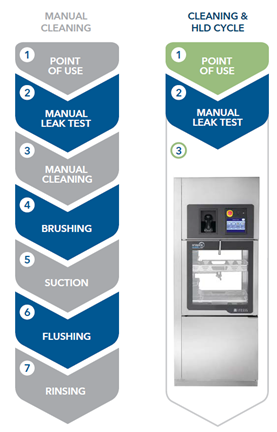

manual vs automated cleaning of endoscopes

Why the enspire™ 300 Series Automated Endoscope Reprocessor

Pass-Thru Workflow: Meets ANSI/AAMI ST91:2021 and AORN recommendations of unidirectional processing procedures and separate spaces for endoscope reprocessing.

Single-Sided Workflow: If a pass-thru workflow is not possible at this time, the enspire 300 Series AER can be used as a single-sided system, allowing you to activate the other door when the construction budget allows, while still meeting the recommendations of unidirectional processing.

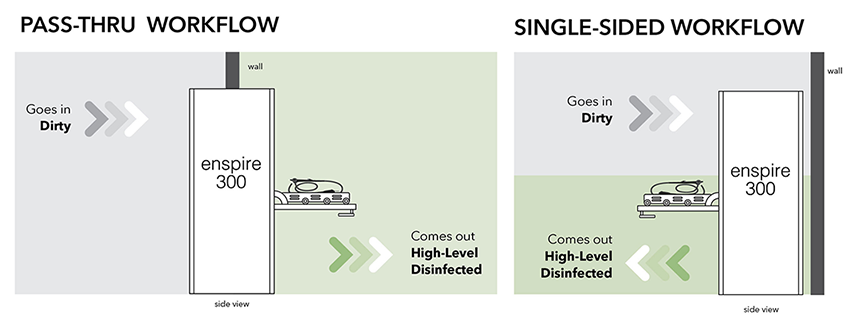

enspire 300 workflow

Improves workflow efficiency with:

  • Channel Monitoring detects partial or full channel blockage or challenges with adapter connections by sensing proper flow rates inside scope channels
  • In-Cycle Chemical Indicator eliminates the extra step of collecting HLD solution and measuring MRC
  • On-screen instructions guide users through start-up, chemistry and filter changes, and the device profiling process
  • LED Status Lights allow users to view the system status from a distance

Equipment Specifications

  • Exterior Dimensions: 31 1/2" x 28 9/16” x 78 1/16" (800 x 725 x 1982 mm)
  • Electrical: 208V, 60Hz, 3-Ph or 460-480V, 60Hz, 3-Ph
  • Exhaust: Vented or Non-Vented



*Does not apply to duodenoscopes.

REQUEST A QUOTE
Go to Top of Page


Device Compatibility Matrix

Confirm that your medical devices and accessories are compatible with processing in the enspire 300 Automated Endoscope Reprocessor.

SEARCH FOR MY DEVICES

Go to Top of Page


Shop Now

Chemistry

Product Number Description
4453AW Revital-Ox PAA HLD Part A
4454AW Revital-Ox PAA HLD Part B
2D99T4 Revital-Ox 2X Concentrate Enzymatic Detergent

Chemical Indicator

Product Number Description
PCC081 Revital-Ox HLD PAA Chemical Indicator

Filters

Product Number Description
A1501 Pre-Filter A
A1562 Pre-Filter B
A1567 Dual Pre-Filter A&B Kit
A1530 MaxLife Filter
Go to Top of Page


Literature

TECH DATA SHEET
Document # Document Title
ENSPIRE 300 - TECH DATA SHEET (FR)
ENSPIRE 300 -TECH DATA SHEET (EN)
OPERATORS MANUAL
Document # Document Title
ENSPIRE 300 - OPERATOR MANUAL (FR)
ENSPIRE 300 SERIES AUTOMATED ENDOSCOPE REPROCESSOR
TECHNICAL MONOGRAPH
Document # Document Title
TECHNICAL DATA MONOGRAPH: ENSPIRE 300 SERIES AUTOMATED ENDOSCOPE REPROCESSOR (EN)
TECHNICAL DATA MONOGRAPH: ENSPIRE 300 SERIES AUTOMATED ENDOSCOPE REPROCESSOR (FR)
SDS
Document # Document Title
REVITAL-OX PAA HLD SOLUTION PART A-SDS-UNITED STATES
REVITAL-OX PAA HLD SOLUTION PART A-SDS-CANADIAN
REVITAL-OX PAA HLD SOLUTION PART B-SDS-UNITED STATES
REVITAL-OX PAA HLD SOLUTION PART B-SDS-CANADIAN
REVITAL-OX PAA HIGH LEVEL DISINFECTANT CHEMICAL INDICATOR-SDS-UNITED STATES
LABELS
Document # Document Title
REVITAL-OX PAA HLD SOLUTION PART A-LABEL
REVITAL-OX PAA HLD SOLUTION PART B-LABEL
WALL CHARTS
Document # Document Title
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 CONNECTOR - WALL CHART (EN, FR)
ENSPIRE 300 AER DEVICE PROFILING WALL CHART
BROCHURE
Document # Document Title
ENSPIRE 300 AER BROCHURE
ENSPIRE 300 AER BROCHURE
ENSPIRE 300 AER BROCHURE
QUICK START GUIDE
Document # Document Title
ENSPIRE 300 AER REORDER GUIDE
ENSPIRE 300 AER REORDER GUIDE (FRANCE)
