Lateral Brace Assemblies (Pair)

Lateral Brace Assemblies (Pair)

  • 7" contoured, padded body support
  • Horizontal and vertical padded support positioning
  • Horizontal and vertical posts with angulation locking knobs for versatile positioning
  • Universal compatibility to surgical table siderails

REQUEST A QUOTE

Order Number: BF602, Lateral Brace Assemblies (Pair)

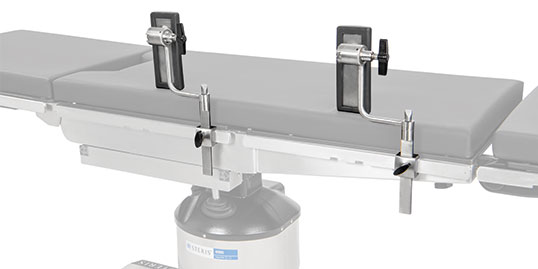

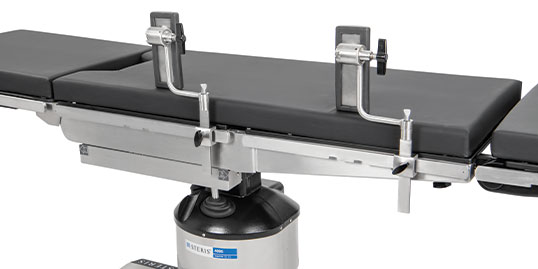

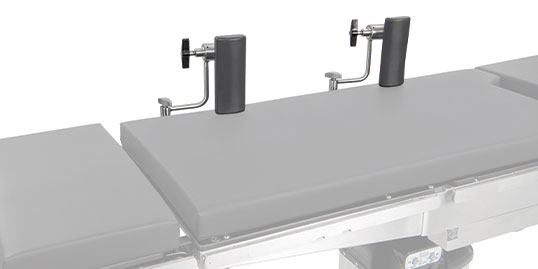

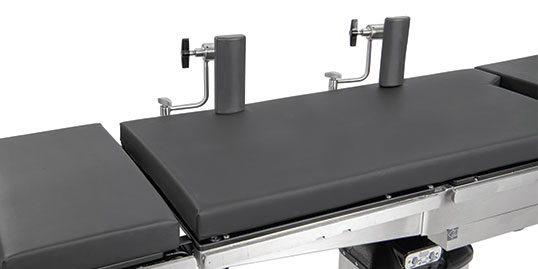

Lateral Brace Assemblies, sold as a pair, consist of a flat bar post for attachment and vertical height adjustment, a horizontal extension with angulation knob for midline positioning, and a horizontal and vertical angulation knob for the padded, gently contoured, body support. A pair of accessory clamps (BF133 Siderail Locks or BF161 Sure Socket XL) sold separately.

Table Compatibility

Compatible with all surgical tables equipped with siderails or accessories with siderails.

Compatible with accessories clamps that accept flat, rectangular bar posts.

Dimensions:

3" x 7" (76-mm x 178-mm) padded support, horizontal and vertical extension 7" adjustment, and 4 1/4" vertical flat bar post

Weight Capacity:

638 lbs (288 kg) direct weight load

Not manufactured with natural rubber latex

Required Accessories:

BF133 - Siderail Locks (pair)
BF43 - MultiAccessory Clamp (pair)
BF161 - Sure Socket XL (sold as each units - qty 2 required)

Required Accessories

Siderail Locks (Pair)

  • Accepts flat-bar table accessories
  • Allows for horizontal and vertical positioning of table accessories
  • Constructed of durable cast metal clamp and impact resistant plastic knob

Multi-Accessory Clamp (Pair)

  • Accepts table accessories with round, square and rectangular bar posts
  • Allows for horizontal, vertical, and full rotation positioning of table accessories
  • Independent controls for attachment to rail, height and rotation

Sure Socket XL

  • Dual receptacle accepts both round and flat posts for enhanced functionality and versatility
  • Easy snap on action anywhere along the siderail
  • Allows for 360° rotational positioning of table accessories
