Harmony iQ® 2800 Integration System

  • Perform two-touch routing of up to 8 devices to 8 destinations
  • Control your integration with a user-friendly touch panel interface
  • Perform HD and 4K video routing
  • Capture and record surgical video in high definition
  • Add optional collaboration tools such as room-to-room communication, conferencing and remote image review.
  • Locate the compact integration base unit on or under a desk.

CONTACT US

OR Integration Systems for Complex, Challenging Environments

The Harmony iQ® 2800 Integration System meets the needs of mid-complexity ORs looking to improve workflow through centralized routing, visualization and image management, and collaboration tools.

The Harmony iQ® 2800 Integration System is a compact and easy-to-use solution to meet the demands of mid-complexity OR environments. From one intuitive touch panel control interface, clinical staff can easily and quickly support the effective performance of every procedure: easily connecting and routing up to 8 video sources, controlling other OR technologies, capturing and recording video in High Definition, and collaborating with remote experts.

  • HD and 4K video routing offers the entire surgical team visibility to critical information from up to 8 devices.
  • Universal ports allow seamless connection of portable and fixed equipment in the OR with a single universal connection, regardless of the type of device.
  • Control of connected technologies like PC computers, surgical lights and camera, and the STERIS Free5® Camera System, from the touch panel promotes efficient and prompt reaction to procedure events.
  • VuCapture® Digital Recording System delivers reliable HD capture and recording capabilities.
  • Picture-in-picture visualization of two sources on one screen supports at-a-glance comparison.
  • Harmony iQ Perspectives® Image Management System – supports later review of surgical images and recordings, and exports media to the Electronic Medical Record (EMR).
  • Call and Connect communication offerings deliver real-time high quality audio and video communication from the OR, helping surgical teams collaborate.
  • SignatureSuite relaxing multimedia experience creates a calming environment for patients, while custom presets simplify workflow for improved productivity and staff satisfaction.
  • A future-ready fiber optic infrastructure supports high-bandwidth HD and 4K signals to meet our Customers current and future needs.
  • A low-profile and compact design fits on a desk or underneath, reducing clutter and keeping OR traffic flow unobstructed.

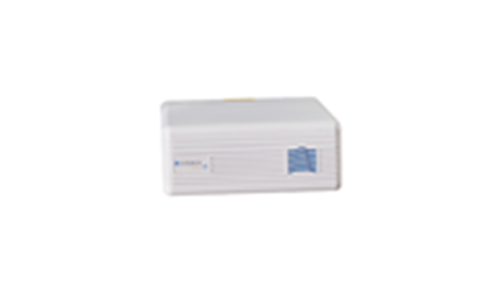

Harmony iQ 2800 Series Integration System's Base Unit

Optional Device Control

STERIS surgical lights, STERIS monitors, Music player, Room camera, In-light camera

Video Inputs (sources)

Up to 8

Destinations

Up to 8

Width x height x depth (in-wall mounted)

14 in. x 5.75 in. x 14.875 in.

Power Supply

Maximum Wattage 250 W; Typical Wattage 160 W during full operation

Typical Heat Load

1000 BTU/hour for the 2800



Harmony iQ 21.5" Optical Touchpanel Monitor

Width x height x depth

21.2 in. x 12.9 in. x 2.3 in.

Weight

12.5 lb (7.5 kg)

The Harmony iQ | BDV Integration Systems' bright, 21.5" surgical grade optical touch panel monitor controls the system with the touch of a finger.

The Harmony iQ | BDV Integration Systems' touch panel special features include:

  • Supports control of connected PCs at the nurse desk, saving desktop space
  • Video preview to see what you're routing before sending it
  • One touch from preview mode to full screen and back
  • Optical touch technology greatly improves tactile response
  • Rugged, impact-resistant design suited for the demanding OR environment
  • Sealed construction supports OR disinfection programs

Visualization

Vividimage® D Surgical Grade Monitors

  • 27" high definition color surgical display
  • VectorSharp® image enhancement software
  • Glare-free image clarity for enhanced depth perception

Vividimage® W High-Definition Wall Displays

  • 42", 50" and 55” Wall Display options
  • Hospital and Medical-Grade varieties
  • Device (on/off) control streamlines operation

Connectivity

Harmony® ConnectPoint Video Connectivity System

  • Harmony ConnectPoint systems provide power and video signal connections from a flexible arm attached to any STERIS surgical lighting system

Surgical Lighting Systems

HarmonyAIR® M-Series Surgical Lighting System

  • Pure, white brilliance
  • Superior color rendition
  • Designed to grow with you

HarmonyAIR® G-Series Surgical Lighting System

  • Pure, white brilliance
  • Superior color rendition
  • Suspensions to fit any room configuration

FREE5® Camera System

  • Allows surgeons to view and record the surgical site from virtually any orientation or angle

Perioperative Solutions

RealView® Visual Workflow Management Software

  • See rooms, patients and procedures in real-time
  • Respond immediately to add-on cases, unexpected delays, or cancellations
  • Increase productivity and OR utilization

S.A.F.E. Situational Awareness for Everyone® Display

  • Increase patient safety in the OR
  • Avoid costs associated with adverse events
  • Eliminate communication bottlenecks
  • Increase OR and staff utilization and efficiency

Harmony iQ Perspectives® Image Management System

  • Secure, access-controlled environment for managing uncompromised 1080p HD video captured during surgical procedures
